Front Seat Control Switch: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

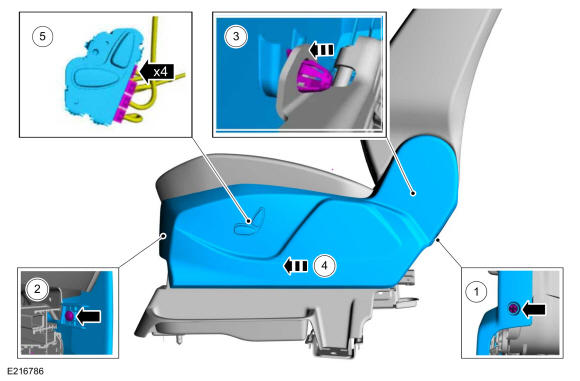

1. 1. Remove the screw.

      Torque: 27 lb.in (3 Nm)

   2. Remove the screw.

      Torque: 27 lb.in (3 Nm)

   3. Pull the side shield to release it from the backrest.
   4. Slide the side shield forward.
   5. Disconnect the power seat electrical connector and remove the side shield.

   Courtesy of FORD MOTOR COMPANY

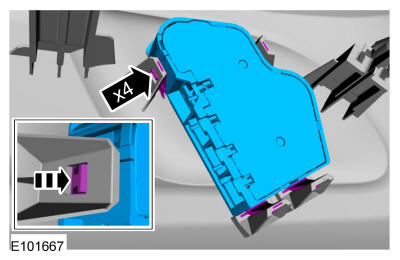

2. Release the locking clips and remove the seat control switch.

Courtesy of FORD MOTOR COMPANY
