Solenoid Body Leadframe: Installation

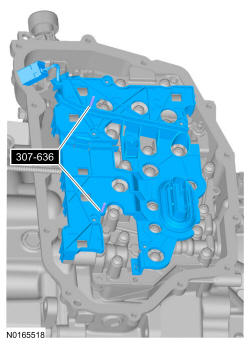

  1. Install 307-636 in the solenoid body to align the leadframe for installation.
    GFD341204Courtesy of FORD MOTOR COMPANY

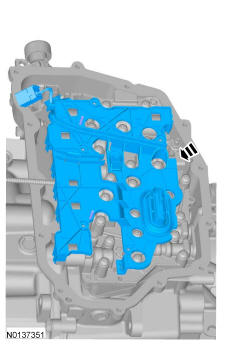

  2. Position the leadframe on the 307-636 and carefully install the leadframe by pushing straight down into the solenoids.
    GFD341205Courtesy of FORD MOTOR COMPANY
  3. Install the leadframe screws.

    • Tighten to 3.5 Nm (31 lb.in)

    GFD341206Courtesy of FORD MOTOR COMPANY
  4. Connect the OSS sensor electrical connector.
    GFD341185Courtesy of FORD MOTOR COMPANY
  5. Connect the TR sensor electrical connector.
    GFD341162Courtesy of FORD MOTOR COMPANY
  6. Install the main control-to-cover seal.
    GFD341186Courtesy of FORD MOTOR COMPANY
  7. Install the main control cover. Refer to Main Control Cover .
