Intermediate Clutch System

For intermediate (2, 6) clutch operation, REFER to Automatic Transmission .

Courtesy of FORD MOTOR COMPANY

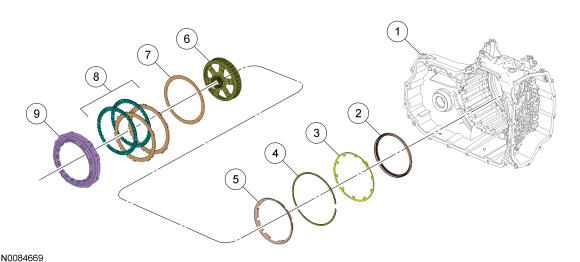

Item	Part Number	Description
1	7005	Transmission case
2	7E005	Intermediate clutch piston
3	7B070	Intermediate clutch piston return spring
4	7D483	Intermediate clutch piston return spring snap ring
5	7E005	Intermediate clutch apply ring
6	7A019	Rear planetary sun gear and shell assembly
7	7E085	Intermediate clutch wave spring
8	7B164	Intermediate clutch assembly
9	7A089	Low/OWC

Condition	Possible Sources	Action
Intermediate (2, 6) clutch does not apply	Solenoid filter blocked to SSC	REFER to Solenoids .
SSC mechanically stuck OFF		INSTALL a new SSC. REFER to Solenoids .
Intermediate (2, 6) clutch regulator valve stuck OFF		DISASSEMBLE, CLEAN and INSPECT the intermediate (2, 6) clutch regulator valve. If bore or valve is damaged, INSTALL a new main control. REFER to Main Control -- Overhaul .
SSC SIG, CB26, CB26FD/CB1234FD hydraulic circuits blocked/leaking		DISASSEMBLE and INSPECT the main control and separator plate passages for debris/blockage. CLEAN as necessary. REFER to Main Control -- Overhaul .
CB26 supply hydraulic circuit blocked or leaking		DISASSEMBLE and INSPECT the transmission cover passages for debris/blockage. CLEAN as necessary. REFER to Main Control -- Overhaul .
Rear planetary sun gear and shell assembly		INSPECT the sun gear and shell for wear and damage. INSTALL new components as necessary. REFER to Transaxle -- Overhaul .
Intermediate (2, 6) clutch friction plates		DISASSEMBLE and INSPECT the intermediate (2, 6) clutch friction and steel plates. INSTALL new components as necessary. REFER to Transaxle -- Overhaul .
Intermediate (2, 6) clutch piston seal leakage		REPLACE the intermediate (2, 6) clutch piston and seals. REFER to Transaxle -- Overhaul .
Intermediate (2, 6) clutch always applied	Solenoid filter seal damaged at SSC	REFER to Solenoids .
SSC mechanically stuck ON		INSTALL a new SSC. REFER to Solenoids .
Intermediate (2, 6) clutch regulator valve stuck ON		DISASSEMBLE, CLEAN and INSPECT the intermediate (2, 6) clutch regulator valve and bias spring. If bore or valve is damaged, INSTALL a new main control. REFER to Main Control -- Overhaul .
SSC SIG, CB26, CB26FD/CB1234FD hydraulic circuits blocked/leaking		DISASSEMBLE and INSPECT the main control valve body and separator plate passages for leakage. CLEAN as necessary. REFER to Main Control -- Overhaul .
Rear planetary sun gear and shell assembly		INSPECT the sun gear and shell for damage that would prevent free rotation. INSTALL new components as necessary. REFER to Transaxle -- Overhaul .
Intermediate (2, 6) clutch friction plates		DISASSEMBLE and INSPECT the intermediate (2, 6) clutch friction and steel plates. INSTALL new components as necessary. REFER to Transaxle -- Overhaul .
Intermediate (2, 6) clutch piston return spring.		INSPECT the return spring for damage. INSTALL new components as necessary. REFER to Transaxle -- Overhaul .
Intermediate (2, 6) clutch delayed/soft/slipping apply	Incorrect Solenoid Body Strategy programmed into PCM	REFER to Solenoid Body Strategy Download .
Solenoid filter seal damaged at SSC		REFER to Solenoids .
SSC mechanically sticking		INSTALL a new SSC. REFER to Solenoids .
Intermediate (2, 6) clutch regulator valve sticking		DISASSEMBLE, CLEAN and INSPECT the intermediate (2, 6) clutch regulator valve. If bore or valve is damaged, INSTALL a new main control. REFER to Main Control -- Overhaul .
SSC SIG, CB26, CB26FD/CB1234FD hydraulic circuits blocked/leaking		DISASSEMBLE and INSPECT the main control and separator plate passages for debris/blockage. CLEAN as necessary. REFER to Main Control -- Overhaul .
CB26 supply hydraulic circuit blocked or leaking		DISASSEMBLE and INSPECT the transmission cover passages for debris/blockage. CLEAN as necessary. REFER to Main Control -- Overhaul .
Intermediate (2, 6) clutch friction plates		DISASSEMBLE and INSPECT the intermediate (2, 6) clutch friction and steel plates. INSTALL new components as necessary. REFER to Transaxle -- Overhaul .
Intermediate (2, 6) clutch piston seal leakage		REPLACE the intermediate (2, 6) clutch piston and seals. REFER to Transaxle -- Overhaul .
Intermediate (2, 6) clutch harsh apply	Incorrect Solenoid Body Strategy programmed into PCM	REFER to Solenoid Body Strategy Download .
SSC mechanically sticking		INSTALL a new SSC. REFER to Solenoids .
Intermediate (2, 6) clutch regulator valve sticking		DISASSEMBLE, CLEAN and INSPECT the intermediate (2, 6) clutch regulator valve and bias spring. If bore, valve or spring is damaged, INSTALL a new main control. REFER to Main Control -- Overhaul .
SSC SIG, CB26, CB26FD/CB1234FD hydraulic circuits blocked/leaking		DISASSEMBLE and INSPECT the main control valve body and separator plate passages for debris/blockage. CLEAN as necessary. REFER to Main Control -- Overhaul .
Intermediate (2, 6) clutch friction plates		DISASSEMBLE and INSPECT the intermediate (2, 6) clutch friction and steel plates. INSTALL new components as necessary. REFER to Transaxle -- Overhaul .
Intermediate (2, 6) clutch piston return spring		INSPECT the return spring for proper installation and damage. INSTALL new components as necessary. REFER to Transaxle -- Overhaul .
