Input Shaft
The input shaft is part of the direct/O/D clutch assembly and is splined to the torque converter turbine and the center planetary sun gear. The input shaft transfers power from the torque converter to the rear planetary gearset through the center planetary sun gear and the direct (3, 5, R) and O/D (4, 5, 6) clutches.

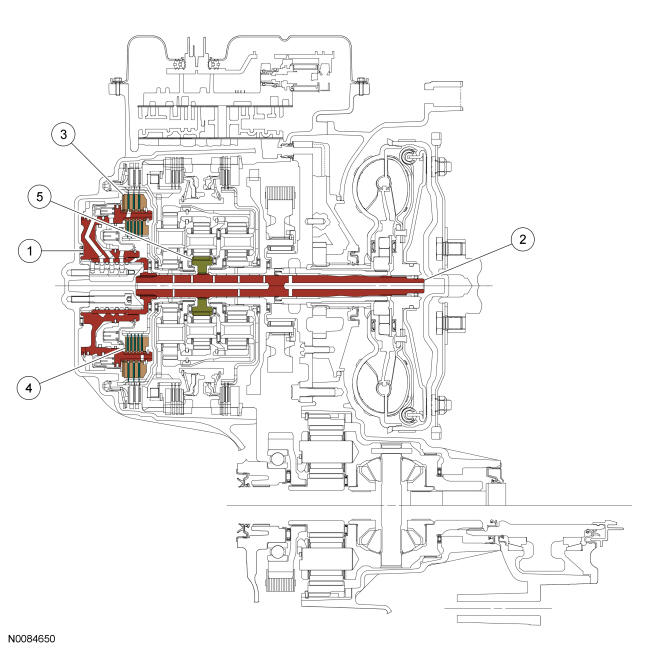

Input Shaft Cutaway View

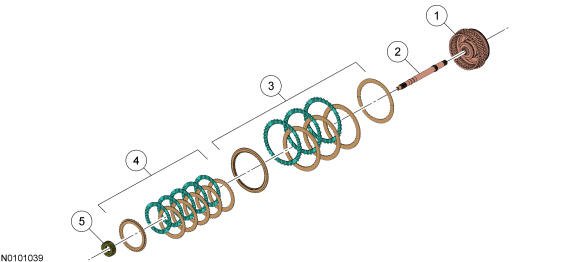

Input Shaft
| Item | Part Number | Description |
|---|---|---|
| 1 | 7G384 7G384 | Direct (3, 5, R)/ O/D (4, 5, 6) clutch hub |
| 2 | 7F213 7F213 | Input shaft |
| 3 | 7B164 7B164 | Direct (3, 5, R) clutch |
| 4 | 7B164 7B164 | O/D (4, 5, 6) clutch |
| 5 | 7D491 7D491 | Center planetary sun gear |
