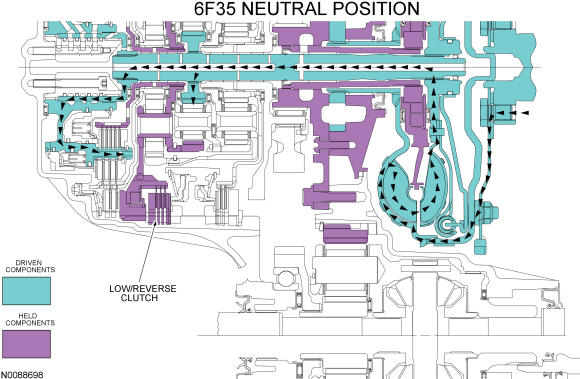

System Operation: Neutral: Powerflow

With the selector lever in NEUTRAL, the low/reverse clutch holds the rear planetary carrier/center ring gear stationary.
The turbine shaft drives the center sun gear.

Courtesy of FORD MOTOR COMPANY
