Fuse And Relay Information

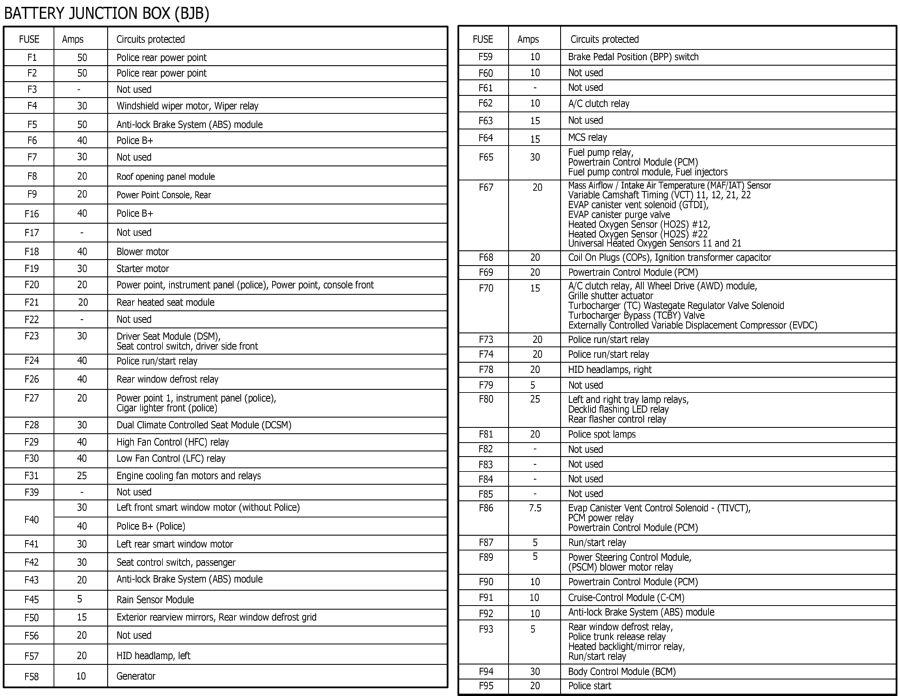

Fig 1: Battery Junction Box Legend
GFDWR30941Courtesy of FORD MOTOR COMPANY

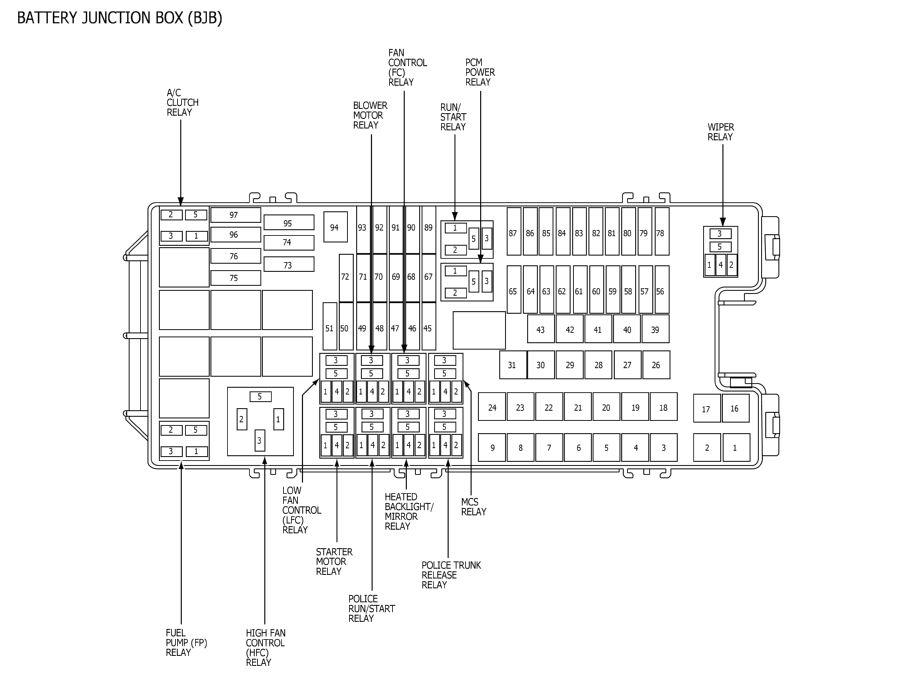

Fig 2: Battery Junction Box Diagram
GFDWR30944Courtesy of FORD MOTOR COMPANY

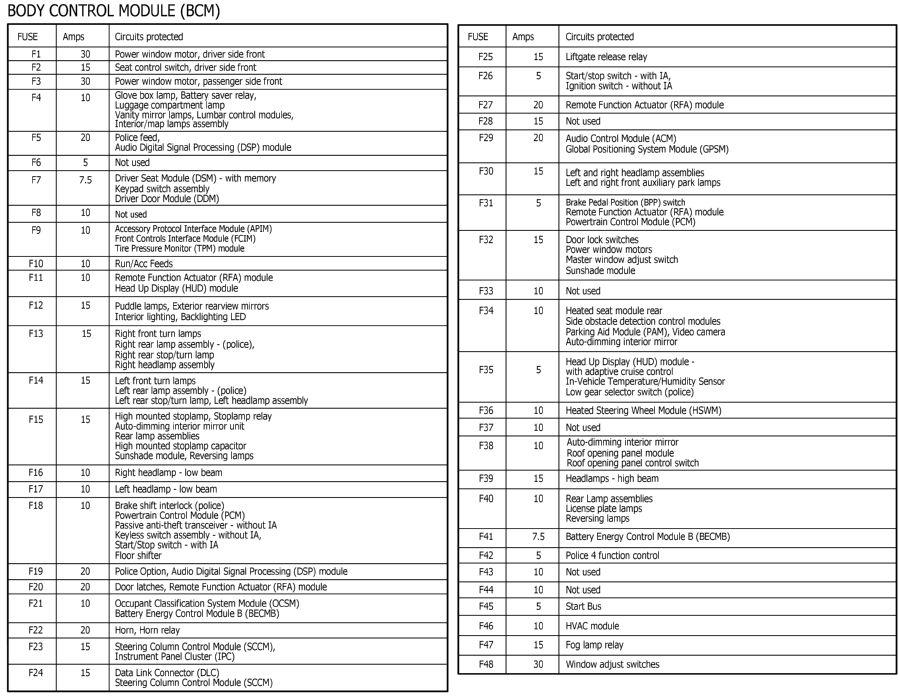

Fig 3: Body Control Module Legend
GFDWR30945Courtesy of FORD MOTOR COMPANY

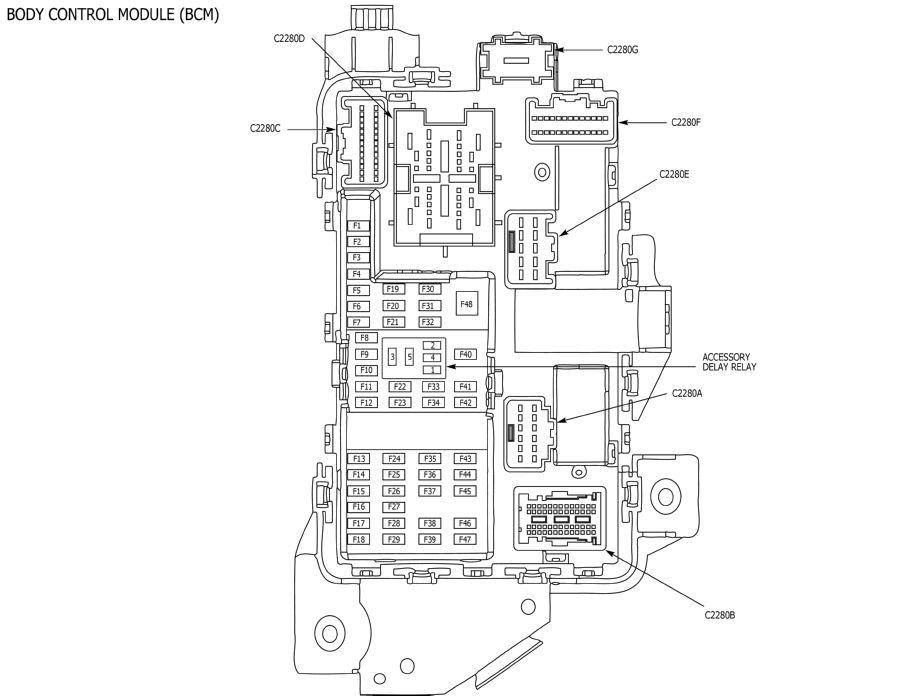

Fig 4: Body Control Module Diagram
GFDWR30942Courtesy of FORD MOTOR COMPANY

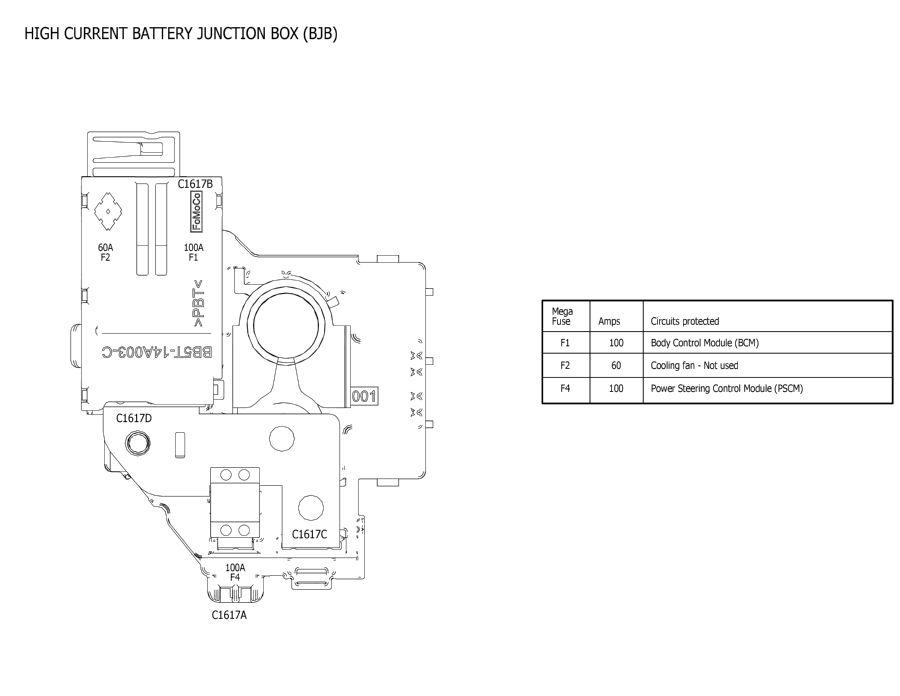

Fig 5: High Current Battery Junction Box Legend & Diagram
GFDWR30946Courtesy of FORD MOTOR COMPANY

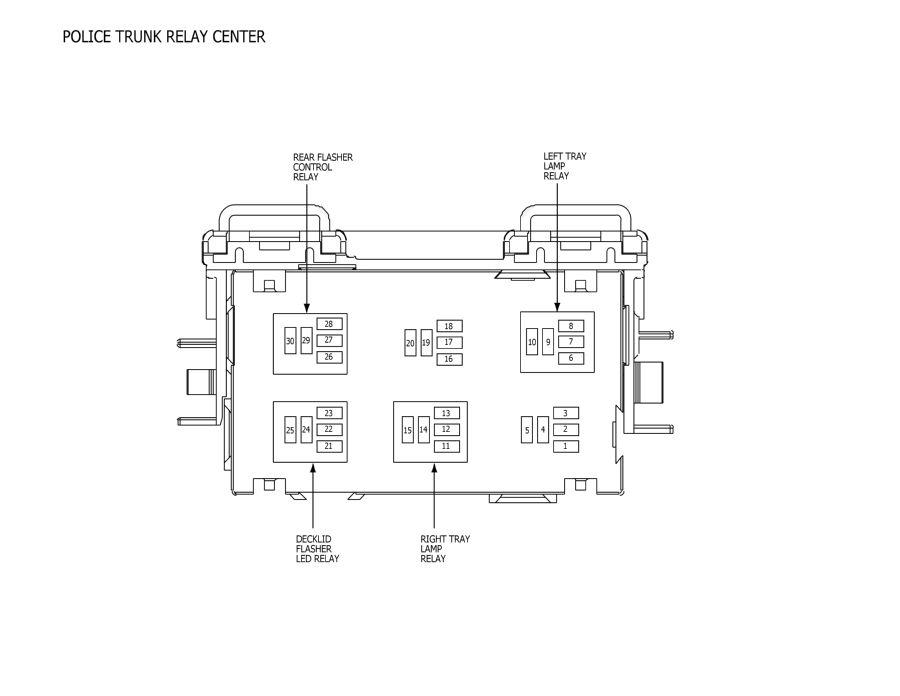

Fig 6: Police Trunk Relay Center Diagram
GFDWR30943Courtesy of FORD MOTOR COMPANY
