Valve Seals: Installation

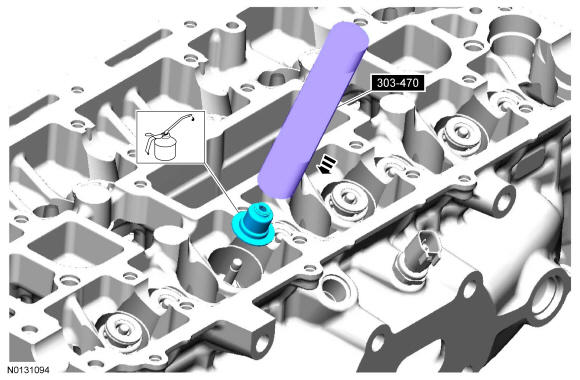

  1. NOTE: Lubricate the valve seal with clean engine oil prior to installing.

    Using the Valve Stem Oil Seal Installer, install the valve seal.

    GFD339366Courtesy of FORD MOTOR COMPANY
  2. Install the valve spring. For additional information, refer to Valve Springs .
