Oil Pump: Installation

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
NOTE: Clean the oil pump and cylinder block mating surfaces with metal surface prep.

NOTE: Some engines may not be equipped with an oil pump mounting gasket from the factory. When assembling components, always install a gasket. Adding a gasket is transparent to oil pump fit and function.

Install the oil pump assembly. Tighten the 4 bolts in the sequence shown in 2 stages:
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten to 20 Nm (177 lb-in).
Fig 1: Oil Pump Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the oil pump sprocket and bolt.
- Tighten to 25 Nm (18 lb-ft).
Courtesy of FORD MOTOR COMPANY
Install the chain on the oil pump sprocket.

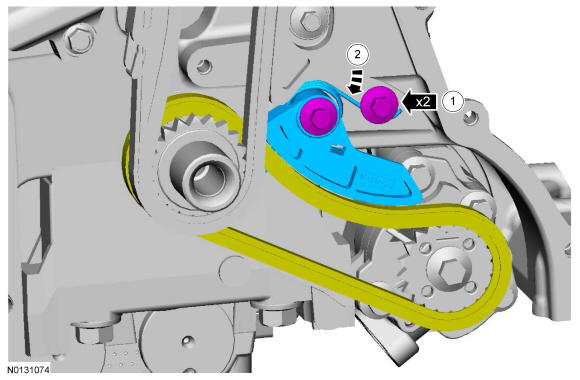

1. Install the tensioner and the 2 shoulder bolts.
  - Tighten to 10 Nm (89 lb-in).
2. Push the tensioner spring down and position the spring under the shoulder bolt.
Courtesy of FORD MOTOR COMPANY

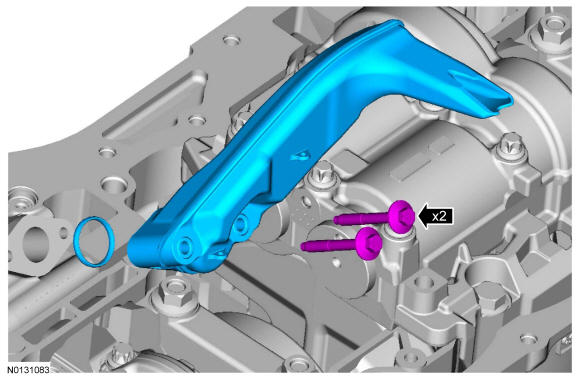

Install the oil pump screen and pickup tube and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).
Courtesy of FORD MOTOR COMPANY
NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

Apply a 3 mm (0.118 in) bead of silicone gasket and sealant to the oil pan-to-engine block mating surface.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the oil pan bolts at this time.

Position the oil pan onto the engine and install the 13 bolts finger-tight.

Courtesy of FORD MOTOR COMPANY
Using a suitable straight edge, align the front surface of the oil pan flush with the front surface of the engine block.

Courtesy of FORD MOTOR COMPANY

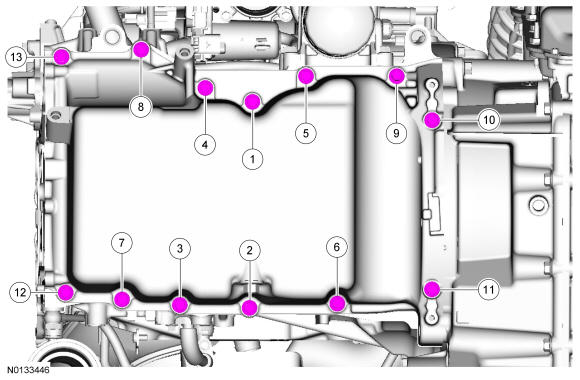

Tighten in the sequence shown to 20 Nm (177 lb-in).

Courtesy of FORD MOTOR COMPANY
Install the oil pan-to-bellhousing bolt.
- Tighten to 48 Nm (35 lb-ft).
Courtesy of FORD MOTOR COMPANY
Install the 3 bellhousing-to-oil pan bolts.
- Tighten to 48 Nm (35 lb-ft).
Courtesy of FORD MOTOR COMPANY
Install the A/C compressor, the 2 bolts and the stud.
- Tighten the bolts to 25 Nm (18 lb-ft) and the stud to 9 Nm (80 lb-in).
- Install the nut and tighten to 25 Nm (18 lb-ft).
- Connect the 2 A/C compressor electrical connectors.
Courtesy of FORD MOTOR COMPANY
Install the A/C tube bracket nut.
- Tighten to 15 Nm (133 lb-in).
Courtesy of FORD MOTOR COMPANY
Using a floor jack and a wooden block, support the engine.
- Remove Engine Support Bar.
Courtesy of FORD MOTOR COMPANY
Install the engine front cover. For additional information, refer to Engine Front Cover .
Fill the engine with clean engine oil.
