Intake Manifold: Removal
- With vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking And Lifting .
- Remove the engine appearance cover from the 4 retainers.
- Loosen the 4 retainers and remove the underbody shield.
- Disconnect the battery ground cable. For additional information, refer to Charging System (Battery, Battery Mounting and Battery Cables) .
- Disconnect the EVAP tube from the CAC outlet tube. For additional information, refer to the quick connect coupling procedure in Fuel System - General Information
.
- Loosen the clamp and disconnect the CAC outlet tube from the TB.
- Disconnect the FRP sensor and MAP sensor electrical connectors.
- Detach the EVAP tube retainer from the intake manifold.
- Detach the heater hose retaining clip.
- Disconnect the EVAP tube from the intake manifold. For additional information, refer to the quick connect coupling procedure in Fuel System - General Information .
- Disconnect the EVAP tube from the EVAP canister purge valve and the ACL outlet pipe. For additional information, refer to the quick connect coupling procedure in Fuel System - General Information
.
- Disconnect the EVAP canister purge valve electrical connector.
- Remove the engine cover mounting pin.
- Remove the EVAP canister purge valve and EVAP tube assembly.
- Detach the 2 fuel tube retainers from the intake manifold.
- Depress the red quick connect locking ring and pull the vacuum tube out of the quick connect fitting.

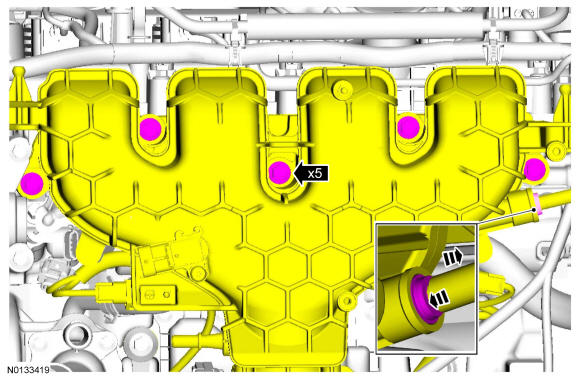

- Remove the 5 intake manifold bolts and position the intake manifold forward.
- Disconnect the TB electrical connector and detach the wiring harness retainer from the TB.
- Detach the 2 KS wiring harness retainers from the intake manifold.
- Disconnect the crankcase ventilation oil separator tube and remove the intake manifold.
