Disassembly And Assembly Of Subassemblies: Piston: Assembly

  1. Align the piston-to-connecting rod orientation marks and position the piston on the connecting rod.
    GFD339501Courtesy of FORD MOTOR COMPANY
  2. NOTE: Lubricate the piston pin and pin bore with clean engine oil.

    Install the piston pin in the piston and connecting rod assembly.

    GFD339502Courtesy of FORD MOTOR COMPANY
  3. Install the 2 new piston pin retainers in the piston.
    GFD339503Courtesy of FORD MOTOR COMPANY
  4. NOTE: Lubricate the piston and the new piston rings with clean engine oil.

    Install the piston rings on the piston.

    GFD339504Courtesy of FORD MOTOR COMPANY

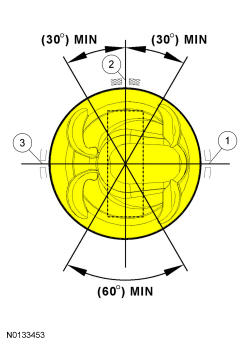

  5. Align the piston rings on the piston.

    1. Upper oil control segment ring gap location
    2. Oil control spacer gap location
    3. Lower oil control segment ring gap location

GFD339505Courtesy of FORD MOTOR COMPANY
