Cylinder Head: Assembly

  1. NOTE: If installing the original valves, make sure the valves are installed in the same position from which they were removed.

    Coat the valve stems with clean engine oil and install the valves.

    GFD339494Courtesy of FORD MOTOR COMPANY

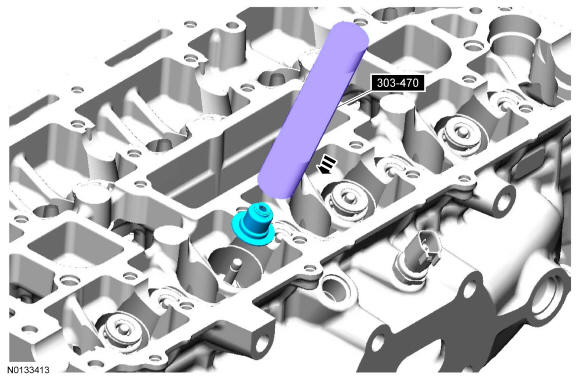

  2. NOTE: Lubricate the valve seal with clean engine oil prior to installing.

    Using the Valve Stem Oil Seal Installer, install the valve seal.

    GFD339495Courtesy of FORD MOTOR COMPANY
  3. NOTE: Check the seating of the valve collet.

    Install the valve spring and the valve spring retainer.

    • Compress the valve spring and install the valve collet using some grease and a small screwdriver.

    GFD339369Courtesy of FORD MOTOR COMPANY
  4. Install a new CHT sensor.

    • Tighten to 11 Nm (97 lb-in).

    GFD339493Courtesy of FORD MOTOR COMPANY
  5. Inspect the gasket and replace if necessary.
    GFD339496Courtesy of FORD MOTOR COMPANY
  6. Install the gasket, coolant outlet and the 3 bolts.

    • Tighten to 10 Nm (89 lb-in).

    GFD339492Courtesy of FORD MOTOR COMPANY
  7. Install the 4 spark plugs.

    • Tighten to 12 Nm (106 lb-in).

    GFD339491Courtesy of FORD MOTOR COMPANY
  8. NOTE: RH shown, LH similar.

    Install the LH and RH engine lift eyes and the 2 bolts.

    • Tighten to 47 Nm (35 lb-ft).

GFD339490Courtesy of FORD MOTOR COMPANY
