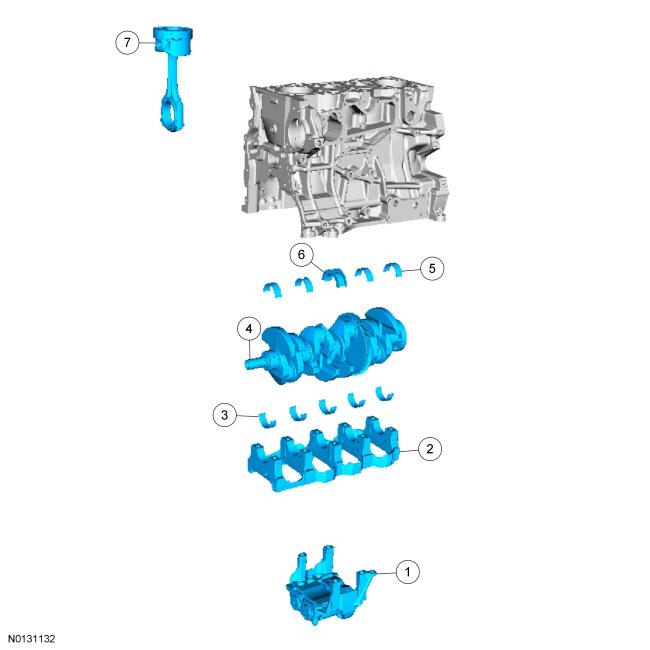

Exploded View Of Engine - Lower Block Components
| Item | Part Number | Description |
|---|---|---|
| 1 | 6K360 | Balance shaft assembly |
| 2 | -- | Main bearing beam (part of 6010) |
| 3 | 6A338 | Crankshaft main bearing beam bearing (5 required) |
| 4 | 6300 | Crankshaft assembly |
| 5 | 6333 | Cylinder block crankshaft main bearing (4 required) |
| 6 | 6337 | Cylinder block crankshaft main thrust bearing |
| 7 | 6110 | Piston (4 required) |
