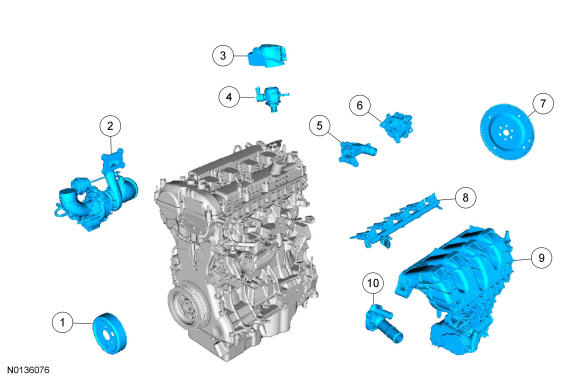

Exploded View Of Engine - External Components

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	8509	Coolant pump pulley
2	6K682	Turbocharger
3	9C374	Fuel injection pump cover
4	9D376	Fuel injection pump
5	8K556	Coolant outlet
6	2A451	Brake vacuum pump
7	6375	Flexplate
8	9H487	Fuel rail
9	9424	Intake manifold
10	8575	Thermostat assembly
