Engine - 2.0L GTDI: Assembly: Engine: Assembly

NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.

NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: If it is necessary to install a new timing chain tensioner, a cast iron tensioner is to be replaced with an aluminum tensioner (6K254). The existing bolts must be discarded and replaced with new bolts (6K282).

NOTE: Assembly of the engine requires various inspections/measurements of the engine components (engine block, crankshaft, connecting rods, pistons and piston rings). These inspections/measurements will aid in determining if the engine components will require replacement. For additional information, refer to Engine System - General Information .

Install the 4 engine piston oil coolers and the 4 bolts.
- Tighten to 10 Nm (89 lb-in).
Courtesy of FORD MOTOR COMPANY
Measure each of the crankshaft main bearing journal diameters in at least 2 directions and record the smallest diameter for each journal.

Courtesy of FORD MOTOR COMPANY
Position the main bearing beam in the engine block with the main bearing beam mounted flush with the rear face of the engine block and install the 10 original main bearing beam bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Tighten the 10 original main bearing beam bolts in the sequence shown in 3 stages.
- Stage 1: Tighten to 5 Nm (44 lb-in).
- Stage 2: Tighten to 25 Nm (18 lb-ft).
- Stage 3: Tighten an additional 90 degrees.
Courtesy of FORD MOTOR COMPANY
Measure each crankshaft block main bearing bore diameter.

Courtesy of FORD MOTOR COMPANY

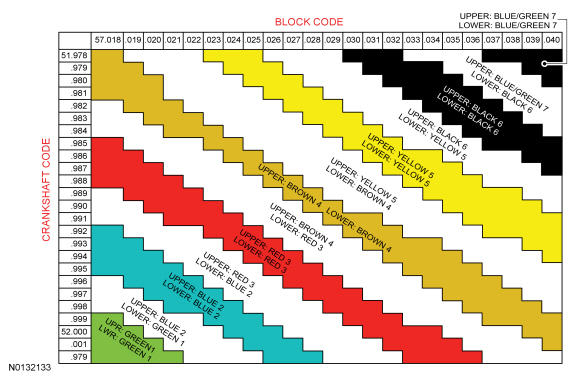

Using the chart, select the crankshaft main bearings.

Courtesy of FORD MOTOR COMPANY
Using the original connecting rod cap bolts, install the connecting caps and bolts and tighten the bolts in 3 stages.
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten to 29 Nm (21 lb-ft).
- Stage 3: Tighten an additional 90 degrees.
Courtesy of FORD MOTOR COMPANY
Measure the connecting rod large end bore in 2 directions. Record the smallest measurement for each connecting rod.
- Remove the bolts and the connecting rod cap.
- Discard the connecting rod cap bolts.
Courtesy of FORD MOTOR COMPANY
Measure each of the crankshaft connecting rod bearing journal diameters in at least 2 directions. Record the smallest measurement for each connecting rod journal.

Courtesy of FORD MOTOR COMPANY
NOTE: Mixed grade bearing pairs (green/blue, blue/red, red/brown) can be installed in upper or lower positions. It is not necessary to maintain specific position.

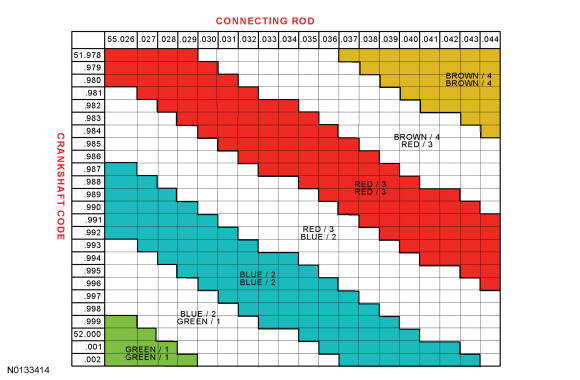

Using the chart, select the correct connecting rod bearings for each crankshaft connecting rod journal.

Courtesy of FORD MOTOR COMPANY
Remove the 10 bolts in the sequence shown and the main bearing beam.
- Discard the main bearing beam bolts.
Courtesy of FORD MOTOR COMPANY
NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

NOTE: The center bulkhead is the thrust bearing.

Lubricate the upper crankshaft main bearings with clean engine oil and install the 5 crankshaft main bearings in the cylinder block.

Courtesy of FORD MOTOR COMPANY
NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

Lubricate the crankshaft main bearings with clean engine oil and install the 5 crankshaft main bearings in the main bearing beam.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate journals on the crankshaft with clean engine oil.

Position the crankshaft in the cylinder block.

Courtesy of FORD MOTOR COMPANY
Lubricate the 10 main bearing beam side fit surfaces and the 5 main bearing beam bearings with clean engine oil.

Courtesy of FORD MOTOR COMPANY
Position the main bearing beam in the engine block with the main bearing beam mounted flush with the rear face of the engine block.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the main bearing beam bolt threads and under the bolt heads with clean engine oil.

NOTE: Position the crankshaft to the rear of the cylinder block, then position the crankshaft to the front of the cylinder block before tightening the main bearing beam bolts.

Install and tighten the 10 new main bearing beam bolts in the sequence shown in 3 stages.
- Stage 1: Tighten to 5 Nm (44 lb-in).
- Stage 2: Tighten to 25 Nm (18 lb-ft).
- Stage 3: Tighten an additional 90 degrees.
Fig 1: Main Bearing Beam Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Using the Dial Indicator Gauge with Holding Fixture, measure crankshaft end play.
1. Position the crankshaft to the rear of the cylinder block.
2. Zero the Dial Indicator Gauge with Holding Fixture.
3. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
4. Acceptable crankshaft end play is 0.220-0.450 mm (0.0087-0.0177 in). If the crankshaft end play exceeds the specified range, install new parts as necessary.
Courtesy of FORD MOTOR COMPANY
NOTE: If reusing the connecting rod bearings, install them in their original positions and orientation as noted during disassembly.

Install the 4 upper bearings in the connecting rods and install the 4 lower bearings into the connecting rod caps.
- Lubricate the connecting rod bearings with clean engine oil.
Courtesy of FORD MOTOR COMPANY
NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.

NOTE: Make sure the piston arrow on top is facing toward the front of the engine.

NOTE: Lubricate the pistons, piston rings and the entire cylinder bores with clean engine oil

Using the Piston Ring Compressor, install the 4 piston and connecting rod assemblies.
- When installing the pistons and connecting rod assemblies, the oil ring gaps must be positioned 60 degrees apart from each other and a minimum of 90 degrees from the expander gap.
- The position of the upper and lower compression ring gaps are not controlled for installation.
Courtesy of FORD MOTOR COMPANY
NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.

NOTE: After installation of each connecting rod cap, rotate the crankshaft to verify smooth operation.

Install the 4 connecting rod caps and the 8 new bolts and tighten the bolts in 3 stages.
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten to 29 Nm (21 lb-ft).
- Stage 3: Tighten an additional 90 degrees.
Courtesy of FORD MOTOR COMPANY
Install the Crankshaft TDC Timing Peg and rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the TDC Timing Peg. The engine is now at TDC.

Courtesy of FORD MOTOR COMPANY
NOTE: Due to the precision interior construction of the balance shaft assembly, it should not be disassembled.

NOTE: The original adjustment shims must be installed in their original positions.

NOTE: Confirm by visual inspection that there is no damage to the balance shaft assembly gear and verify that the shaft turns smoothly. If there is any damage or malfunction, replace the balance shaft assembly.

Install the adjustment shims in their original positions on the seat faces of the balance shaft assembly.
- With the balance shaft assembly marks in the TDC position, slowly install the balance shaft assembly onto the cylinder block to avoid interference between the crankshaft drive gear and the balance shaft assembly driven gear.
Courtesy of FORD MOTOR COMPANY
Install the 4 balance shaft assembly bolts and tighten in the sequence shown in 2 stages.
- Stage 1: Tighten to 25 Nm (18 lb-ft).
- Stage 2: Tighten to 42 Nm (31 lb-ft).
Fig 2: Balance Shaft Assembly Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Remove the Crankshaft TDC Timing Peg.
- Rotate the crankshaft to confirm that there are no meshing problems between the balance shaft assembly gear and the crankshaft gear.
Courtesy of FORD MOTOR COMPANY
Install the Crankshaft TDC Timing Peg and rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the TDC Timing Peg. The engine is now at TDC.
- Remove the TDC Timing Peg.
Courtesy of FORD MOTOR COMPANY
NOTE: Measure the backlash and verify that it is within specified range at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees. It will be necessary to reset the measuring equipment between measurements.

NOTE: The measurement must be taken with the Dial Indicator Gauge with Holding Fixture, a 5-mm Allen wrench and worm clamp set up as shown. Mark the Allen wrench with a file 80 mm (3.149 in) above the driven gear shaft center. Make sure the worm clamp and Allen wrench are not touching the balance shaft assembly housing.

NOTE: For an accurate measurement while measuring the gear backlash, insert a screwdriver as shown into the crankshaft No. 1 crankweight area and set both the rotation and the thrust direction with the screwdriver, using a prying action as shown.

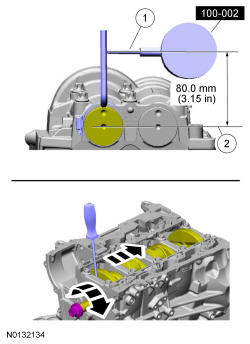

Position the Dial Indicator Gauge with Holding Fixture as shown. Measure the gear backlash.
- Position the Dial Indicator Gauge with Holding Fixture (1) on the Allen wrench 80 mm (3.149 in) above the driven gear shaft center (2) on the balance shaft assembly.
- Rotate the crankshaft clockwise and measure the backlash at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees.
- Backlash specifications are 0.020 to 0.120 mm (0.0008 to 0.0047 in).
- If the backlash exceeds the specified range, carry out the Balance Shaft Backlash procedure. For additional information, refer to Balance Shaft Backlash.
Courtesy of FORD MOTOR COMPANY
Install the Crankshaft TDC Timing Peg and rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the TDC Timing Peg. The engine is now at TDC and must remain at the TDC position until the timing drive components and crankshaft pulley are installed.

Courtesy of FORD MOTOR COMPANY
Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
NOTE: Clean the oil pump and cylinder block mating surfaces with Motorcraft® Metal Surface Prep.

NOTE: Some engines may not be equipped with an oil pump mounting gasket from the factory. When assembling components, always install a gasket. Adding a gasket is transparent to oil pump fit and function.

Install the oil pump assembly.
- Tighten the 4 bolts in the sequence shown in 2 stages.
  - Stage 1: Tighten to 10 Nm (89 lb-in).
  - Stage 2: Tighten to 20 Nm (177 lb-in).
Courtesy of FORD MOTOR COMPANY
Install the oil pump sprocket and bolt.
- Tighten to 25 Nm (18 lb-ft).
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped, the diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.

NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

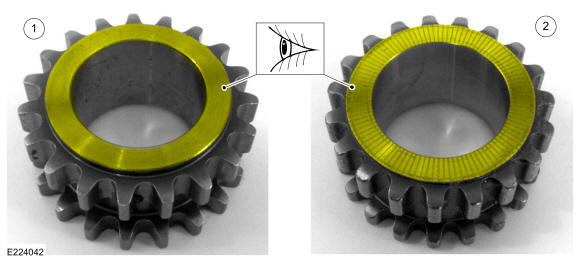

Identify crankshaft sprocket type.
1. Early build engine - Flat faced sprocket (requires diamond washers).
2. Late Build engine - Laser etched sprocket (does not require diamond washers).
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped, the diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.

NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

If equipped, install the diamond washer.

Courtesy of FORD MOTOR COMPANY
Install the crankshaft sprocket.

Courtesy of FORD MOTOR COMPANY

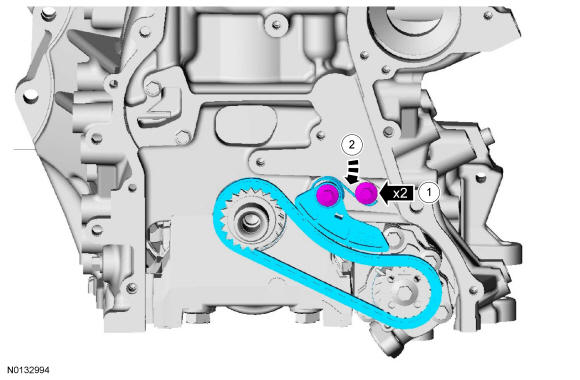

Install the chain on the oil pump sprocket.
1. Install the tensioner and the 2 shoulder bolts.
  - Tighten to 10 Nm (89 lb-in).
2. Push the tensioner spring down and position the spring under the shoulder bolt.
Courtesy of FORD MOTOR COMPANY

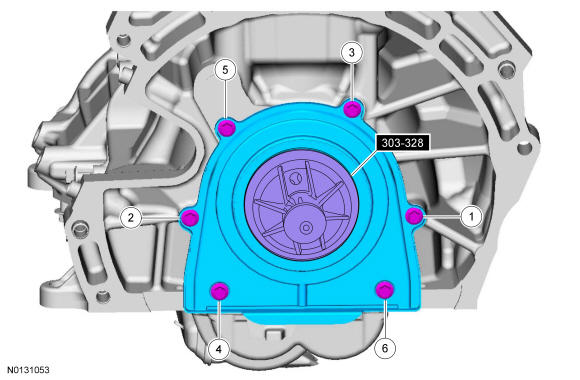

Using the Crankshaft Rear Main Oil Seal Installer, position the crankshaft rear oil seal with retainer plate onto the crankshaft.
- Install the 6 bolts and tighten in the sequence shown to 10 Nm (89 lb-in).
- Remove the Crankshaft Rear Main Oil Seal Installer.
Courtesy of FORD MOTOR COMPANY

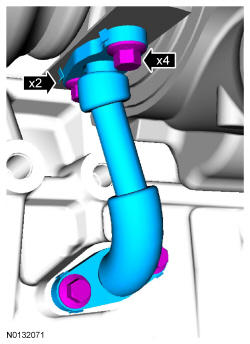

Using a new gasket, install the oil pump screen and pickup tube and the 2 bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

Apply a 3 mm (0.118 in) bead of Silicone Gasket and Sealant to the oil pan-to-engine block mating surface.

Courtesy of FORD MOTOR COMPANY
Position the oil pan onto the engine and install the 13 bolts finger-tight.

Courtesy of FORD MOTOR COMPANY
Using a straight edge, align the front surface of the oil pan flush with the front surface of the engine block.

Courtesy of FORD MOTOR COMPANY

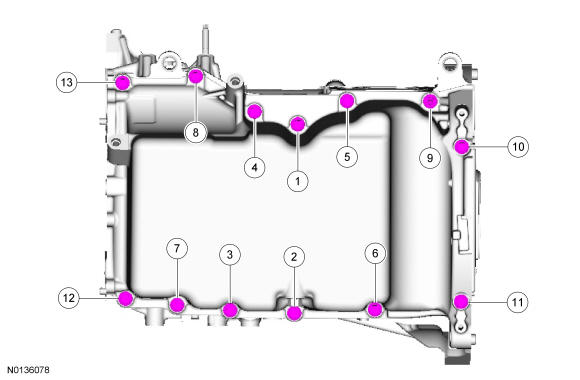

Tighten in the sequence shown to 20 Nm (177 lb-in).

Courtesy of FORD MOTOR COMPANY
Install the 2 cylinder head alignment dowels.

Courtesy of FORD MOTOR COMPANY
Install a new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

Install the cylinder head and the 10 new bolts. Tighten the bolts in the sequence shown in 5 stages.
- Stage 1: Tighten to 7 Nm (62 lb-in).
- Stage 2: Tighten to 15 Nm (133 lb-in).
- Stage 3: Tighten to 55 Nm (41 lb-ft).
- Stage 4: Tighten 90 degrees.
- Stage 5: Tighten an additional 90 degrees.
Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the valve tappets with clean engine oil prior to installing.

Install the 16 valve tappets in their original positions.

Courtesy of FORD MOTOR COMPANY
NOTE: The exhaust camshaft rear bearing cap must be secured within 10 minutes of Gasket Maker application. If the bearing cap is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.

NOTE: Do not allow Gasket Maker to enter the camshaft bearing journal. If Gasket Maker is applied to the camshaft bearing journal, the journal and sealing area must be cleaned with Motorcraft® Metal Surface Prep.

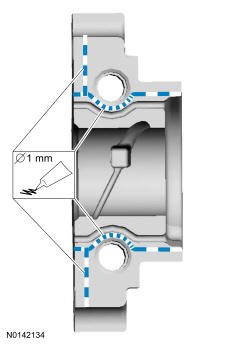

Apply 1 mm (0.039 in) beads of Gasket Maker to the exhaust rear camshaft bearing cap as shown.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the camshafts with the alignment slots in the camshafts lined up so the Camshaft Alignment Plate can be installed without rotating the camshafts. Make sure the lobes on the No. 1 cylinder are in the same position as noted in the removal procedure. Rotating the camshafts when the timing chain is removed, or installing the camshafts 180 degrees out of position can cause severe damage to the valves and pistons.

NOTE: Failure to follow the camshaft tightening procedure can result in damage to the camshafts.

NOTE: Wipe off any excess sealer from the fuel injection pump housing sealing surface of the cylinder head and rear camshaft cap.

NOTE: Lubricate the camshaft journals and camshaft bearing caps with clean engine oil.

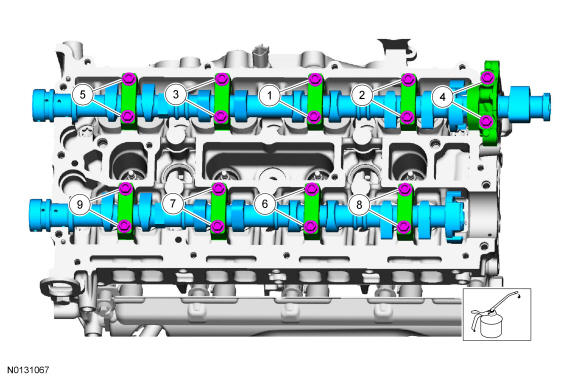

Install the camshafts and bearing caps in their original location and orientation. Tighten the camshaft bearing caps 2 turns at a time in the sequence shown in 2 stages:
- Stage 1: Tighten to 7 Nm (62 lb-in).
- Stage 2: Tighten to 16 Nm (142 lb-in).
Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the camshaft journals and the front camshaft bearing cap with clean engine oil.

Install the front camshaft bearing cap and the 3 bolts. Tighten in the sequence shown in 2 stages:
- Stage 1: Tighten to 7 Nm (62 lb-in).
- Stage 2: Tighten to 16 Nm (142 lb-in).
Courtesy of FORD MOTOR COMPANY
Install the 2 VCT solenoids and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).
Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

Install the Camshaft Alignment Tool into the rear of both of the camshaft slots as shown.
- Tighten the retainer.
Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the camshaft phaser and sprocket bolts at this time.

Install the intake and exhaust camshaft phaser and sprockets.
- Install the 2 bolts finger-tight.
Courtesy of FORD MOTOR COMPANY
Install the timing chain onto the 2 camshaft phaser and sprockets and the crankshaft sprocket.
- Install the timing chain guide and the 2 bolts.
  - Tighten to 10 Nm (89 lb-in).
- Install the timing chain arm.
Courtesy of FORD MOTOR COMPANY

NOTE: If equipped with aluminum timing chain tensioner.

NOTE: If the timing chain tensioner plunger is not pinned in the compressed position, follow the next step.
Reset the timing chain tensioner.
1. Position the timing chain tensioner in a soft-jawed vise.
2. Spread the ends of the ratchet wire clip apart.
3. Using the soft-jawed vise, compress the plunger to the reset position.
4. Install a locking pin in the 2 holes of the timing chain tensioner body to hold the plunger in place.
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with aluminum timing chain tensioner.

NOTE: Do not remove the locking pin until the tensioner bolts are tightened.

Install the timing chain tensioner.
1. Install the bolts.
  - Tighten to 10 Nm (89 lb-in).
2. Remove the locking pin.
Courtesy of FORD MOTOR COMPANY

NOTE: If equipped with cast iron timing chain tensioner.

NOTE: If the timing chain tensioner plunger and ratchet assembly are not pinned in the compressed position, follow the next 4 steps.
NOTE: Do not compress the ratchet assembly. This will damage the ratchet assembly.

Using the edge of a vise, compress the timing chain tensioner plunger.

Courtesy of FORD MOTOR COMPANY
Using a small pick, push back and hold the ratchet mechanism.

Courtesy of FORD MOTOR COMPANY
While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.

Courtesy of FORD MOTOR COMPANY
Install a locking pin into the hole in the tensioner housing to hold the ratchet assembly and the plunger in during installation.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with cast iron timing chain tensioner.

NOTE: Do not remove the locking pin until the tensioner bolts are tightened.

Install the timing chain tensioner and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with cast iron timing chain tensioner.

Remove the locking pin.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not rely on the Camshaft Alignment Tool to prevent camshaft rotation. Damage to the tool or the camshaft can occur.

Using a wrench on the flats of the exhaust camshaft to prevent camshaft rotation, tighten the exhaust camshaft phaser and sprocket bolt.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Tighten an additional 60 degrees.
Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

Using a wrench on the flats of the intake camshaft to prevent camshaft rotation, tighten the intake camshaft phaser and sprocket bolt.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Tighten an additional 60 degrees.
Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.

Apply a 3 mm (0.118 in) bead of Silicone Gasket and Sealant to the sealing surface of the front cover.
- Apply a 2 mm (0.078 in) bead of Silicone Gasket and Sealant to the 5 center sealing surfaces of the front cover.
Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.

Apply beads of silicone gasket and sealant that are 2 mm (0.078 in) in diameter and 5 mm (0.19 in) in length across the cylinder head and cylinder block joint areas.

Courtesy of FORD MOTOR COMPANY
Install the engine front cover and the fasteners and tighten in the sequence shown.
- Tighten bolts 1 through 3 to 48 Nm (35 lb-ft).
- Tighten bolts 4 through 22 to 10 Nm (89 lb-in).
Courtesy of FORD MOTOR COMPANY
NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

NOTE: Lubricate the oil seal with clean engine oil.

Using the Camshaft Front Oil Seal Installer, install the crankshaft front oil seal.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped, the diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.

NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

If equipped, install the diamond washer.

Courtesy of FORD MOTOR COMPANY
NOTE: Apply clean engine oil on the seal contact area before installing.

Position the crankshaft pulley onto the crankshaft and align the TDC guide hole at the 6 o'clock position.

Courtesy of FORD MOTOR COMPANY
NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

Install a standard bolt through the crankshaft pulley TDC guide hole and into the engine front cover guide hole.

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Strap Wrench and the bolt should be installed using hand tools only.

Install a new crankshaft pulley bolt. Use a Strap Wrench to hold the crankshaft pulley and tighten the crankshaft pulley bolt in 2 stages:
- Stage 1: Tighten to 100 Nm (74 lb-ft).
- Stage 2: Tighten an additional 90 degrees.
Courtesy of FORD MOTOR COMPANY
Remove the bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the CKP sensor bolts at this time.

Install the CKP sensor and the 2 bolts.

Courtesy of FORD MOTOR COMPANY
Install the Crankshaft Sensor Alignment Tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel.
- Tighten the 2 bolts to 7 Nm (62 lb-in).
Courtesy of FORD MOTOR COMPANY
Remove the Crankshaft TDC Timing Peg.

Courtesy of FORD MOTOR COMPANY
Remove the Camshaft Alignment Tool.

Courtesy of FORD MOTOR COMPANY
Install the engine plug bolt.
- Tighten to 20 Nm (177 lb-in).
Courtesy of FORD MOTOR COMPANY
Using a wrench on the flats of the intake camshaft to prevent cam rotation, install the brake vacuum pump adapter.
- Tighten to 63 Nm (46 lb-ft).
Courtesy of FORD MOTOR COMPANY
NOTE: The intake camshaft rear bearing cap must be secured within 10 minutes of Gasket Maker application. If the bearing cap is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.

Apply 1 mm (0.039 in) beads of Gasket Maker to the intake rear camshaft bearing cap mating surface as shown.

Courtesy of FORD MOTOR COMPANY
NOTE: Wipe off any excess sealer from the vacuum pump sealing surface of the cylinder head and camshaft cap.

Install the rear intake camshaft cap and the 2 bolts. Tighten the bolts in 2 stages:
- Stage 1: Tighten the bolts to 7 Nm (62 lb-in).
- Stage 2: Tighten the bolts to 16 Nm (142 lb-in).
Courtesy of FORD MOTOR COMPANY
NOTE: Installation of new seals is only required if damaged seals were removed during disassembly of the engine.

Using the VCT Spark Plug Tube Seal Installer and Handle, install new VCT solenoid seals.

Courtesy of FORD MOTOR COMPANY

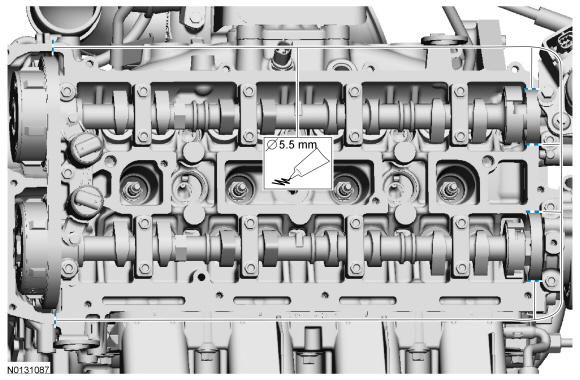

Apply a 5.5 mm (0.216 in) drop of silicone gasket and sealant to the 6 locations shown.

Courtesy of FORD MOTOR COMPANY
NOTE: The valve cover must be secured within 10 minutes of silicone gasket application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with metal surface prep.

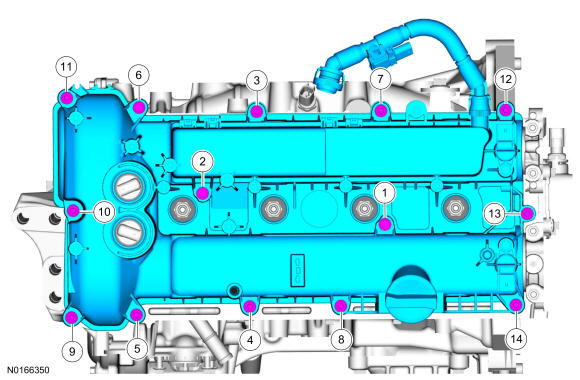

Using a new gasket install the valve cover.
- Tighten in the sequence shown to 10 Nm (89 lb-in).
Courtesy of FORD MOTOR COMPANY
Install the oil level indicator.
- Install the 4 coil-on-plugs and the 4 bolts.
  - Tighten to 8 Nm (71 lb-in).
- Install the CAC intermediate tube mounting bracket, nut and bolt.
  - Tighten to 6 Nm (53 lb-in).
Courtesy of FORD MOTOR COMPANY
Install the vacuum tubes and attach the retainers.

Courtesy of FORD MOTOR COMPANY
Position the wiring harness onto the engine and attach the 8 retainers.
- Connect the 9 wiring harness electrical connectors.
Courtesy of FORD MOTOR COMPANY
Using the crankshaft pulley bolt, rotate the engine clockwise until the fuel injection cam lobe is at zero lift.

Courtesy of FORD MOTOR COMPANY
Inspect the fuel injection pump housing gasket and replace as necessary.

Courtesy of FORD MOTOR COMPANY
Install the fuel injection pump housing and the 4 bolts.
- Tighten to 15 Nm (133 lb-in) plus an additional 60 degrees.
Courtesy of FORD MOTOR COMPANY
NOTE: Apply clean engine oil to the fuel injection pump tappet and to the fuel injection pump housing bore.

Slide the fuel injection pump tappet into the fuel injection pump housing.

Courtesy of FORD MOTOR COMPANY

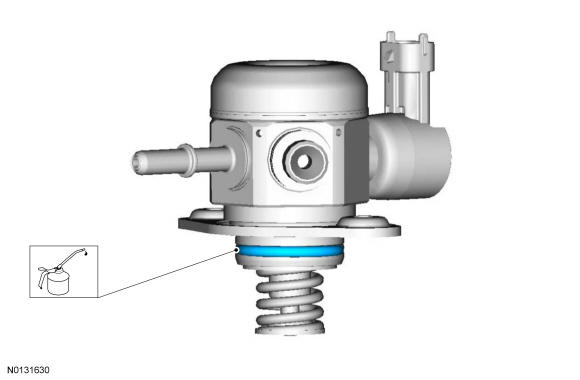

NOTE: Make sure that a new fuel injection pump O-ring seal is installed.

Install a new fuel injection O-ring seal.
- Lubricate the O-ring seal with clean engine oil.
Courtesy of FORD MOTOR COMPANY

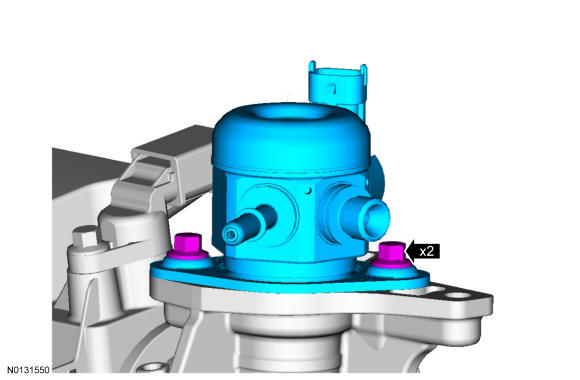

Install the fuel injection pump and loosely install 2 fuel injection pump bolts, alternately tighten each bolt one complete revolution until seated. Tighten the 2 fuel injection pump bolts in the following 2 stages.
- Stage 1: Tighten each bolt to 5 Nm (44 lb-in).
- Stage 2: Tighten each bolt an additional 55 degrees.
Courtesy of FORD MOTOR COMPANY
Install the fuel injection pump bracket and the 2 bolts.
- Tighten to 17 Nm (150 lb-in).
Courtesy of FORD MOTOR COMPANY
Inspect and, if necessary, install a new brake vacuum pump gasket.

Courtesy of FORD MOTOR COMPANY
Install the brake vacuum pump and the 3 bolts.
- Tighten to 10 Nm (89 lb-in).
Courtesy of FORD MOTOR COMPANY
Inspect and, if necessary, install a new thermostat housing gasket.

Courtesy of FORD MOTOR COMPANY

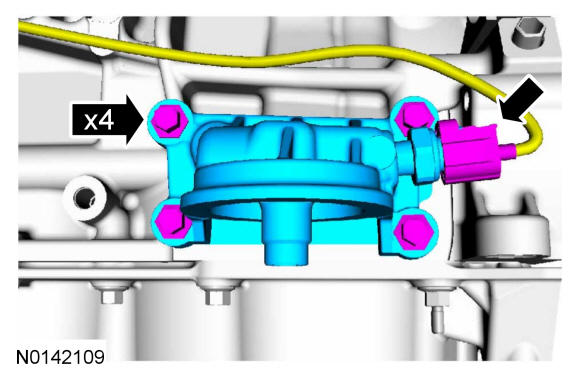

Install the thermostat housing and the 3 bolts.
- Tighten to 10 Nm (89 lb-in).
Courtesy of FORD MOTOR COMPANY
NOTE: Do not use compressed air or the Fuel Injector Brush to clean the tip of the fuel injectors. Failure to follow this instruction may result in damage to the fuel injectors.

NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.

Using the Fuel Injector Brush, clean the fuel injector orifices.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
1. Position the Teflon® seal guide 310-207 (part of the Fuel Injector Seal Installer) on the tip of the fuel injector.
2. NOTE: Once the Teflon® seal is installed on the Arbor, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon® seal.

  NOTE: Make sure that new lower fuel injector Teflon® seals are installed.
3. Using the Pusher Tool 310-207 (part of the Fuel Injector Seal Installer), slide the Teflon® seals off of the Arbor and into the groove on the fuel injectors.
Courtesy of FORD MOTOR COMPANY
NOTE: Install the fuel injectors into the cylinder head within 15 minutes of sizing the seals due to Teflon® seal expansion.
1. NOTE: Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the Teflon® seal.

  Some Teflon® seal massaging with your fingers before the Teflon® seal sizer tool is installed will aid in installing the Teflon® seal sizer tool.
2. Position the Teflon® seal sizer tool 303-1567 with the larger opening towards the Teflon® seal. Push while turning the Teflon® seal sizer tool 180 degrees. Special Tool(s): 303-1567.
3. Once the Teflon® seal sizer tool 303-1567 is installed, check and make sure the Teflon® seal is in the sizing portion of the Teflon® seal sizer tool. After one minute, turn the Teflon® seal sizer tool back 180 degrees and remove.
Courtesy of FORD MOTOR COMPANY
NOTE: Use new fuel injector O-ring seals that are made of special fuel-resistant material. The use of ordinary O-ring seals may cause the fuel system to leak. Do not reuse the O-ring seals.

NOTE: Do not lubricate the new lower Teflon® fuel injector seals.

NOTE: Make sure that new upper fuel injector O-ring seals, new upper fuel injector O-ring seal support rings and new fuel injector retainer clips are installed.

Material: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US).

Courtesy of FORD MOTOR COMPANY
NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

Install the fuel injectors into the fuel rail.

Courtesy of FORD MOTOR COMPANY

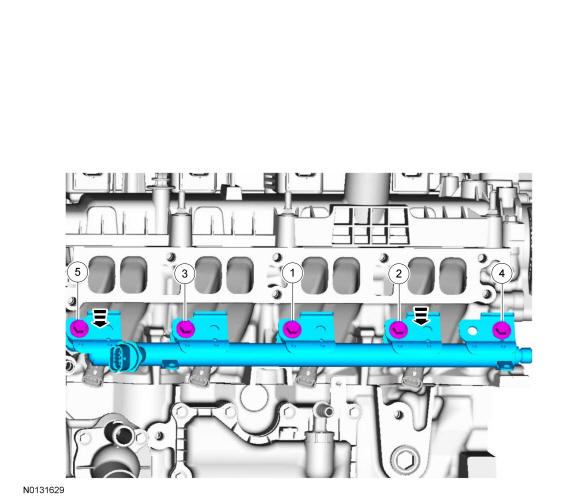

Position the fuel rail and fuel injectors into the cylinder head and push down on the fuel rail face above the injectors.
- Install 5 new bolts and tighten in the sequence shown in 2 stages.
  - Stage 1: Tighten to 8 Nm (71 lb-in).
  - Stage 2: Tighten an additional 26 degrees.
Courtesy of FORD MOTOR COMPANY
Install a new high pressure fuel tube and hand tighten the 2 flare nuts.

Courtesy of FORD MOTOR COMPANY
Loosely install the 2 high pressure fuel tube bracket bolts.

Courtesy of FORD MOTOR COMPANY
Tighten the 2 high pressure fuel tube flare nuts in 2 stages.
- Stage 1: Tighten to 15 Nm (133 lb-in).
- Stage 2: Tighten an additional 30 degrees.
Courtesy of FORD MOTOR COMPANY
Tighten the 2 high pressure fuel tube bracket bolts to 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY
Install the fuel injection pump insulator.
- Connect the fuel injection pump electrical connector.
Courtesy of FORD MOTOR COMPANY
Install the fuel rail insulator and the 2 pin-type retainers.

Courtesy of FORD MOTOR COMPANY
Install the fuel charge wiring harness and connect the 4 fuel injector electrical connectors.

Courtesy of FORD MOTOR COMPANY
Inspect and, if necessary, install a crankcase vent oil separator gasket.

Courtesy of FORD MOTOR COMPANY
Install the coolant bypass hose and the 2 clamps.
- Install the crankcase vent oil separator and the 8 bolts.
  - Tighten to 10 Nm (89 lb-in).
Courtesy of FORD MOTOR COMPANY
NOTE: The forward KS must be installed in the 6 o'clock position and the rearward KS must be installed in the 3 o'clock position as shown in the graphic. Failure to follow these instructions may result in damage to the engine.

Install the 2 KS and the 2 bolts.
- Tighten to 20 Nm (177 lb-in).
- Connect the 2 KS electrical connectors.
- Attach the 2 wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

Visually inspect the intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be re-used.

Courtesy of FORD MOTOR COMPANY
Position the intake manifold and attach the 2 KS wiring harness retainers to the intake manifold.
- Connect the TB electrical connector and attach the wiring harness retainer to the TB.
- Connect the PCV hose.
Courtesy of FORD MOTOR COMPANY

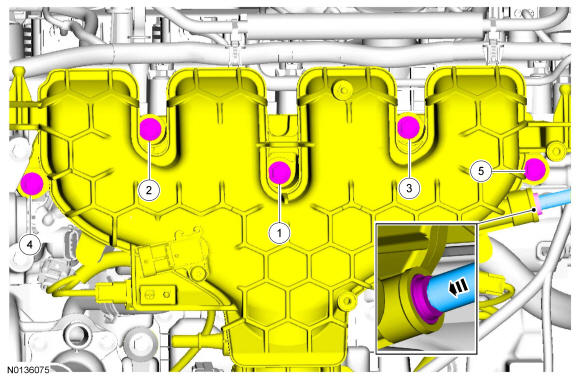

Install the intake manifold and the 5 bolts.
- Tighten in the sequence shown to 18 Nm (159 lb-in).
- Install the vacuum tube into the quick connect coupling.
Courtesy of FORD MOTOR COMPANY
Connect the 2 brake vacuum tube quick connect couplings. For additional information, refer to Fuel System - General Information .

Courtesy of FORD MOTOR COMPANY
Connect the MAP sensor, the FRP sensor and fuel charge harness electrical connectors.

Courtesy of FORD MOTOR COMPANY
Connect the fuel supply tube to the fuel injection pump. For additional information, refer to the quick connect coupling procedure in Fuel System - General Information .
- Attach the 2 fuel tube retainers to the intake manifold.
- Install the fuel jumper tube bolt.
  - Tighten to 8 Nm (71 lb-in).
Courtesy of FORD MOTOR COMPANY

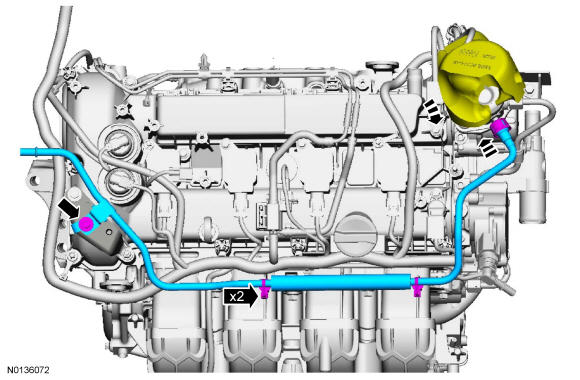

Install the EVAP canister purge valve and tube assembly.
- Connect the EVAP canister purge valve electrical connector.
Courtesy of FORD MOTOR COMPANY
Connect the EVAP tube quick connect coupling. For additional information, refer to the quick connect coupling procedure in Fuel System - General Information .
- Attach the EVAP tube retainer.
Courtesy of FORD MOTOR COMPANY
Using a new gasket, install the oil filter adapter and the 4 bolts.
- Tighten to 25 Nm (18 lb-ft).
- Connect the EOP switch electrical connector.
Courtesy of FORD MOTOR COMPANY
Install the CAC outlet tube and clamp.
- Tighten to 5 Nm (44 lb-in).
- Connect the EVAP tube quick connect coupling. For additional information, refer to the quick connect coupling procedure in Fuel System - General Information .
- Install the heater hose and clamp.
- Attach the heater hose retainer to the intake manifold.
Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the coolant pump O-ring seal with clean engine coolant prior to installation.

Using a new O-ring seal, install the coolant pump and the 3 bolts.
- Tighten to 10 Nm (89 lb-in).
- Install the A/C compressor bracket, the bolt and the nut.
  - Tighten to 25 Nm (18 lb-ft).
Courtesy of FORD MOTOR COMPANY
Install the coolant pump pulley and the 3 bolts.
- Install the accessory drive belt tensioner and the 3 bolts.
  - Tighten to 25 Nm (18 lb-in).
- Install the generator, the bolt and 2 stud bolts.
  - Tighten to 25 Nm (18 lb-in).
Courtesy of FORD MOTOR COMPANY

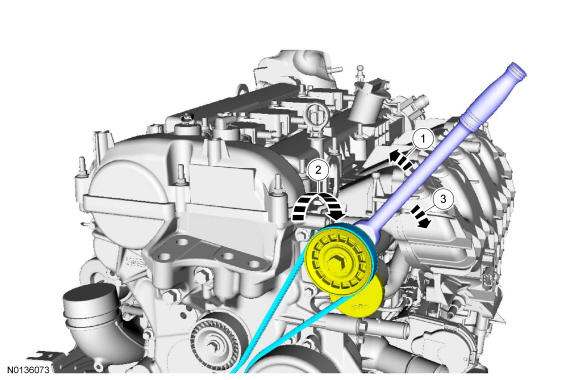

Install the accessory drive belt.

Courtesy of FORD MOTOR COMPANY
Tighten the 3 coolant pump pulley bolts to 20 Nm (177 lb-in).

Courtesy of FORD MOTOR COMPANY
Install the RH halfshaft bracket and the 2 bolts.
- Tighten to 25 Nm (18 lb-in).
Courtesy of FORD MOTOR COMPANY

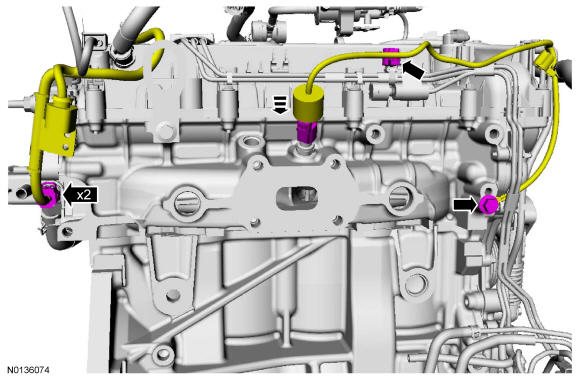

Connect the CHT sensor electrical connector and slide the insulator down.
- Attach the wiring harness retainer.
- Connect the ECT sensor electrical connector.
- Install the ground wire and bolt.
  - Tighten to 20 Nm (177 lb-in).
Courtesy of FORD MOTOR COMPANY
Install 4 new turbocharger-to-cylinder head studs.
- Tighten to 17 Nm (150 lb-in).
- Install a new turbocharger gasket.
Courtesy of FORD MOTOR COMPANY
Install the turbocharger and 4 new nuts.
- Tighten in the sequence shown to 50 Nm (37 lb-ft).
Courtesy of FORD MOTOR COMPANY
Install the turbocharger heat shield and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).
Courtesy of FORD MOTOR COMPANY
NOTE: Do not reuse the turbocharger oil return tube/gaskets, new parts must be installed.

Using 2 new gaskets, install a new turbocharger oil return tube and the 4 bolts.
- Tighten to 10 Nm (89 lb-in).
Courtesy of FORD MOTOR COMPANY
Install a new turbocharger oil filter.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not reuse the turbocharger oil supply tube/gaskets, new parts must be installed.

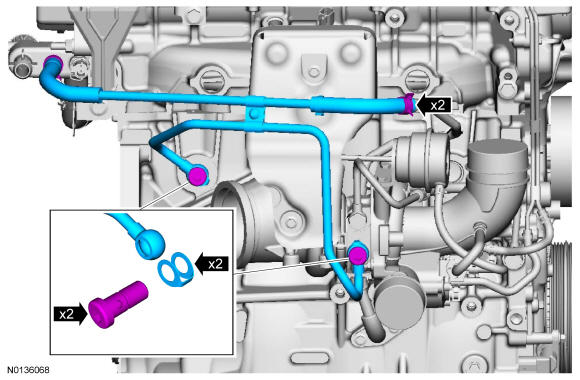

Using 4 new gaskets, install a new turbocharger oil supply tube and the 2 banjo bolts.
- Tighten to 25 Nm (18 lb-ft).
Courtesy of FORD MOTOR COMPANY
NOTE: Early build engine with metal vacuum tubes shown, late build engines with nylon vacuum tubes similar.

Connect the 2 turbocharger control vacuum hoses and the electrical connector.

Courtesy of FORD MOTOR COMPANY
Using 2 new gaskets, install the turbocharger coolant tube and the 2 banjo bolts.
- Tighten to 28 Nm (21 lb-ft).
- Connect the turbocharger coolant tube and the 2 clamps.
Courtesy of FORD MOTOR COMPANY
Install the turbocharger inlet tube, bolt and the stud bolt.
- Tighten to 5 Nm (44 lb-in).
Courtesy of FORD MOTOR COMPANY
Connect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Attach the 2 wiring harness retainers.
- Install the ground strap and nut.
  - Tighten to 9 Nm (80 lb-in).
Courtesy of FORD MOTOR COMPANY
Position the EVAP canister purge valve and install the engine appearance cover mounting stud.
- Tighten to 5 Nm (44 lb-in).
Courtesy of FORD MOTOR COMPANY
Tighten the turbocharger inlet tube clamp to 5 Nm (44 lb-in).

Courtesy of FORD MOTOR COMPANY
Install the turbocharger outlet tube and the 2 bolts.
- Tighten to 6 Nm (53 lb-in).
Courtesy of FORD MOTOR COMPANY
Tighten the turbocharger outlet tube clamp to 5 Nm (44 lb-in).
- Remove the engine from the Engine Stand.
Courtesy of FORD MOTOR COMPANY

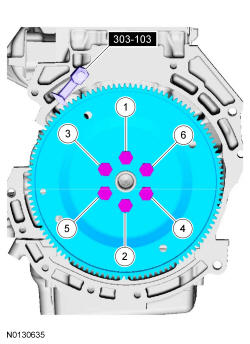

NOTE: Special bolts are used for installation. Do not use standard bolts.

Install the flexplate, the 6 new bolts and the Flywheel Holding Tool.
- Tighten in the sequence shown in 3 stages:
  - Stage 1: Tighten to 50 Nm (37 lb-ft).
  - Stage 2: Tighten to 80 Nm (50 lb-ft).
  - Stage 3: Tighten to 112 Nm (83 lb-ft).
Courtesy of FORD MOTOR COMPANY
