Differential Housing Cover: Notes
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Material
| Item | Specification |
| Motorcraft® Clear Silicone Rubber TA-32 | ESB-M4G92-A |
| Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant (US); Motorcraft® SAE 80W-90 Premium Axle Lubricant (Canada) XY-80W90-QL (US); CXY-80W90-1L (Canada) | WSP-M2C197-A |

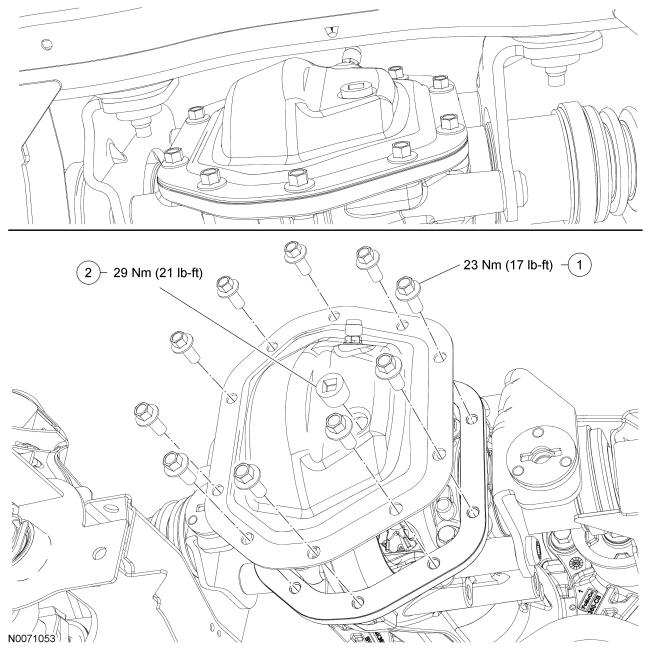

| Item | Part Number | Description |
|---|---|---|
| 1 | W505262 | Differential housing cover bolt (10 required) |
| 2 | 4N282 | Filler plug |
