Taurus SE, Gas
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Manual Climate Control System
Manual Climate Control System

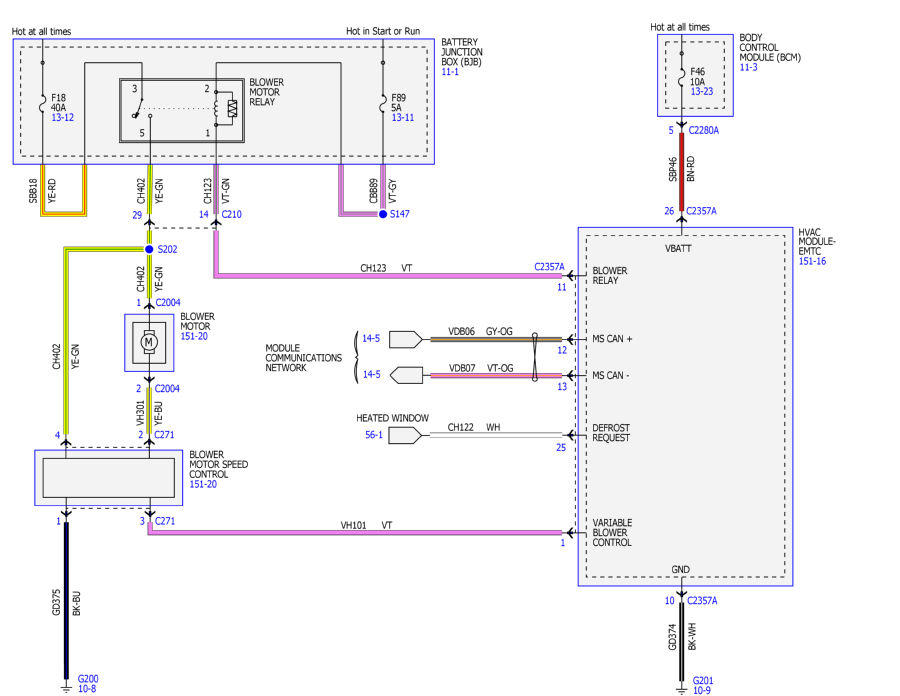

Fig 1: Manual Climate Control System Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR COMPANY

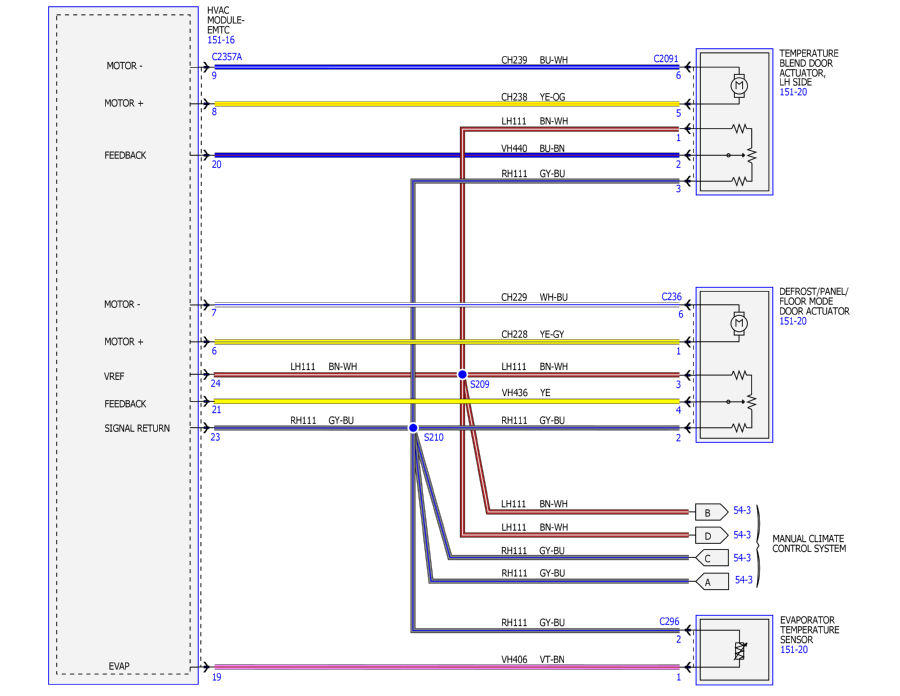

Fig 2: Manual Climate Control System Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR COMPANY

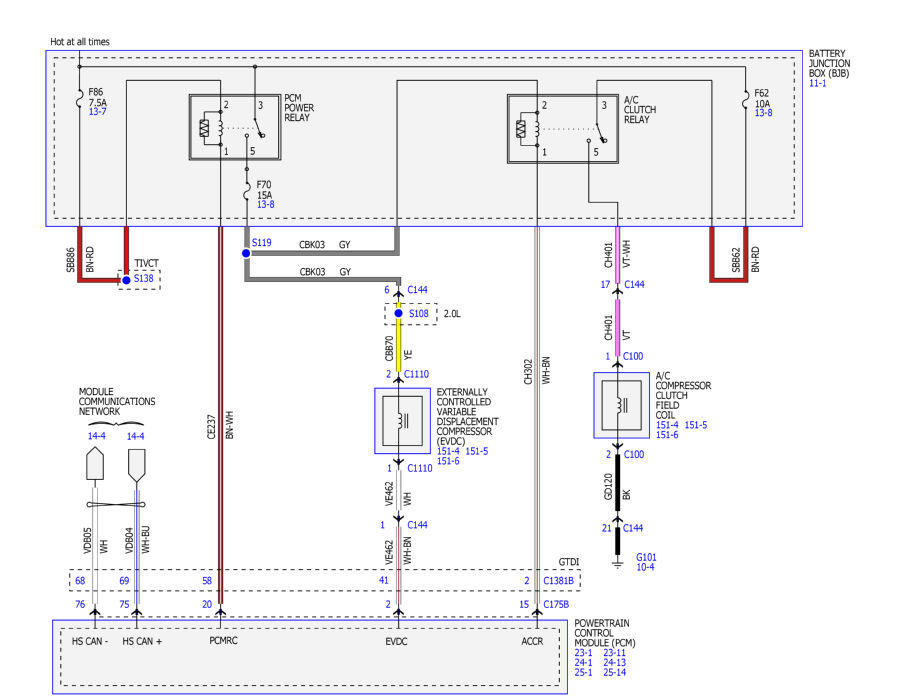

Fig 3: Manual Climate Control System Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR COMPANY

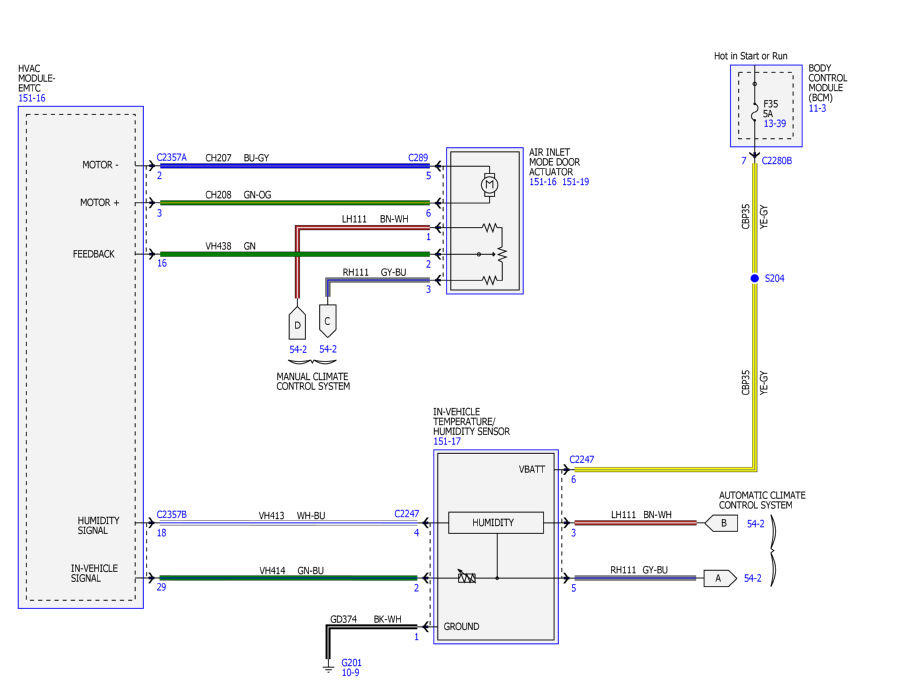

Fig 4: Manual Climate Control System Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR COMPANY

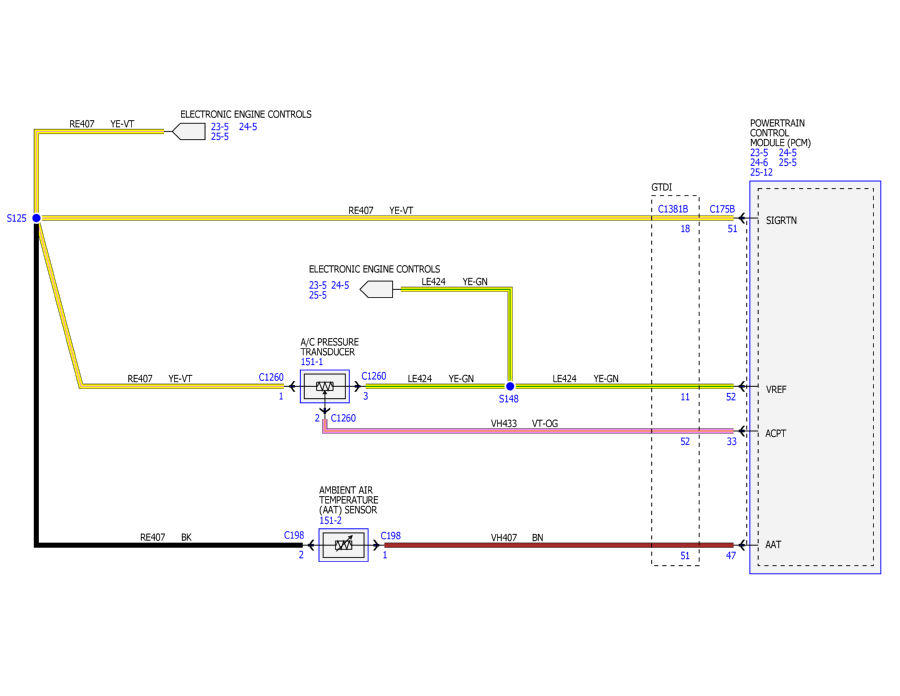

Fig 5: Manual Climate Control System Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR COMPANY
