Battery Current Sensor: Notes
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

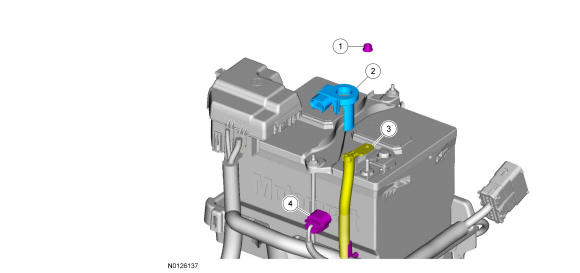

| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Battery terminal nut (part of 14B060) - 9 Nm (80 lb-in) |
| 2 | 14B357 | Battery current sensor |
| 3 | -- | Negative battery cable terminal (part of 14B060) |
| 4 | -- | Battery current sensor electrical connector (part of 14B060) |
