Compressor to Condenser Discharge Line - 3.5L Ti-VCT: Notes
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING
Material
| Item | Specification |
| Motorcraft® PAG Refrigerant Compressor OilYN-12-D | WSH-M1C231-B |

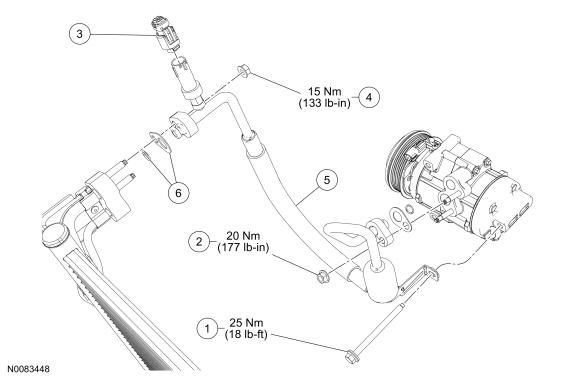

Fig 1: Compressor To Condenser Discharge Line Replacement Components With Torque Specifications - 3.5L Ti-Vct
| Item | Part Number | Description |
|---|---|---|
| 1 | W712611 | Rear A/C compressor bolt |
| 2 | W520413 | A/C compressor discharge fitting nut |
| 3 | -- | A/C pressure transducer electrical connector (part of 14290) |
| 4 | W520413 | Condenser inlet fitting nut |
| 5 | 19972 | Compressor-to-condenser discharge line |
| 6 | 19B596 | O-ring seal and gasket seal kit (1 required) |
