Electronic Engine Controls- Front

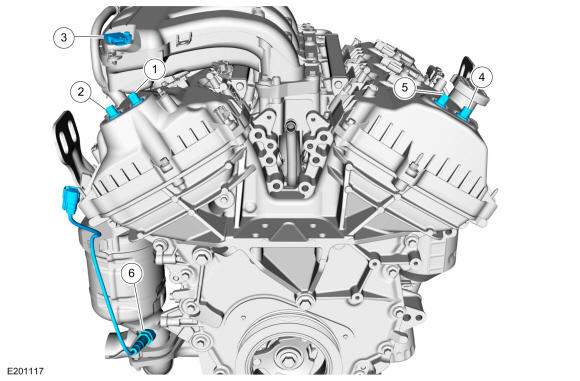

GFD415101Courtesy of FORD MOTOR COMPANY
Item Description
1 RH intake VCT oil control solenoid
2 RH exhaust VCT oil control solenoid
3 MAPT sensor
4 LH exhaust VCT oil control solenoid
5 LH intake VCT oil control solenoid
6 Catalyst monitor sensor
