Selector Lever Cable: Installation

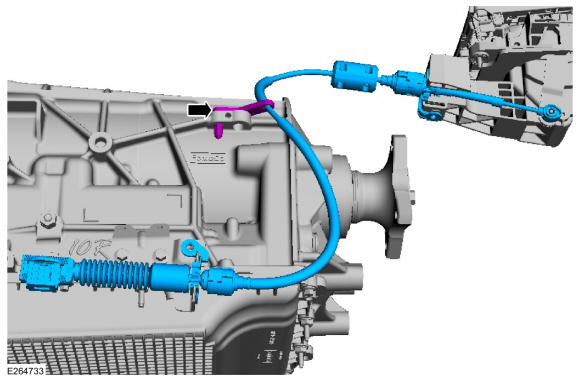

Position the selector lever cable and connect the selector lever cable retainer.

Courtesy of FORD MOTOR COMPANY

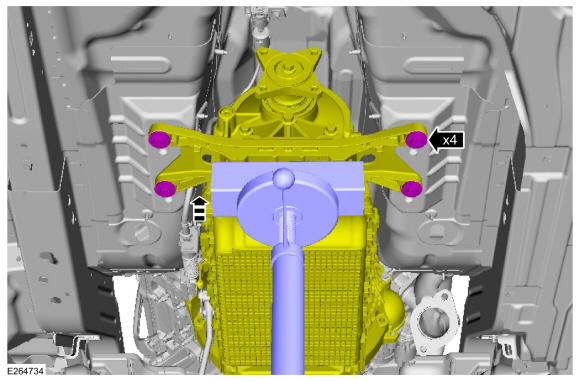

Raise the transmission, install the transmission support crossmember bolts and remove the jack stand and wood block. Use the General Equipment: Vehicle/Axle StandsUse the General Equipment: Wooden Block
Torque

: 34 lb.ft (46 Nm)

Courtesy of FORD MOTOR COMPANY

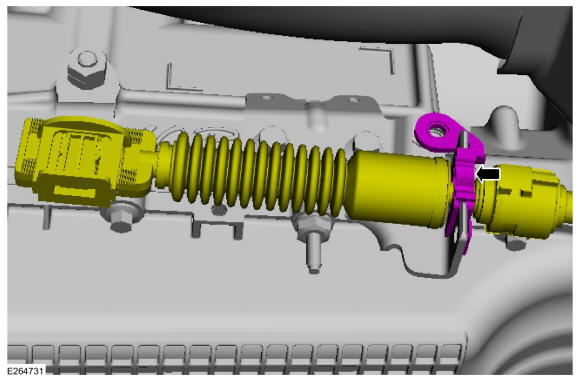

Connect the selector lever cable retainer to the transmission.

Courtesy of FORD MOTOR COMPANY

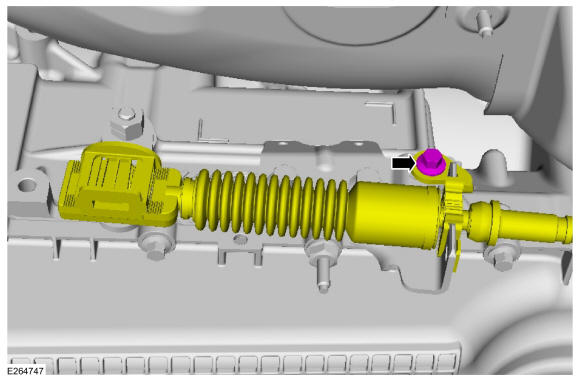

Install the selector lever cable retainer bolt.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

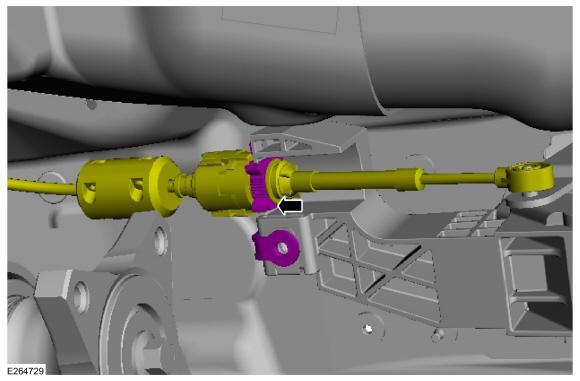

Connect the selector lever cable to the selector lever assembly.

Courtesy of FORD MOTOR COMPANY

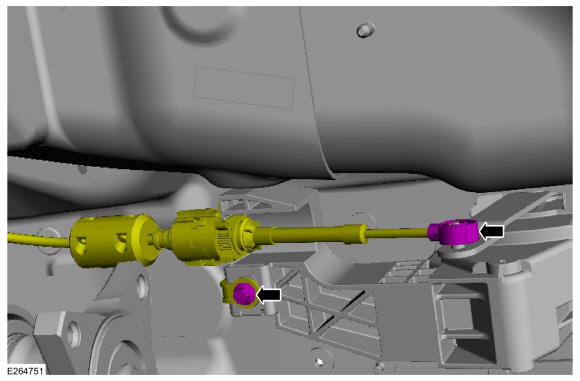

With the selector lever in D, install the selector lever cable retainer bolt and connect the selector lever cable to the selector lever.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Position the manual lever in D.
1. Rotate the manual lever clockwise until it stops.
2. Rotate the manual lever counterclockwise 3 detents.
Courtesy of FORD MOTOR COMPANY
Unlock the adjuster.
1. Gently pry the latch up.
2. Push the lock tab to slide it down.
3. Lock tab shown open.
Courtesy of FORD MOTOR COMPANY
NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.

Connect and lock the adjuster.
1. With the adjuster lock tab released, connect the selector lever cable end to the manual control lever.
2. Push the lock tab upward to lock the transmission selector lever cable adjustment lock.
Courtesy of FORD MOTOR COMPANY
Install the heat shield.

Courtesy of FORD MOTOR COMPANY
Install the driveshaft. Refer to: Driveshaft .
Verify the vehicle starts in P and N only and that the reverse lamps illuminate in R.
