Mustang EcoBoost, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Fuse And Relay Location
>>
Fuse And Relay Information
Fuse And Relay Information

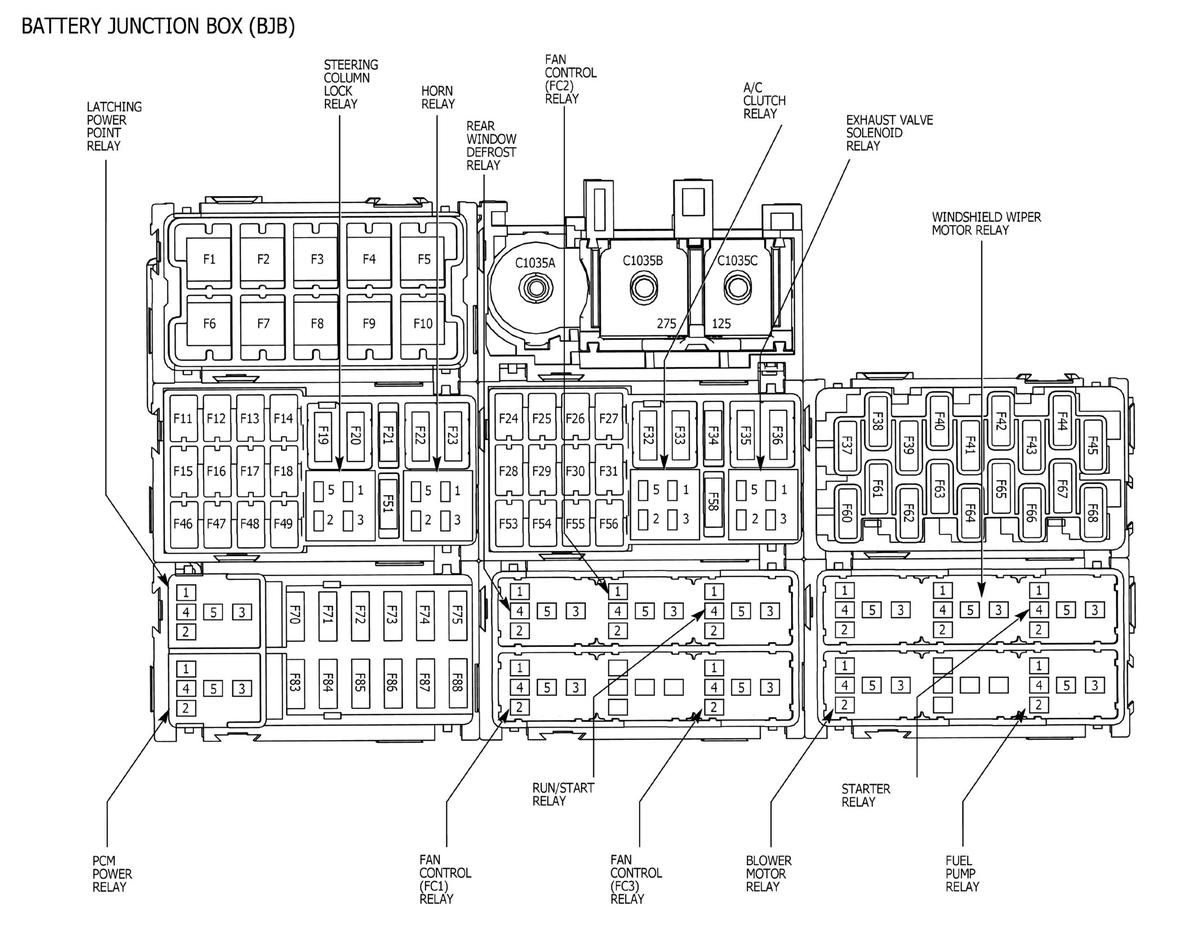

Fig 1: Battery Junction Box (BJB) Component Location
Courtesy of FORD MOTOR COMPANY

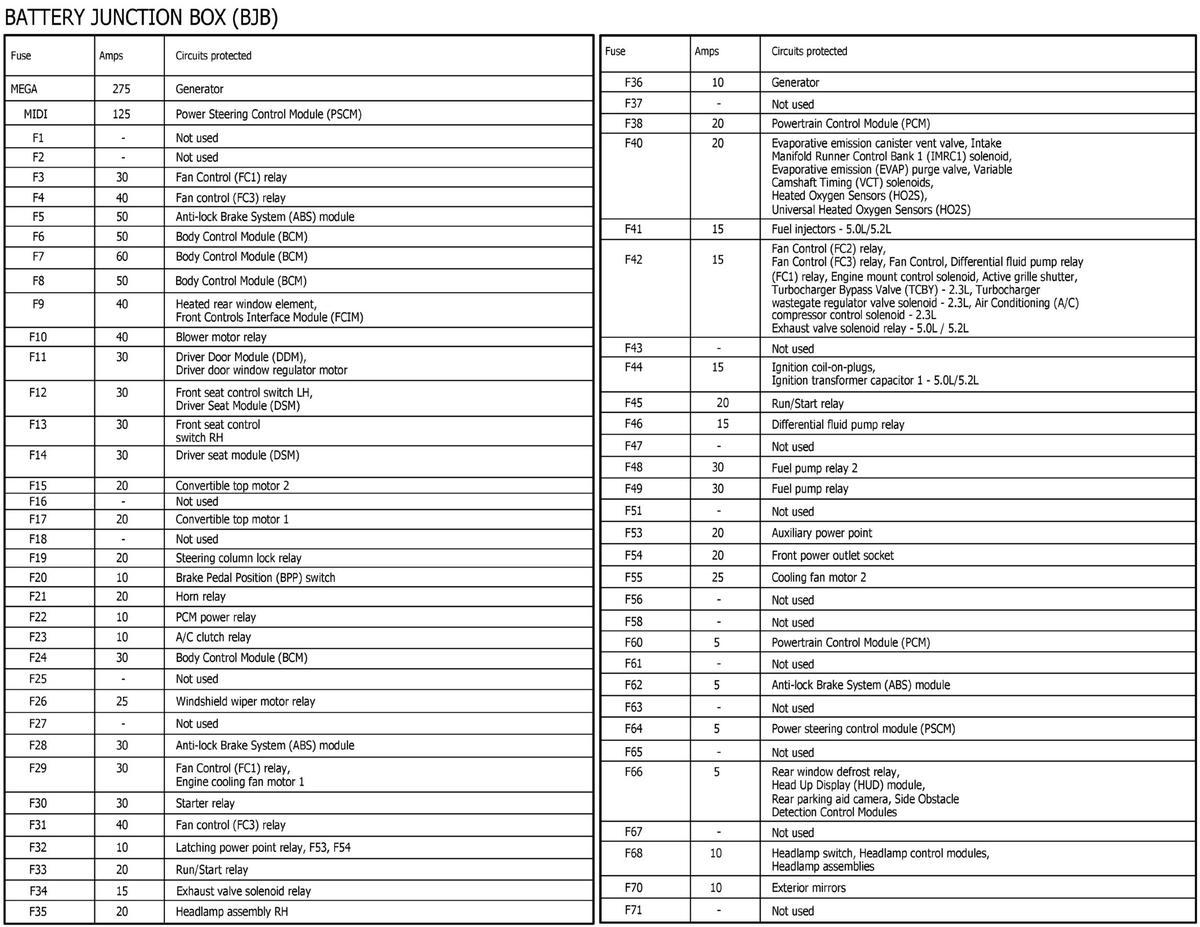

Fig 2: Battery Junction Box (BJB) Component Location Legend (1 of 2)
Courtesy of FORD MOTOR COMPANY

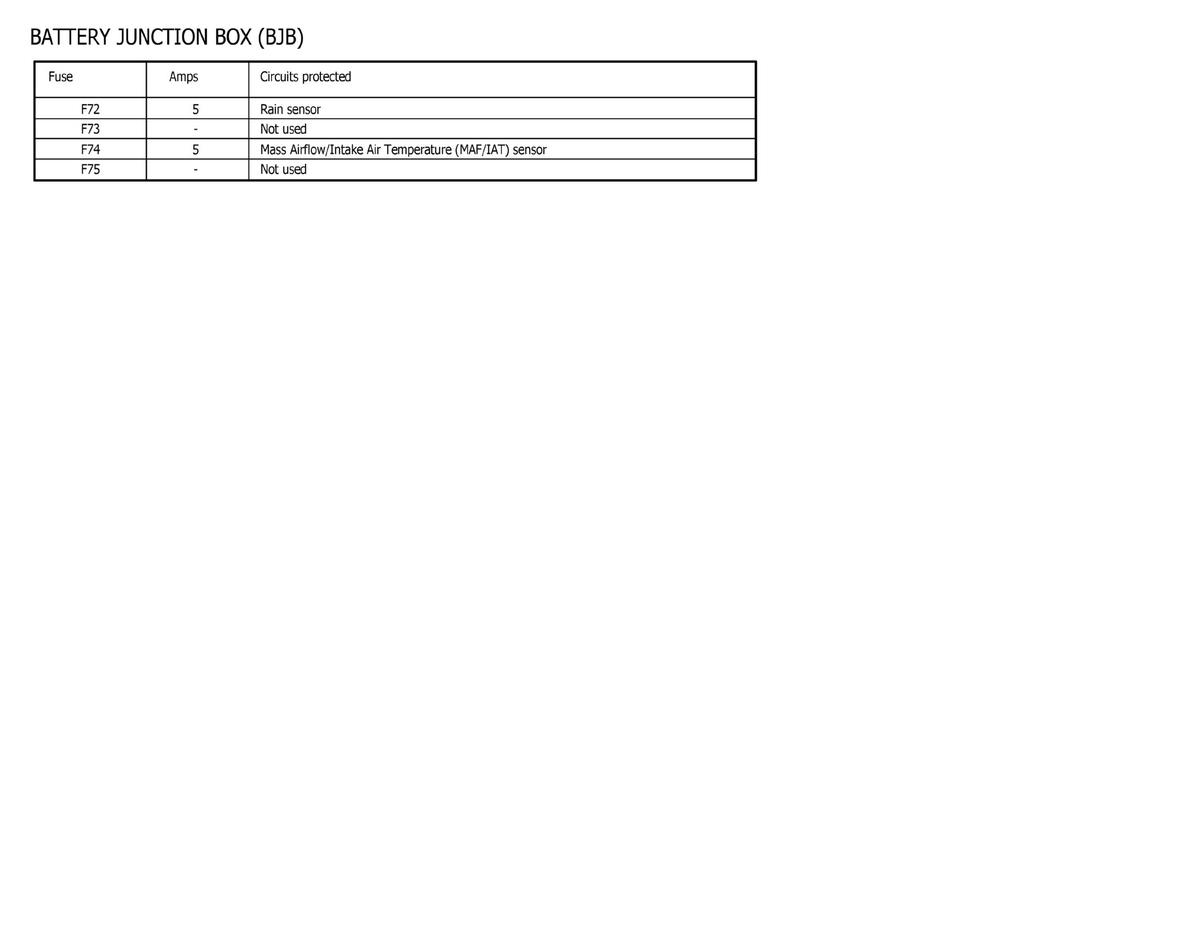

Fig 3: Battery Junction Box (BJB) Component Location Legend (2 of 2)
Courtesy of FORD MOTOR COMPANY

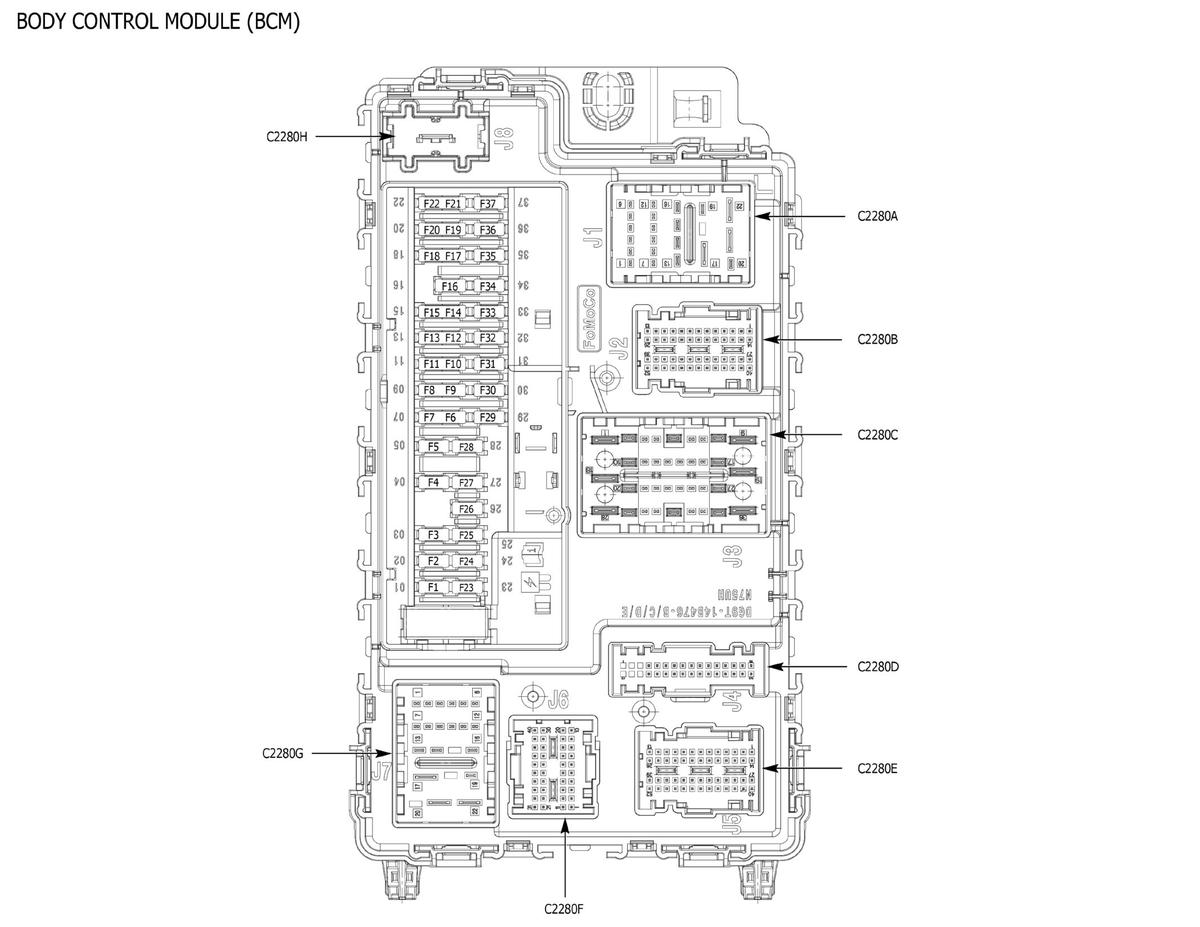

Fig 4: Body Control Module (BCM) Component Location
Courtesy of FORD MOTOR COMPANY

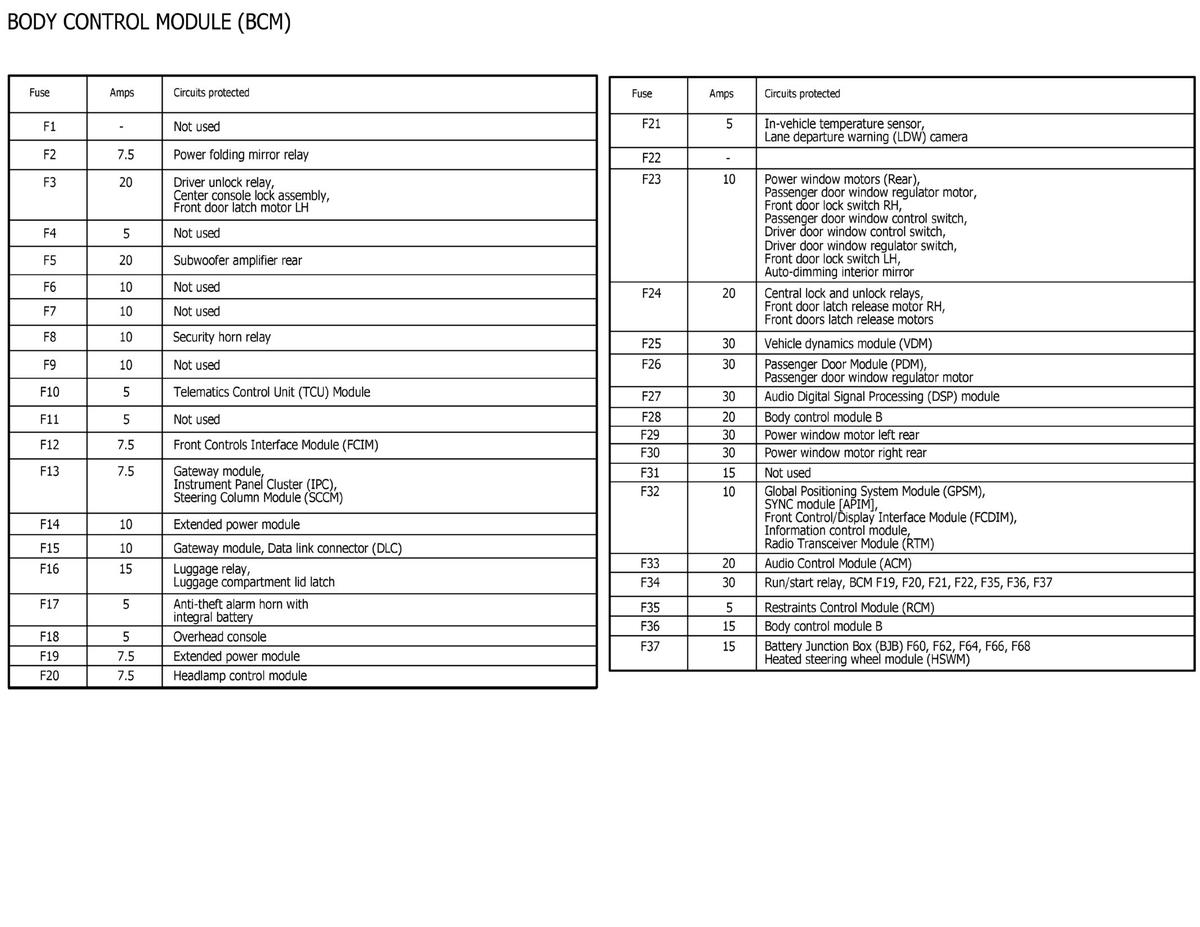

Fig 5: Body Control Module (BCM) Component Location Legend
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
