Engine - 2.3L ECOBOOST (231KW/314PS): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

GFD387793Courtesy of FORD MOTOR COMPANY
 300-OTC1819E2, 200# Floor Crane, Fold Away
GFD387662Courtesy of FORD MOTOR COMPANY
 303-050 (T70P-6000)Lifting Bracket, Engine
Magnetic Socket
Oil Drain Equipment
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .

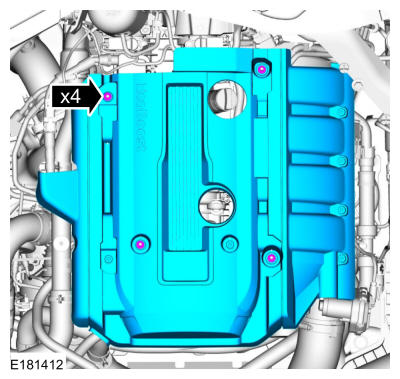

  3. Remove the nuts and the engine appearance cover.
    GFD387344Courtesy of FORD MOTOR COMPANY
  4. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  5. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

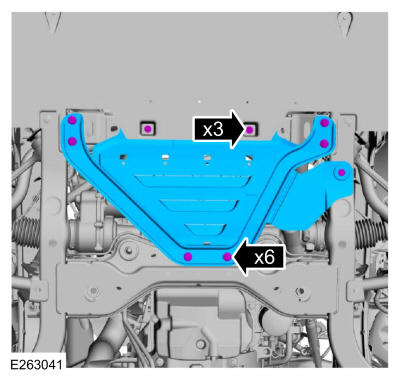

  6. Remove the screws, bolts and the underbody shield.
    GFD387671Courtesy of FORD MOTOR COMPANY

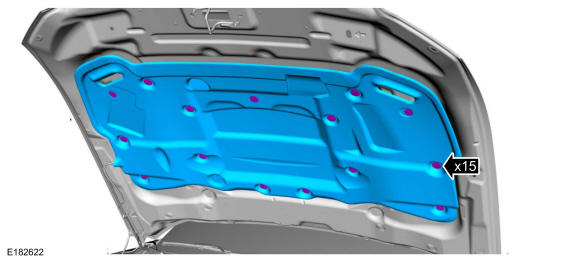

  7. Remove the pin-type retainers and the hood insulation.
    GFD387794Courtesy of FORD MOTOR COMPANY

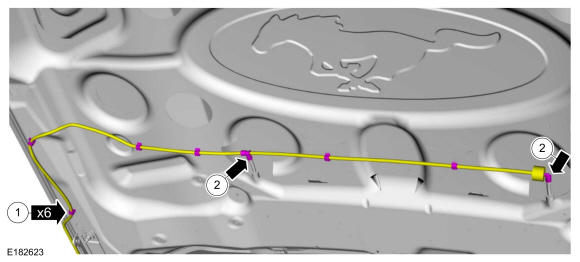

    1. Detach the windshield washer hose retainers.
    2. Disconnect the windshield washer hose couplings. Refer to: Washer Hose Coupling .
    GFD387795Courtesy of FORD MOTOR COMPANY

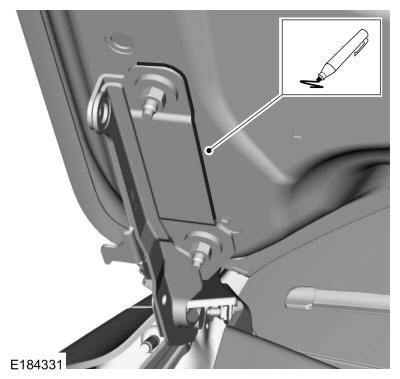

  9. NOTE: RH side shown below, LH similar.

    Index-mark the hood hinge location to aid in hood installation.

    GFD387796Courtesy of FORD MOTOR COMPANY

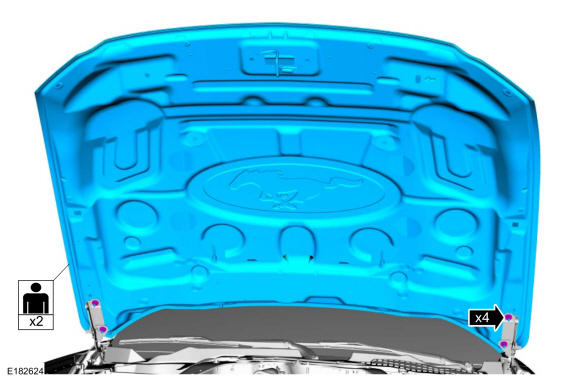

  10. Remove the nuts and the hood.
    GFD387797Courtesy of FORD MOTOR COMPANY
  11. Remove the degas bottle. Refer to: Degas Bottle .

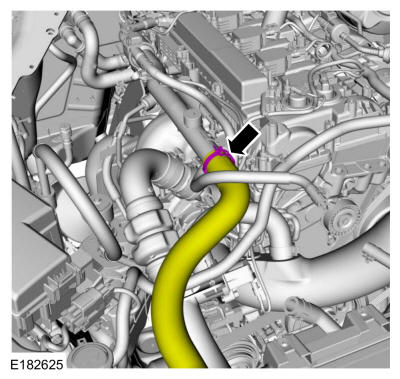

  12. Remove the upper radiator hose from the coolant tube. Use the General Equipment: Hose Clamp Remover/Installer
    GFD387798Courtesy of FORD MOTOR COMPANY
  13. Remove the following items:

    1. Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE . .
    2. Remove the air cleaner. Refer to: Air Cleaner .
    3. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .

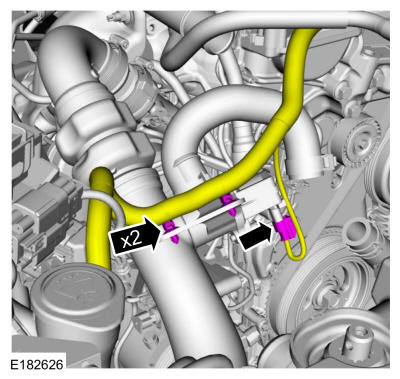

  14. Disconnect the CAC valve electrical connector and the retainers.
    GFD387799Courtesy of FORD MOTOR COMPANY

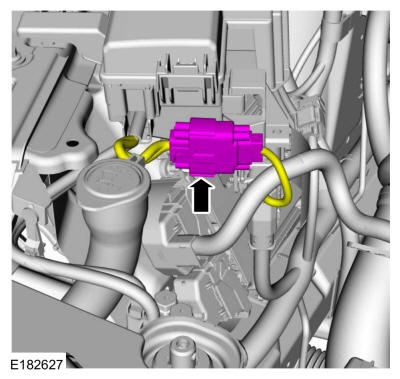

  15. Detach and disconnect the engine harness electrical connector.
    GFD387800Courtesy of FORD MOTOR COMPANY

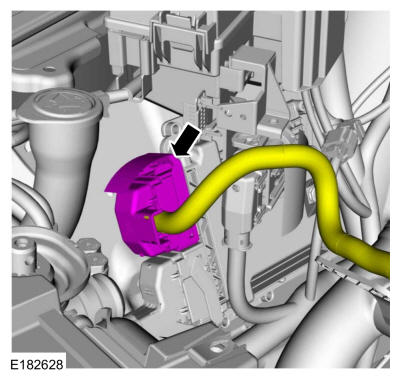

  16. Disconnect the upper PCM electrical connector.
    GFD387801Courtesy of FORD MOTOR COMPANY

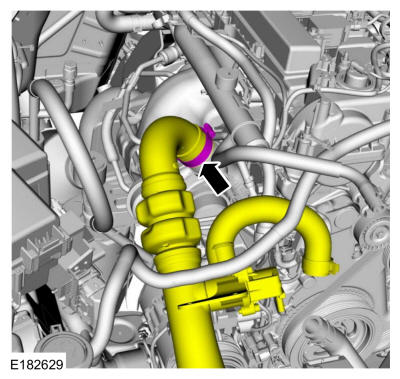

  17. Loosen the clamp and position aside the CAC inlet tube.
    GFD387802Courtesy of FORD MOTOR COMPANY

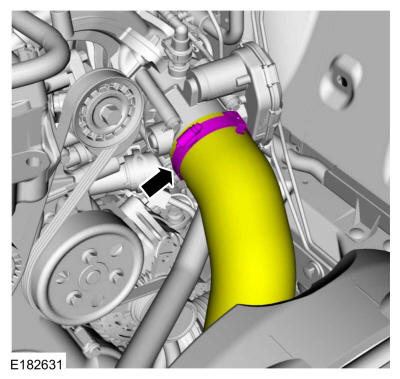

  18. Loosen the clamp and position aside the CAC outlet tube.
    GFD387803Courtesy of FORD MOTOR COMPANY

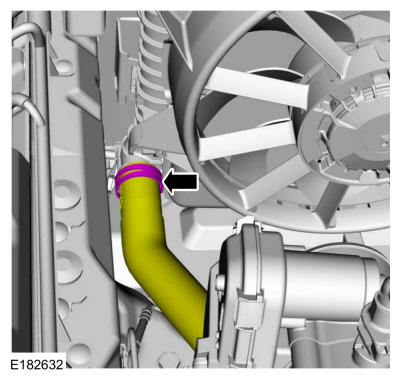

  19. Remove the lower radiator hose from the radiator. Use the General Equipment: Hose Clamp Remover/Installer
    GFD387804Courtesy of FORD MOTOR COMPANY

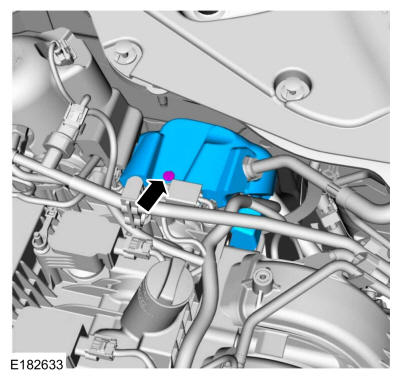

  20. Remove the retainer and the brake vacuum pump insulator cover.
    GFD387805Courtesy of FORD MOTOR COMPANY

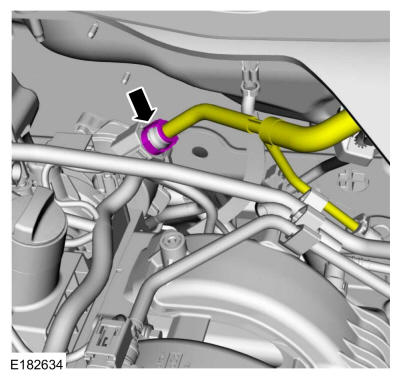

  21. Disconnect the vacuum hose from the brake vacuum pump.
    GFD387806Courtesy of FORD MOTOR COMPANY

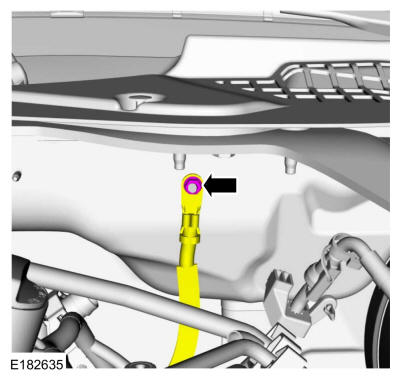

  22. Remove the nut and the engine ground strap from the cowl.
    GFD387807Courtesy of FORD MOTOR COMPANY

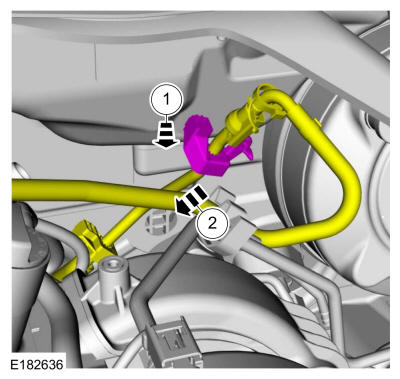

  23. NOTE: It is necessary to move fuel tube retainer for access for the use of fuel disconnect tool.

    1. Detach the fuel supply tube retainer from the cowl.
    2. Slide the retainer down the fuel supply tube.

    GFD387808Courtesy of FORD MOTOR COMPANY

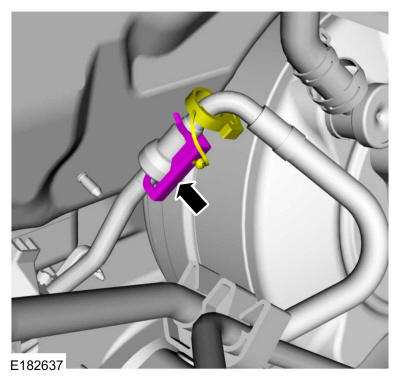

  24. Remove the fuel supply tube spring lock coupling retainer.
    GFD387809Courtesy of FORD MOTOR COMPANY

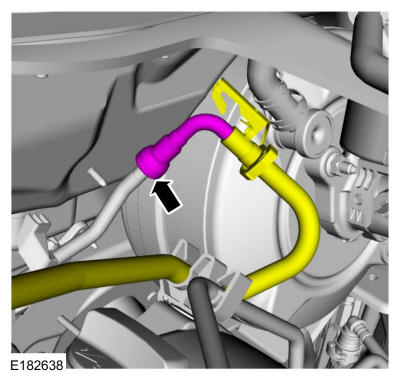

  25. Disconnect the fuel supply tube. Refer to: Spring Lock Couplings .
    GFD387810Courtesy of FORD MOTOR COMPANY

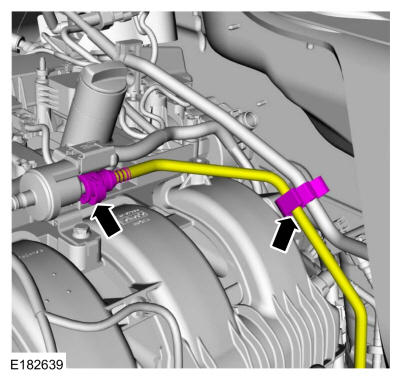

    • Disconnect the vacuum tube quick release coupling from the EVAP canister purge valve.

    • Detach the vacuum tube from the intake manifold retainer.

    GFD387811Courtesy of FORD MOTOR COMPANY

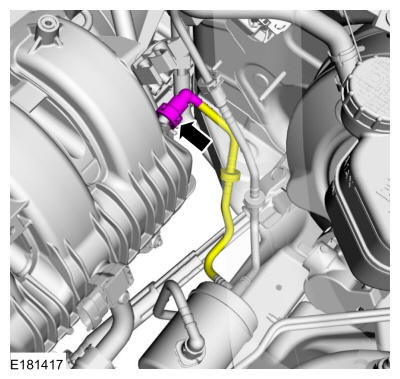

  27. Disconnect the vacuum tube quick release coupling at the rear of the intake manifold.
    GFD387699Courtesy of FORD MOTOR COMPANY

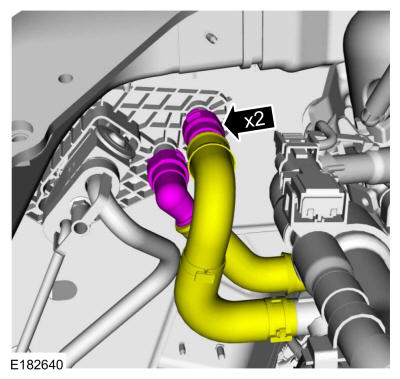

  28. Disconnect the coolant hoses from the heater core.
    GFD387812Courtesy of FORD MOTOR COMPANY

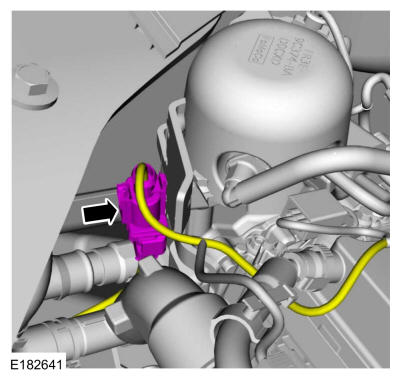

  29. Detach and disconnect the HO2S electrical connector.
    GFD387813Courtesy of FORD MOTOR COMPANY

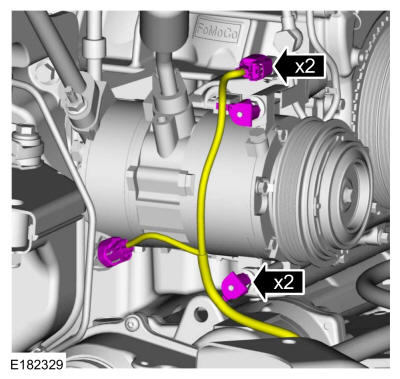

  30. Disconnect the A/C compressor electrical connectors and the wire harness retainers.
    GFD387589Courtesy of FORD MOTOR COMPANY

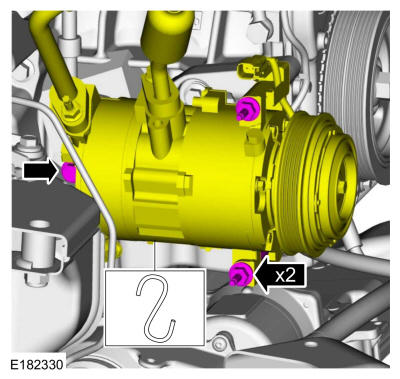

  31. Remove the bolts, position and support the A/C compressor aside.
    GFD387590Courtesy of FORD MOTOR COMPANY
  32. Remove the starter motor. Refer to: Starter Motor .

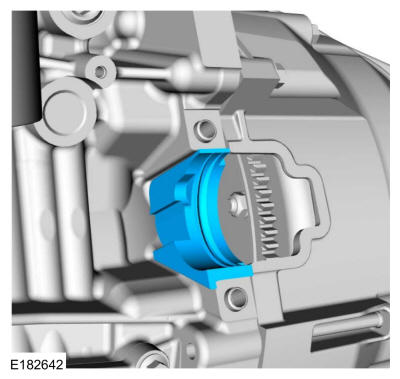

  33. Remove the starter motor insulator.
    GFD387814Courtesy of FORD MOTOR COMPANY

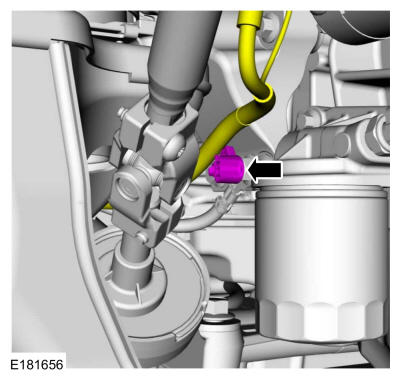

  34. Detach the wire harness retainer from the LH engine mount bracket stud bolt.
    GFD387672Courtesy of FORD MOTOR COMPANY

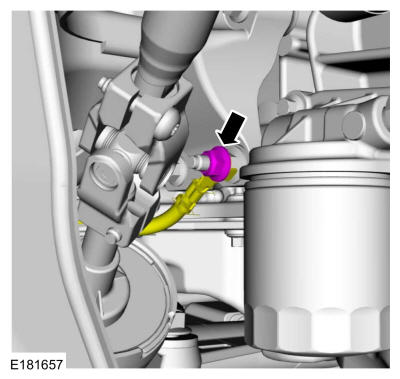

  35. Remove the nut and ground wire from the LH engine mount bracket stud bolt.
    GFD387673Courtesy of FORD MOTOR COMPANY

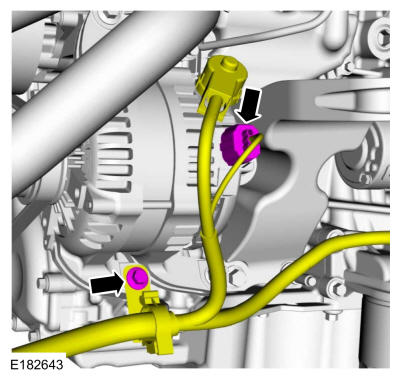

    • Remove the bolt and the wire harness retainer from the generator.

    • Disconnect the generator electrical connector.

    GFD387815Courtesy of FORD MOTOR COMPANY

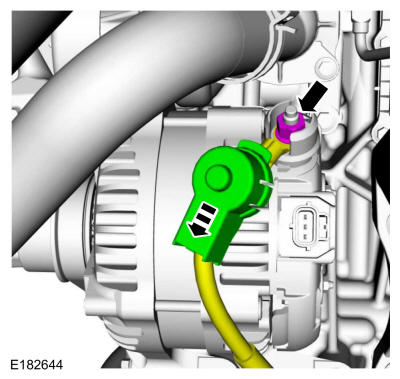

    • Position the protective cover aside.

    • Remove the nut and the B+ cable.

    GFD387816Courtesy of FORD MOTOR COMPANY

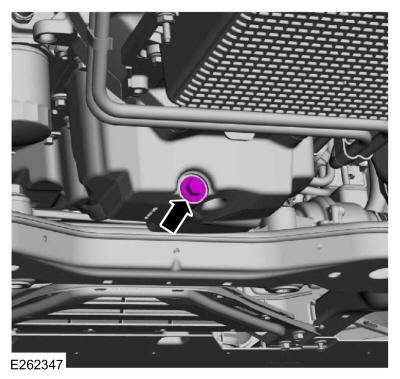

  38. Drain the engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment

    Torque: 20 lb.ft (27 Nm)

    GFD387619Courtesy of FORD MOTOR COMPANY

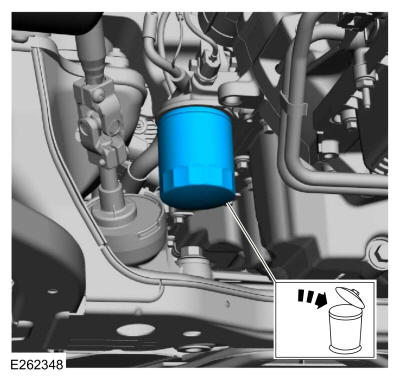

  39. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
    GFD387620Courtesy of FORD MOTOR COMPANY

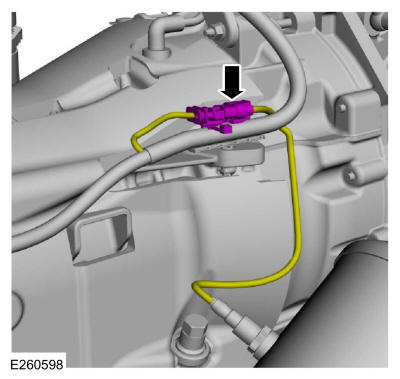

  40. NOTE: Automatic transmission shown, manual transmission similar.

    Disconnect the catalyst monitor sensor (CMS) sensor electrical connector.

    GFD387817Courtesy of FORD MOTOR COMPANY

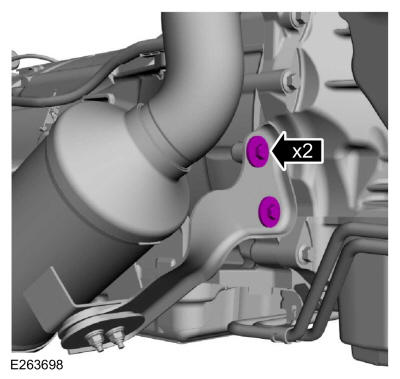

  41. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the bolts for the catalytic converter bracket.

    GFD387818Courtesy of FORD MOTOR COMPANY

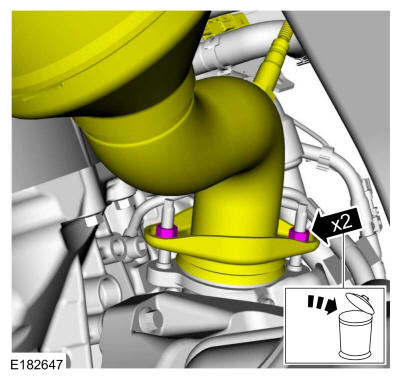

  42. NOTE: Make sure that the mating faces are clean and free of foreign material.

    • Remove the nuts and position the catalytic converter aside.

    • Discard the nuts.

    GFD387819Courtesy of FORD MOTOR COMPANY

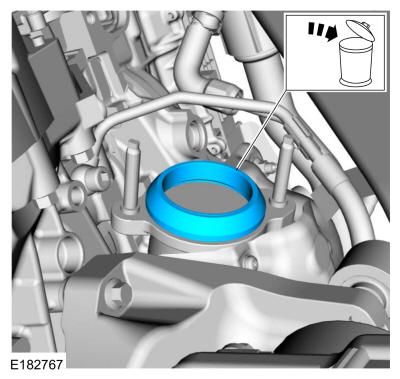

  43. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the gasket.

    GFD387820Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

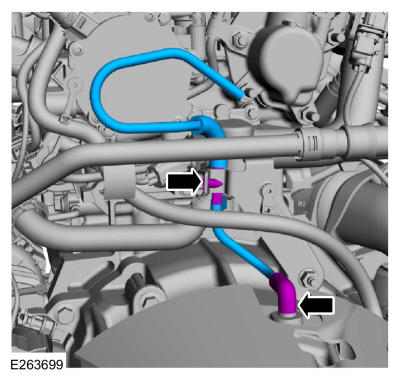

  44. Detach the transmission vent hose and retainer and remove.
    GFD387821Courtesy of FORD MOTOR COMPANY

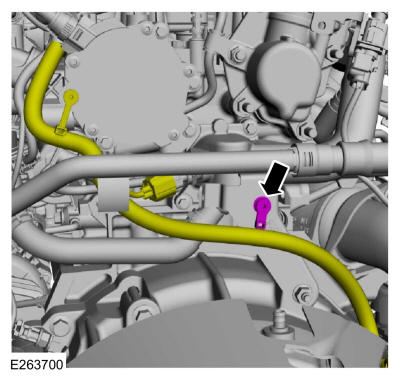

  45. Detach the transmission wiring harness retainer from the coolant tube bracket.
    GFD387822Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

  46. NOTE: Automatic transmission shown, manual transmission similar.

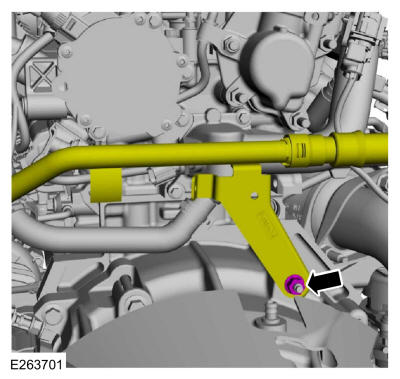

    Remove the nut and position the coolant tube bracket aside.

    GFD387823Courtesy of FORD MOTOR COMPANY

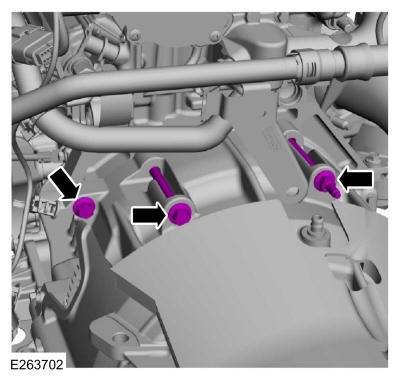

  47. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the transmission bolts.

    GFD387824Courtesy of FORD MOTOR COMPANY

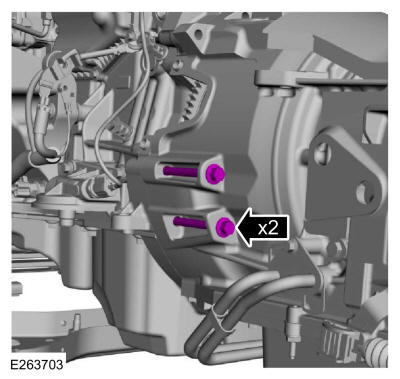

  48. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the transmission bolts.

    GFD387825Courtesy of FORD MOTOR COMPANY
  49. NOTE: Automatic transmission shown, manual transmission similar.

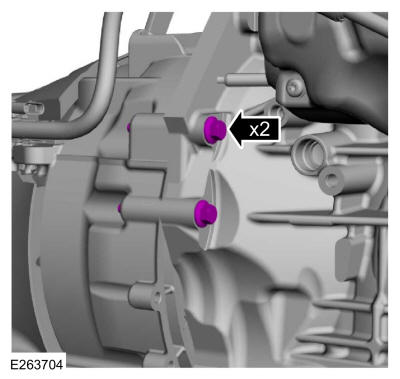

    Remove the transmission bolts.

    GFD387826Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

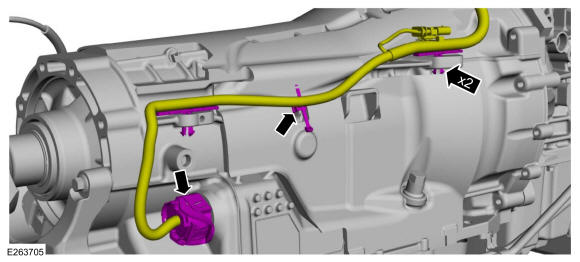

    • Disconnect the transmission electrical connector.

    • Detach the retainers and position the wiring harness aside.

    GFD387827Courtesy of FORD MOTOR COMPANY

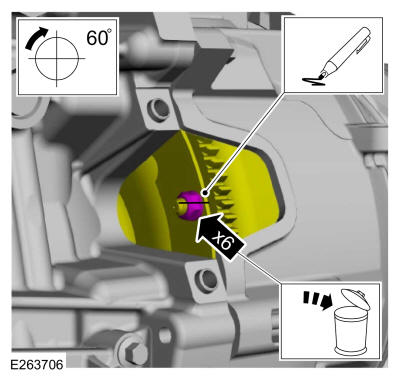

  51. NOTE: Only rotate the crankshaft in a clockwise direction.
    NOTE: Index mark one stud and the flexplate for assembly reference.

    Remove and discard the torque convertor nuts. Use the General Equipment: Magnetic Socket

    GFD387828Courtesy of FORD MOTOR COMPANY

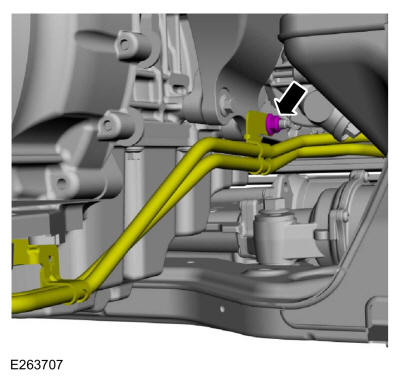

  52. Remove the nut from the RH engine mount bracket stud bolt for the transmission cooling tubes.
    GFD387829Courtesy of FORD MOTOR COMPANY

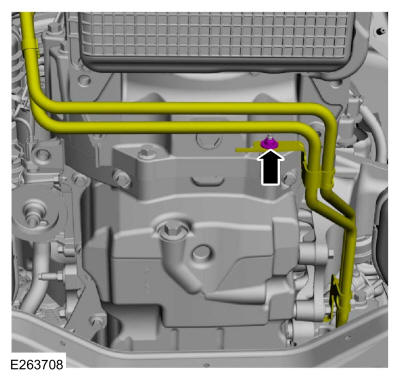

  53. Remove the transmission cooling tube bracket nut and position aside.
    GFD387830Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

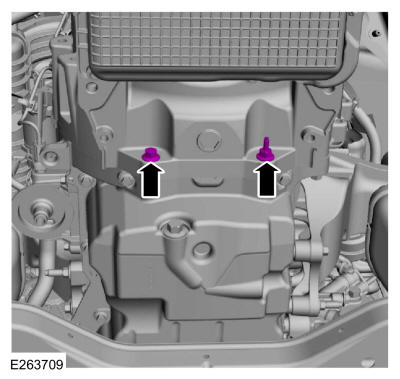

  54. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the oil pan bolts.

    GFD387831Courtesy of FORD MOTOR COMPANY

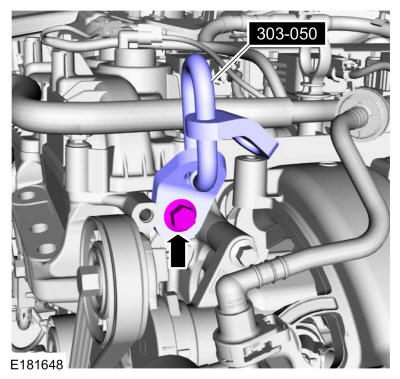

  55. Install the special tool on the LH side of the cylinder head. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD387664Courtesy of FORD MOTOR COMPANY

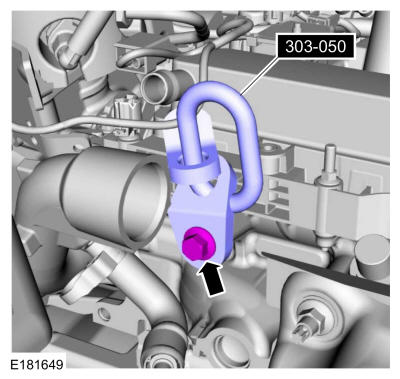

  56. NOTE: Coolant tube removed for clarity.

    Install the special tool on the RH side of the cylinder head. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    GFD387665Courtesy of FORD MOTOR COMPANY

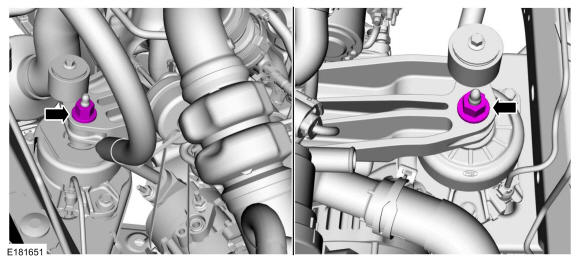

  57. Remove the RH and LH engine mount bracket nuts.
    GFD387667Courtesy of FORD MOTOR COMPANY

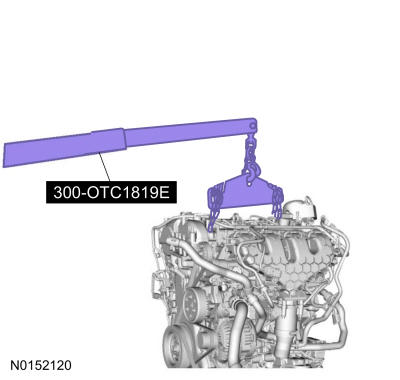

  58. Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
    GFD387832Courtesy of FORD MOTOR COMPANY

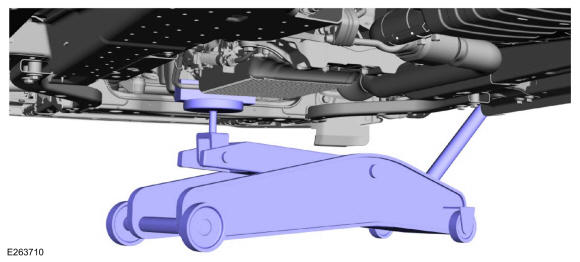

  59. Install a jack and wooden block under the transmission bell housing to support the transmission. Use the General Equipment: Wooden BlockUse the General Equipment: Trolley Jack
    GFD387833Courtesy of FORD MOTOR COMPANY

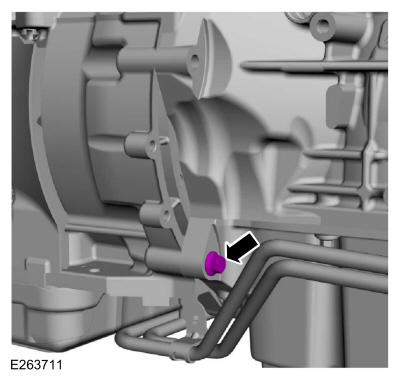

  60. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the oil pan bolt.

    GFD387834Courtesy of FORD MOTOR COMPANY
  61. Using the special tool, remove the engine. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
GFD387832Courtesy of FORD MOTOR COMPANY
