Engine - 2.3L ECOBOOST (231KW/314PS): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

GFD387793Courtesy of FORD MOTOR COMPANY
300-OTC1819E2, 200# Floor Crane, Fold Away
GFD387662Courtesy of FORD MOTOR COMPANY
303-050 (T70P-6000)Lifting Bracket, Engine
Magnetic Socket
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

Materials

Name Specification
Motorcraft® Multi-Purpose Grease SprayXL-5-A ESB-M1C93-B

10-Speed Automatic Transmission - 10R80

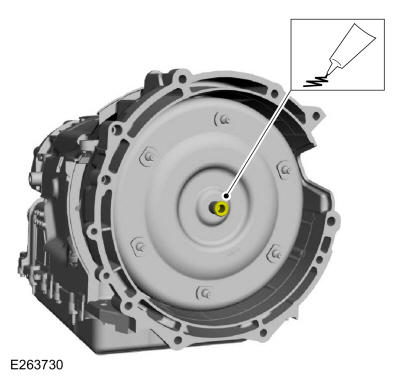

  1. Lubricate the torque converter pilot hub with multi-purpose grease.

    Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD388067Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82

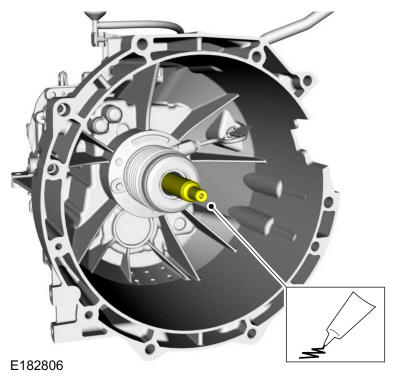

  2. Lubricate the input shaft with multi-purpose grease.

    Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD388068Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

  3. Using the special tool, install the engine. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
    GFD387832Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

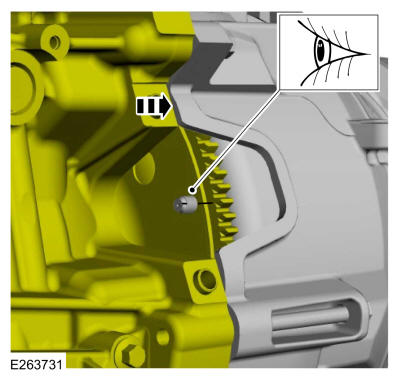

  4. Align the torque converter stud marked during removal with the flexplate.
    GFD388069Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

  5. NOTE: Automatic transmission shown, manual transmission similar.

    Install the oil pan bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD387834Courtesy of FORD MOTOR COMPANY
  6. Remove the jack and wooden block. Use the General Equipment: Wooden BlockUse the General Equipment: Trolley Jack
    GFD387833Courtesy of FORD MOTOR COMPANY
  7. Remove Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
    GFD387832Courtesy of FORD MOTOR COMPANY
  8. NOTE: Automatic transmission shown, manual transmission similar.

    Install the transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD387826Courtesy of FORD MOTOR COMPANY
  9. NOTE: Automatic transmission shown, manual transmission similar.

    Install the transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD387825Courtesy of FORD MOTOR COMPANY
  10. NOTE: Automatic transmission shown, manual transmission similar.

    Install the transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD387824Courtesy of FORD MOTOR COMPANY
  11. NOTE: Automatic transmission shown, manual transmission similar.

    Position the coolant tube bracket and install the nut.

    Torque: 18 lb.ft (25 Nm)

    GFD387823Courtesy of FORD MOTOR COMPANY
  12. NOTE: Automatic transmission shown, manual transmission similar.

    Install the oil pan bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD387831Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

  13. Install the transmission cooling tube bracket and nut.
    GFD387830Courtesy of FORD MOTOR COMPANY
  14. Position the automatic transmission tube bracket and install the nut.

    Torque: 35 lb.ft (48 Nm)

    GFD387829Courtesy of FORD MOTOR COMPANY

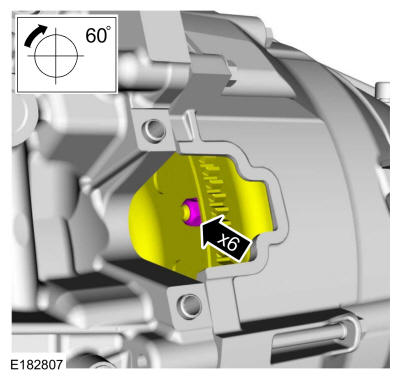

  15. NOTE: Only rotate the crankshaft in a clockwise direction.

    Install the new torque convertor nuts. Use the General Equipment: Magnetic Socket

    Torque: 30 lb.ft (40 Nm)

    GFD388070Courtesy of FORD MOTOR COMPANY
  16. Attach the transmission wiring harness retainer to the coolant tube bracket.
    GFD387822Courtesy of FORD MOTOR COMPANY
  17. Attach the transmission vent hose and retainer.
    GFD387821Courtesy of FORD MOTOR COMPANY
    • Attach the wiring harness retainers.

    • Connect the transmission electrical connector.

    GFD387827Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

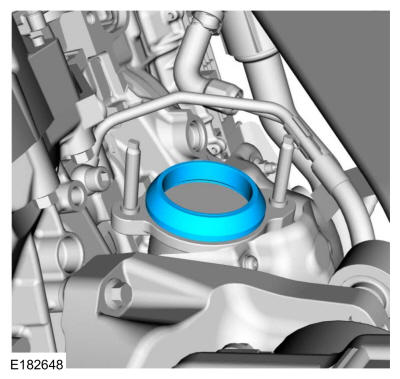

  18. Install a new gasket.
    GFD388071Courtesy of FORD MOTOR COMPANY

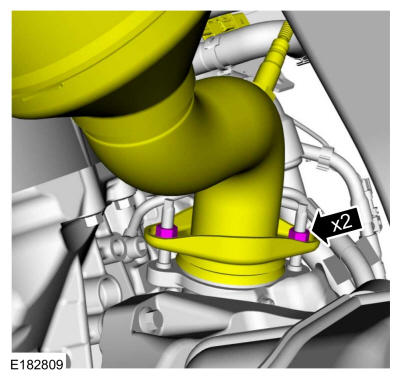

  19. Position the catalytic converter and install the new nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD388072Courtesy of FORD MOTOR COMPANY
  20. NOTE: Automatic transmission shown, manual transmission similar.

    Install the bolts for the catalytic converter bracket.

    Torque: 18 lb.ft (25 Nm)

    GFD387818Courtesy of FORD MOTOR COMPANY
  21. NOTE: Automatic transmission shown, manual transmission similar.

    Connect the catalyst monitor sensor (CMS) sensor electrical connector.

    GFD387817Courtesy of FORD MOTOR COMPANY

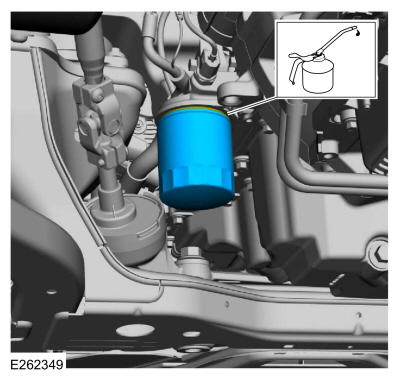

  22. NOTE: Lubricate the engine oil filter seal with clean engine oil.

    Install a new engine oil filter.

    Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 180 deg.

    GFD387621Courtesy of FORD MOTOR COMPANY

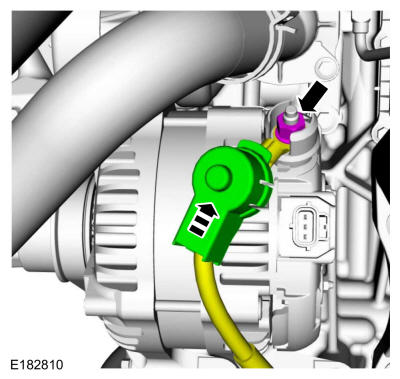

    • Install the B+ cable and the nut.

      Torque: 150 lb.in (17 Nm)

    • Position the protective cover.

    GFD388073Courtesy of FORD MOTOR COMPANY
    • Connect the generator electrical connector.

    • Position the wire harness retainer and install the bolt.

      Torque: 89 lb.in (10 Nm)

    GFD387815Courtesy of FORD MOTOR COMPANY
  23. Install the ground wire and nut to the engine mount bracket stud bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD387673Courtesy of FORD MOTOR COMPANY
  24. Attach the wire harness retainer to the engine mount bracket stud bolt.
    GFD387672Courtesy of FORD MOTOR COMPANY
  25. Install the starter motor insulator.
    GFD387814Courtesy of FORD MOTOR COMPANY
  26. Install the starter motor. Refer to: Starter Motor .

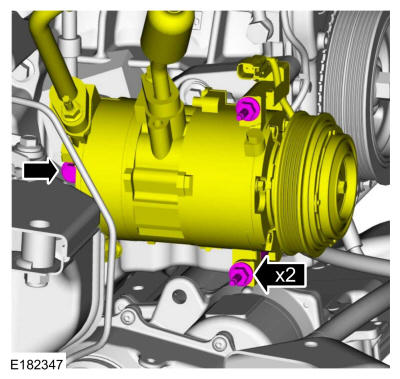

  27. Position the A/C compressor and install the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD387611Courtesy of FORD MOTOR COMPANY
  28. Connect the A/C compressor electrical connectors and the wire harness retainers.
    GFD387589Courtesy of FORD MOTOR COMPANY
  29. Install the RH and LH engine mount bracket nuts.

    Torque: 92 lb.ft (125 Nm)

    GFD387667Courtesy of FORD MOTOR COMPANY
  30. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD387665Courtesy of FORD MOTOR COMPANY
  31. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD387664Courtesy of FORD MOTOR COMPANY
  32. Connect and attach the HO2S electrical connector.
    GFD387813Courtesy of FORD MOTOR COMPANY
  33. Connect the coolant hoses to the heater core.
    GFD387812Courtesy of FORD MOTOR COMPANY
  34. Connect the vacuum tube to the rear of the intake manifold.
    GFD387699Courtesy of FORD MOTOR COMPANY
    • Attach the vacuum tube to the intake manifold retainer.

    • Connect the vacuum tube quick release coupling to the EVAP canister purge valve.

    GFD387811Courtesy of FORD MOTOR COMPANY
  35. Connect the fuel supply tube. Refer to: Spring Lock Couplings .
    GFD387810Courtesy of FORD MOTOR COMPANY
  36. Install the fuel supply tube spring lock coupling retainer.
    GFD387809Courtesy of FORD MOTOR COMPANY

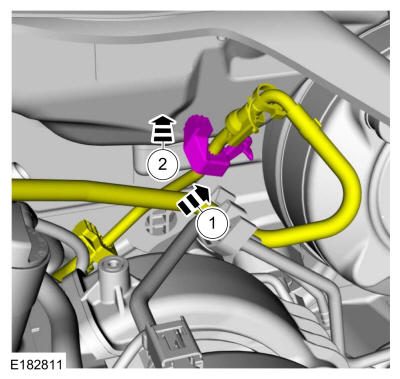

    1. Slide the retainer up the fuel supply tube.
    2. Attach the fuel supply tube retainer to the cowl.
    GFD388074Courtesy of FORD MOTOR COMPANY
  37. Install the engine ground strap and nut to the cowl.

    Torque: 80 lb.in (9 Nm)

    GFD387807Courtesy of FORD MOTOR COMPANY
  38. Connect the vacuum hose to the brake vacuum pump.
    GFD387806Courtesy of FORD MOTOR COMPANY
  39. Install the brake vacuum pump insulator cover and the retainer.
    GFD387805Courtesy of FORD MOTOR COMPANY
  40. Install the lower radiator hose to the radiator. Use the General Equipment: Hose Clamp Remover/Installer
    GFD387804Courtesy of FORD MOTOR COMPANY
  41. Position the CAC outlet tube and tighten the clamp.

    Torque: 44 lb.in (5 Nm)

    GFD387803Courtesy of FORD MOTOR COMPANY
  42. Position the CAC inlet tube and tighten the clamp.

    Torque: 44 lb.in (5 Nm)

    GFD387802Courtesy of FORD MOTOR COMPANY
  43. Connect the upper PCM electrical connector.
    GFD387801Courtesy of FORD MOTOR COMPANY
  44. Connect and attach the engine harness electrical connector.
    GFD387800Courtesy of FORD MOTOR COMPANY
  45. Connect the CAC valve electrical connector and the wire harness retainers.
    GFD387799Courtesy of FORD MOTOR COMPANY
  46. Install the following items:

    1. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
    2. Install the air cleaner. Refer to: Air Cleaner .
    3. Install the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE . .

  47. Install the upper radiator hose to the coolant tube. Use the General Equipment: Hose Clamp Remover/Installer
    GFD387798Courtesy of FORD MOTOR COMPANY
  48. Install the degas bottle. Refer to: Degas Bottle .
  49. NOTE: Use the index-mark for location to aid in hood installation.

    Install the hood and the 4 nuts.

    Torque: 17 lb.ft (23 Nm)

    GFD387797Courtesy of FORD MOTOR COMPANY

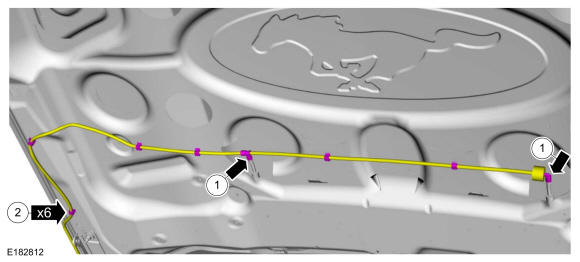

    1. Connect the windshield washer hose couplings. Refer to: Washer Hose Coupling .
    2. Attach the windshield washer hose retainers.
    GFD388075Courtesy of FORD MOTOR COMPANY
  50. Install the hood insulation and the pin-type retainers.
    GFD387794Courtesy of FORD MOTOR COMPANY
  51. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  52. Install the engine appearance cover and the nuts.

    Torque: 80 lb.in (9 Nm)

    GFD387344Courtesy of FORD MOTOR COMPANY
  53. Fill the engine with clean engine oil. Refer to: Specifications .
    GFD387419Courtesy of FORD MOTOR COMPANY
  54. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
  55. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

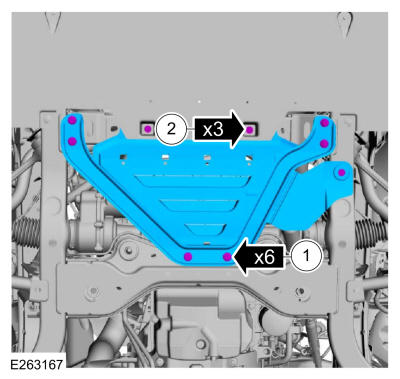

    1. Install the underbody shield and the bolts.

      Torque: 46 lb.ft (63 Nm)

    2. Install the underbody shield screws.
    GFD387679Courtesy of FORD MOTOR COMPANY
  56. Start and check the exhaust system for leaks.
  57. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
