Disassembly And Assembly Of Subassemblies: Piston: Disassembly

NOTE: If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod reassembly.

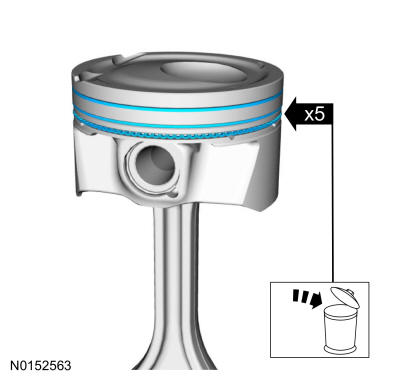

  1. Remove the piston rings and discard.
    GFD387975Courtesy of FORD MOTOR COMPANY

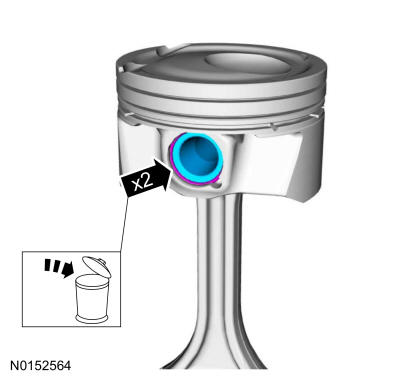

    • Remove the piston pin retainers and discard.

    • Remove the piston pin.

    GFD387976Courtesy of FORD MOTOR COMPANY

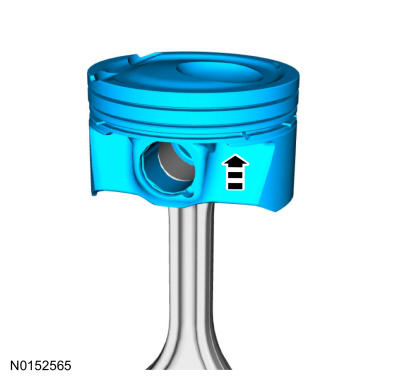

  3. NOTE: If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod for reassembly.

    Remove the piston from the connecting rod. Refer to: Piston Inspection .

GFD387977Courtesy of FORD MOTOR COMPANY
