Disassembly And Assembly Of Subassemblies: Piston: Assembly

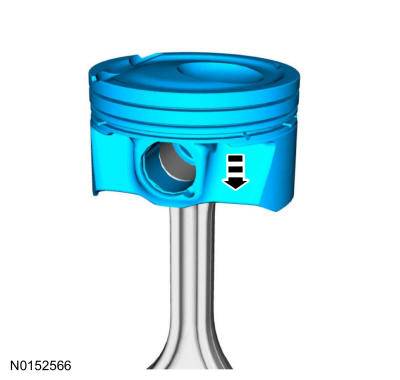

  1. NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.

    Install the piston to the connecting rod.

    GFD387978Courtesy of FORD MOTOR COMPANY

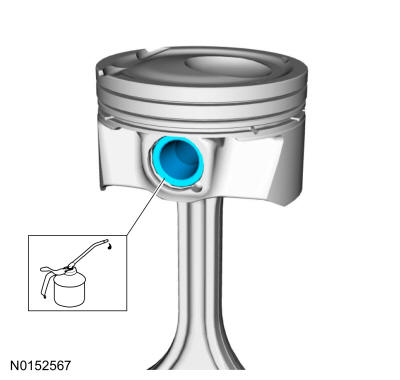

  2. Lubricate with clean engine oil and install the piston pin.
    GFD387979Courtesy of FORD MOTOR COMPANY

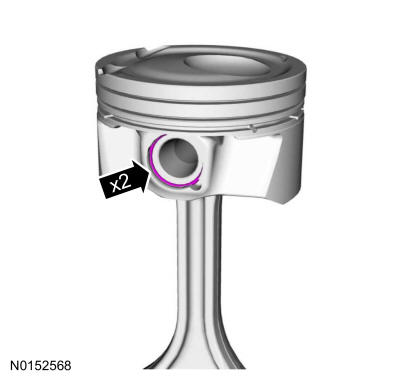

  3. Install the piston pin retainers.
    GFD387980Courtesy of FORD MOTOR COMPANY

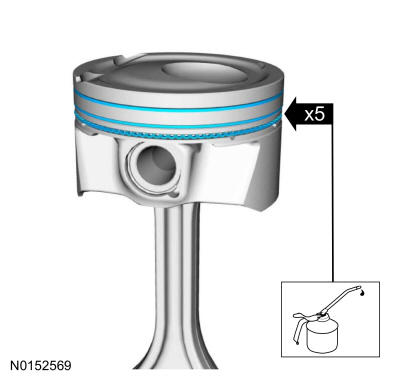

  4. Lubricate with clean engine oil and install the piston rings.
    GFD387981Courtesy of FORD MOTOR COMPANY
  5. NOTE: Align the piston rings on the piston.

    1. Upper oil control segment ring gap location.
    2. Oil control spacer gap location.
    3. Lower oil control segment ring gap location.

GFD387982Courtesy of FORD MOTOR COMPANY
