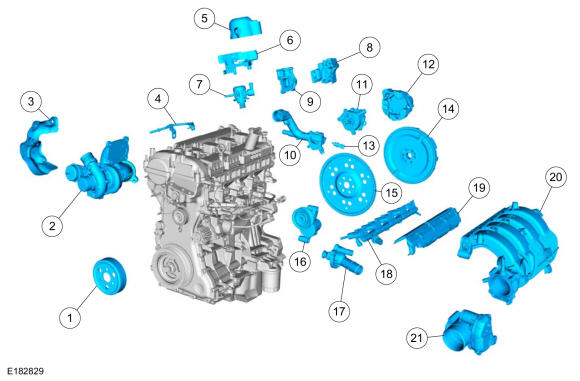

| 1 |
8509 |
Coolant pump pulley |
| 2 |
6K682 |
Turbocharger |
| 3 |
9G479 |
Turbocharger heat shield |
| 4 |
8B535 |
Coolant outlet tube |
| 5 |
9C374 |
High-pressure fuel pump cover |
| 6 |
9A397 |
High-pressure fuel pump bracket |
| 7 |
9D376 |
High-pressure fuel pump |
| 8 |
9U550 |
High-pressure fuel pump drive unit cover |
| 9 |
9A413 |
High-pressure fuel pump drive unit |
| 10 |
8K556 |
Coolant outlet |
| 11 |
2A451 |
Brake vacuum pump |
| 12 |
9U550 |
Brake vacuum pump cover |
| 13 |
12A648 |
Engine coolant temperature (ECT) sensor |
| 14 |
6477 |
Flywheel |
| 15 |
6375 |
Flexplate |
| 16 |
6A228 |
Accessory drive belt tensioner |
| 17 |
8575 |
Thermostat assembly |
| 18 |
9F797 |
Fuel rail |
| 19 |
9U550 |
Fuel rail shield |
| 20 |
9424 |
Intake manifold |
| 21 |
9F991 |
Throttle body |
