Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .

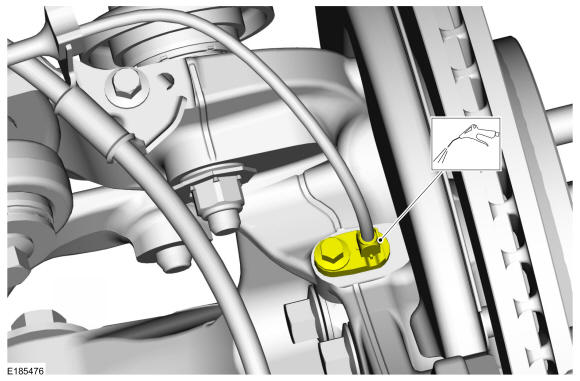

Using compressed air, clean the area surrounding the rear wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

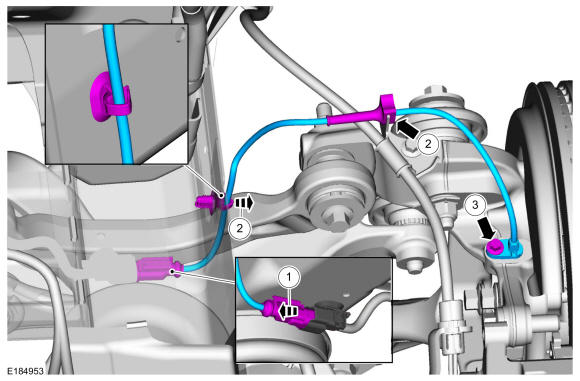

1. Disconnect the rear wheel speed sensor from electrical connector.
2. Detach the 2 sensor harness retainers.
3. Remove the bolt and the rear wheel speed sensor.
  Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
