Head Up Display (HUD) Module: Removal

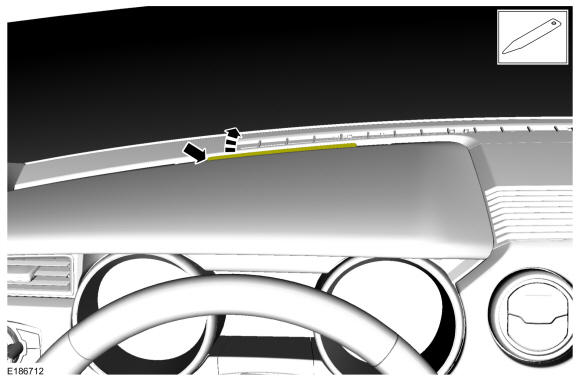

  1. Using a non-marring tool, release the tab and position the HUD up.
    GFD391562Courtesy of FORD MOTOR COMPANY

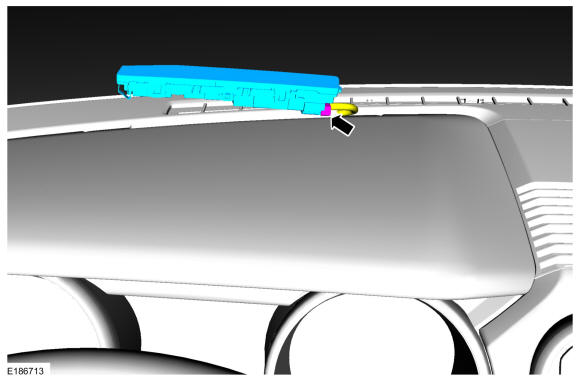

  2. Disconnect the electrical connector and remove the HUD.
GFD391563Courtesy of FORD MOTOR COMPANY
