Removal And Installation: Liftgate: Removal

WARNING: This page is about a different car, the 2019 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the liftgate upper trim panel.

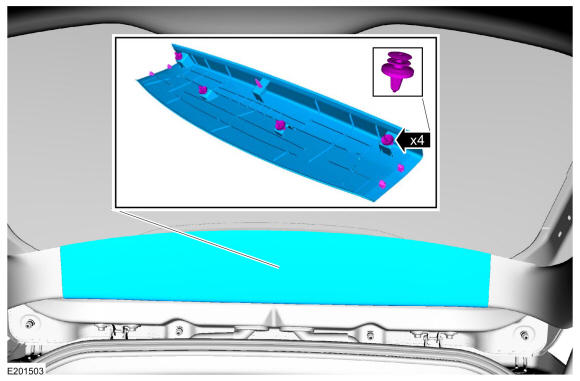

    GFD385538Courtesy of FORD MOTOR COMPANY
  2. NOTE: Liftgate side trim panels removed for clarity.

    1. Disconnect the electrical connectors.
    2. Remove the retainers.

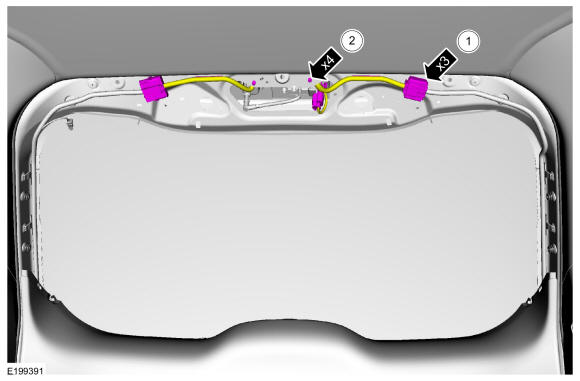

    GFD385539Courtesy of FORD MOTOR COMPANY
  3. Remove the grommets and route the harness out of the liftgate.

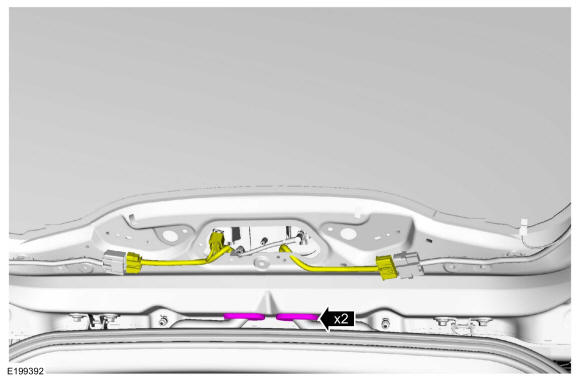

    GFD385540Courtesy of FORD MOTOR COMPANY
  4. Remove the rear washer hose.

    1. Remove the retainer.
    2. Disconnect the rear washer hose and route through the liftgate.

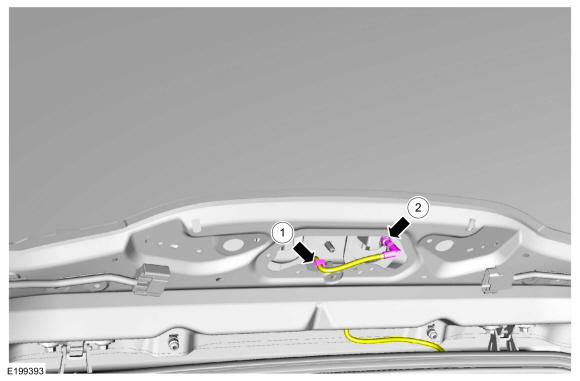

    GFD385541Courtesy of FORD MOTOR COMPANY
  5. Mark the location of the liftgate hinge bolts.

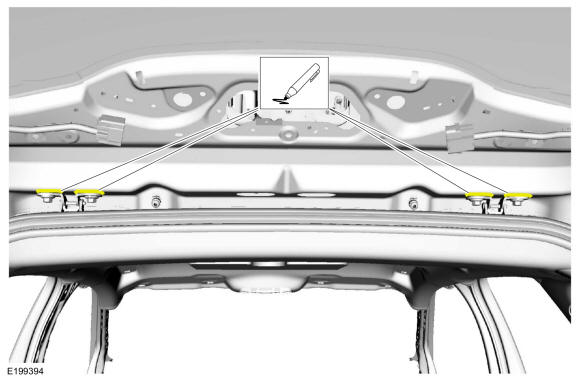

    GFD385542Courtesy of FORD MOTOR COMPANY
  6. NOTE: This step requires the aid of another technician.

    On both sides. Remove the clips holding the liftgate struts or the power liftgate motor and position aside.

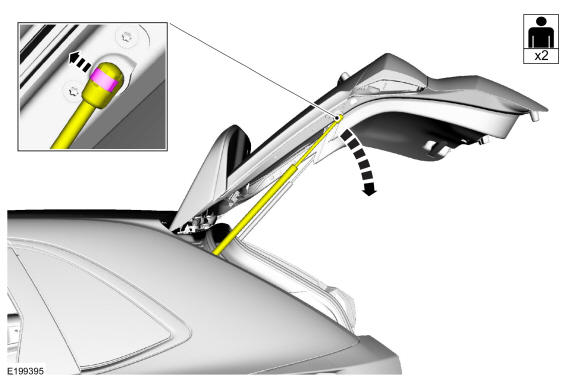

    GFD385543Courtesy of FORD MOTOR COMPANY
  7. NOTE: This step requires the aid of another technician.

    Remove the liftgate bolts and remove the liftgate from the vehicle.

    Torque

    : 22 lb.ft (30 Nm)

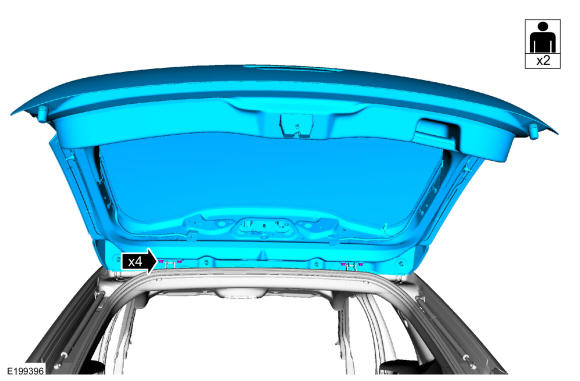

GFD385544Courtesy of FORD MOTOR COMPANY
