Hands-Free Liftgate Actuation Module: Removal

WARNING: This page is about a different car, the 2019 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear bumper cover. Refer to: Rear Bumper Cover .

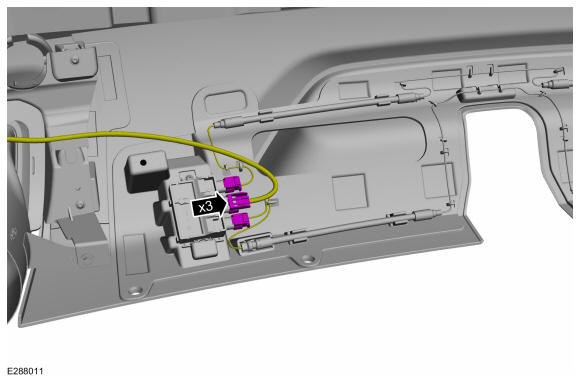

Disconnect the hands-free liftgate actuation module electrical connectors.

Courtesy of FORD MOTOR COMPANY

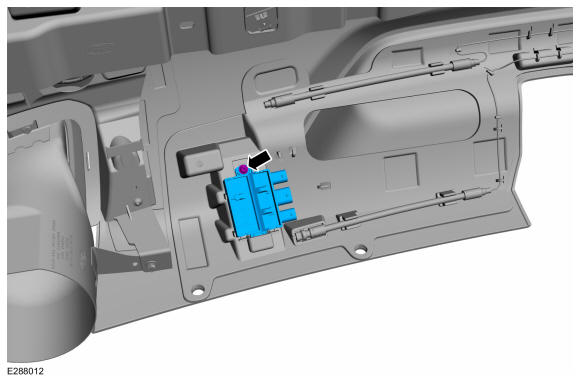

Remove the screw and the hands-free liftgate actuation module.
Torque

: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
