Rear Door Alignment
WARNING: This page is about a different car, the 2019 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Inspection
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.

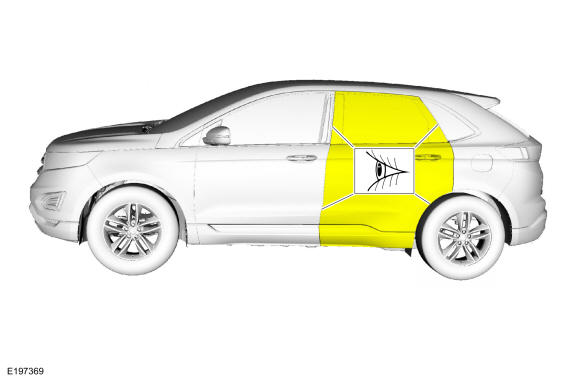

- Inspect the rear door-to-body dimensions. Refer to: Body and Frame .
Adjustment
All alignments

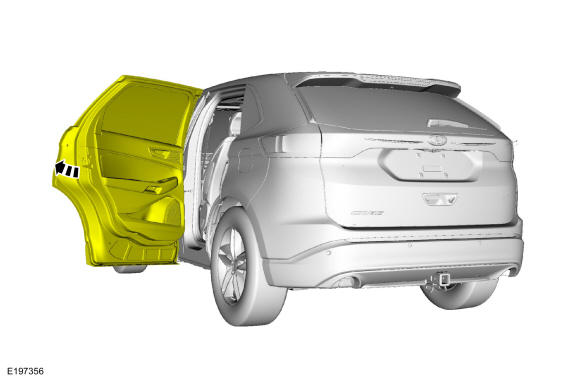

- Open the rear door.

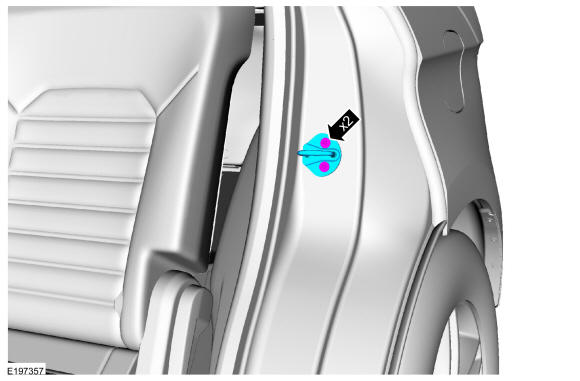

- Remove the bolts and the striker assembly.
Torque
: 18 lb.ft (25 Nm)

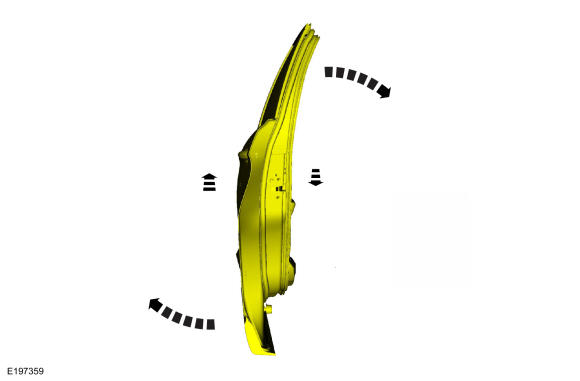

Rear door in and out, up and down alignment

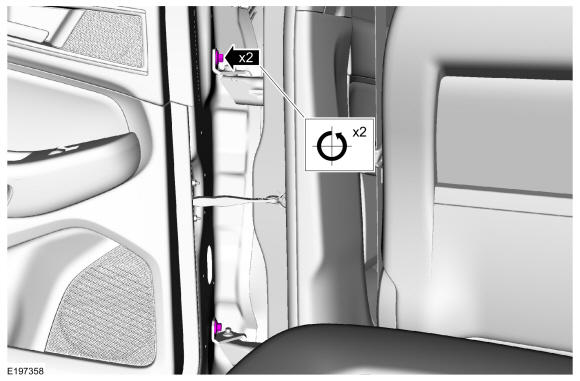

- Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)
- Adjust the door to specification. Refer to: Body and Frame
.

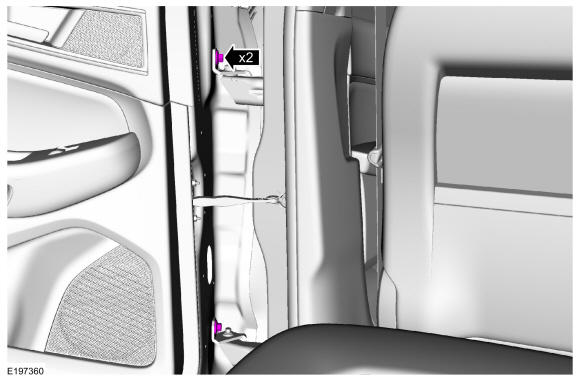

- Tighten the bolts.
Torque
: 35 lb.ft (48 Nm)
Rear door fore, aft and tilt alignment
- Remove the lower B-pillar trim panel. Refer to: B-Pillar Trim Panel .
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

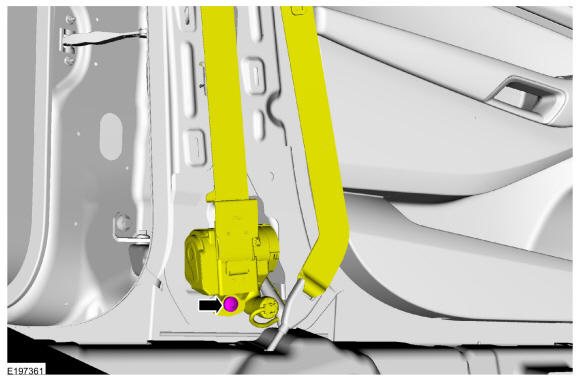

- Remove the bolt and position aside the safety belt retractor.

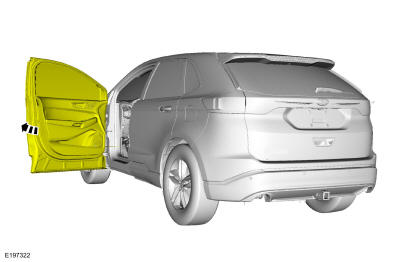

- Open the front door.

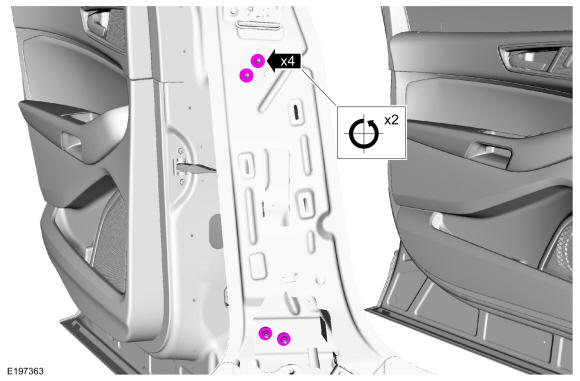

- Loosen the nuts to permit movement of the door. Loosen: : 2 turn(s)
- Carefully close the rear door.
- Carefully close the front door.

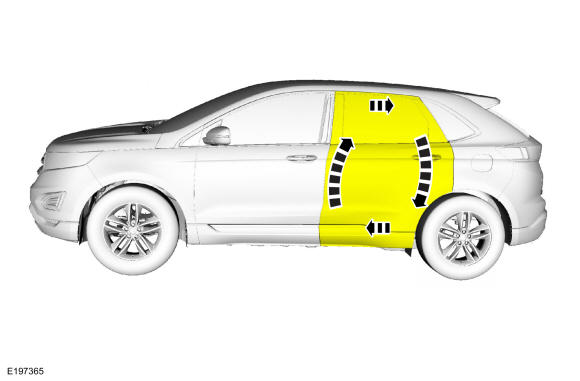

- Adjust the door to specification. Refer to: Body and Frame
.
- Carefully open the front door.

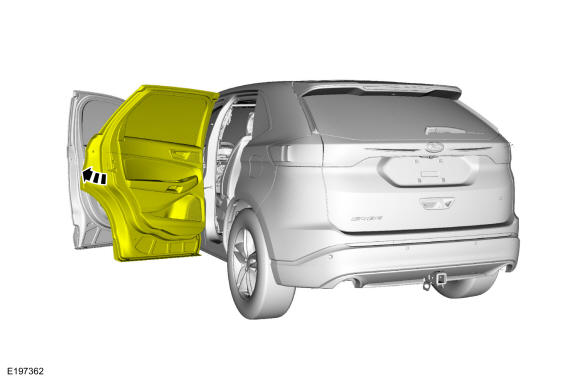

- Carefully open the rear door.
- Tighten the nuts.
Torque
: 22 lb.ft (30 Nm)
- Install the safety belt retractor and the bolt.
Torque
: 30 lb.ft (40 Nm)
-
NOTE: During installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.
Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
- Check the active restraint system for correct operation. Refer to: Seatbelt Systems
.
All alignments
- Install the striker assembly.
Torque
: 18 lb.ft (25 Nm)
- Inspect the body-to-rear door dimensions. Refer to: Body and Frame .
