Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2020 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

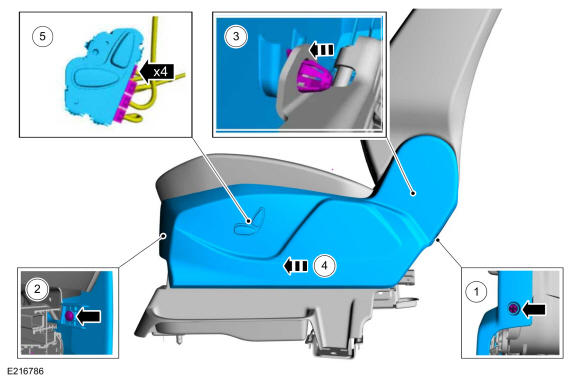

1. Remove the screw.
  Torque: 27 lb.in (3 Nm)
2. Remove the screw.
  Torque: 27 lb.in (3 Nm)
3. Pull the side shield to release it from the backrest.
4. Slide the side shield forward.
5. Disconnect the power seat electrical connector and remove the side shield.
Courtesy of FORD MOTOR COMPANY

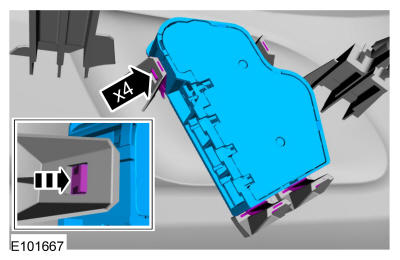

Release the locking clips and remove the seat control switch.

Courtesy of FORD MOTOR COMPANY
