Climate Control Assembly: Removal
WARNING: This page is about a different car, the 2020 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

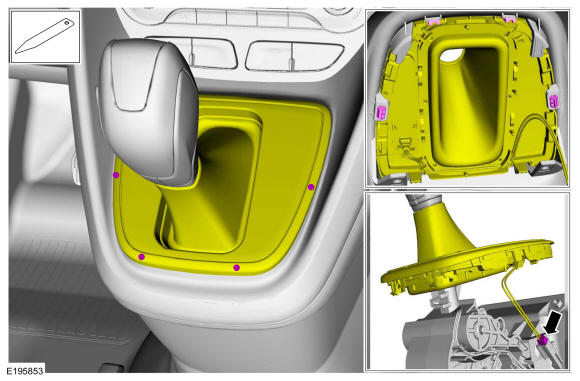

- Release the clips and position the selector lever bezel aside.
- Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

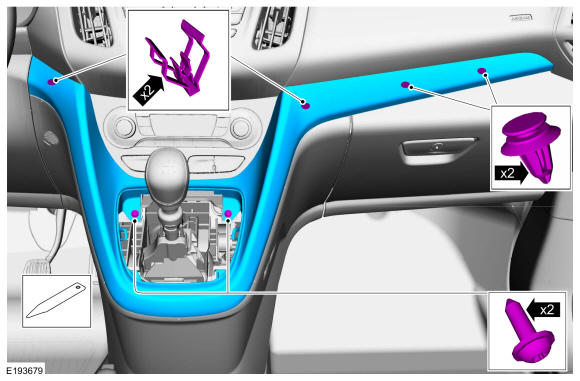

- Remove the retainers, release the clips and remove the floor console upper trim panel. Use the General Equipment: Interior Trim Remover

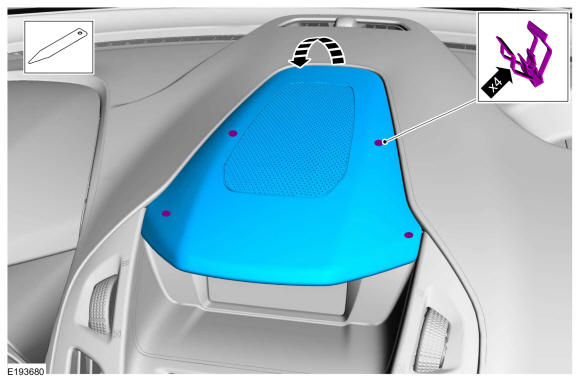

- Release the clips and remove the instrument panel center upper trim panel. Use the General Equipment: Interior Trim Remover

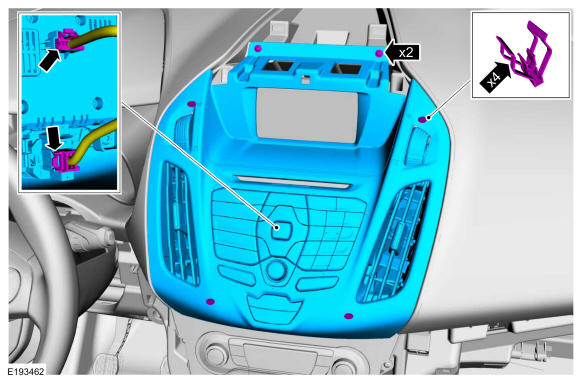

- Remove the retainers, release the clips and remove the FCIM.
- Disconnect the electrical connectors.

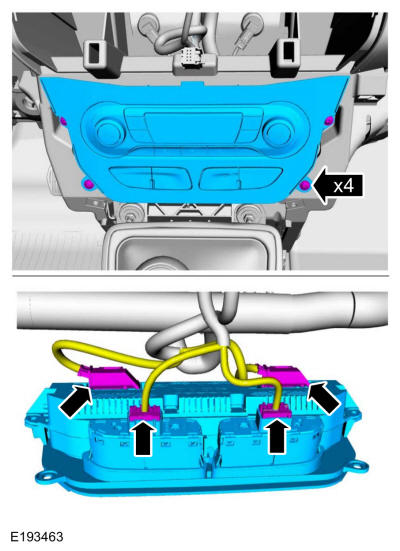

- Remove the retainers and the climate control assembly.
- Disconnect the electrical connectors.
-
NOTE: This step is only necessary when installing a new component.

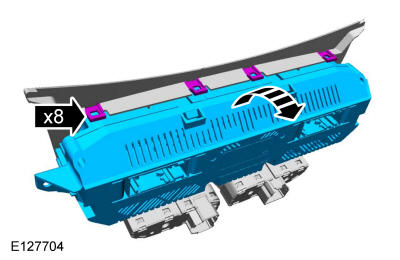

Release the retaining clips and remove the HVAC control module.
