Differential Housing Cover: Notes

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING .

Material

Item	Specification
Motorcraft® Clear Silicone Rubber TA-32	ESB-M4G92-A
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant (US); Motorcraft® SAE 80W-90 Premium Axle Lubricant (Canada) XY-80W90-QL (US); CXY-80W90-1L (Canada)	WSP-M2C197-A

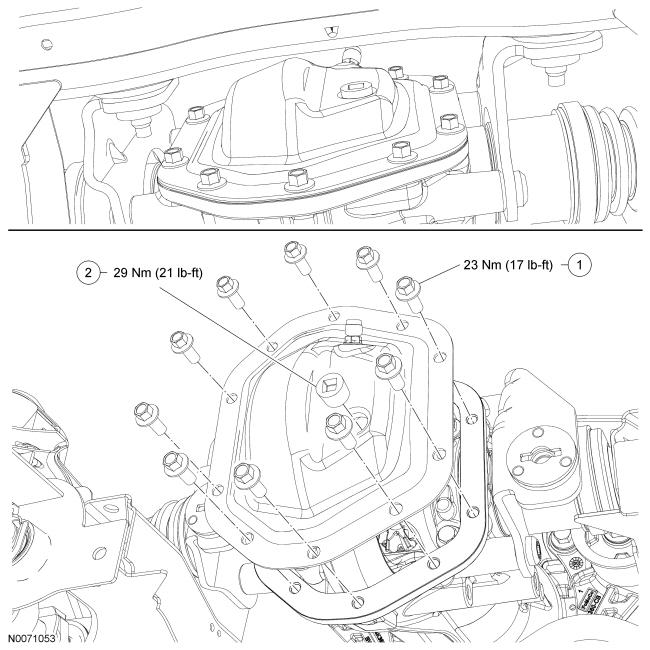

Fig 1: Differential Housing Cover Replacement Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W505262	Differential housing cover bolt (10 required)
2	4N282	Filler plug
