Remote Function Actuator (RFA) Module: Installation
WARNING: This page is about a different car, the 2018 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

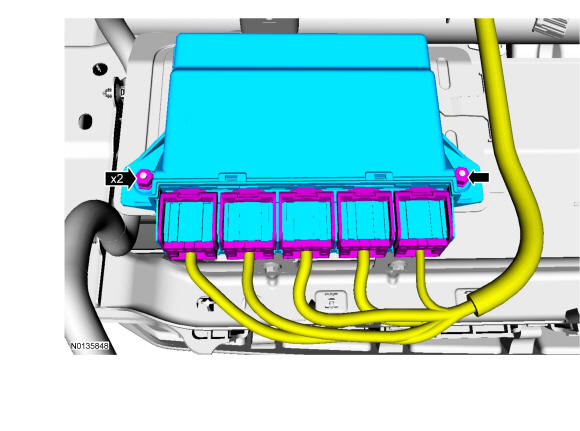

- Install the RFA module.
- Connect the RFA module electrical connectors.
- Tighten to 3 Nm (27 lb-in).

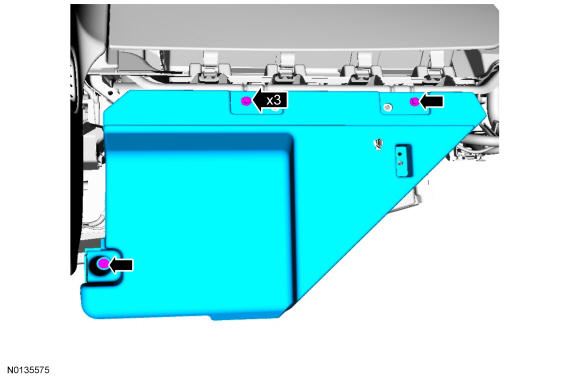

- Install the RH side instrument panel hush panel.
- Program the Intelligent Access (IA) keys (minimum of 2) into the new RFA module. For additional information, refer to KEY PROGRAMMING USING DIAGNOSTIC EQUIPMENT .
- Carry out the parameter reset between the RFA module and the Body Control Module(BCM). For additional information, refer to PASSIVE ANTI-THEFT SYSTEM (PATS) PARAMETER RESET .
- Download the RFA module configuration information from the scan tool to the new RFA module by following the scan tool on screen instructions.
- Turn the ignition ON.
- Carry out the keyless entry keypad code reset. For additional information, refer to Keyless Entry Keypad Code Programming .
- Carry out the RFA module self-test to confirm all DTCs have been cleared.
