Ambient Lighting Module: Notes
WARNING: This page is about a different car, the 2018 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

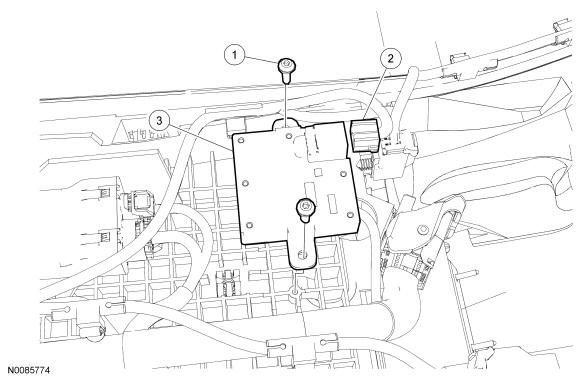

| Item | Part Number | Description |
|---|---|---|
| 1 | W701679 | Ambient lighting module screws (2 required) |
| 2 | -- | Ambient lighting module electrical connector (part of 14D375) |
| 3 | 13C788 | Ambient lighting module |
