Removal And Installation: Driveshaft: Notes
WARNING: This page is about a different car, the 2018 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

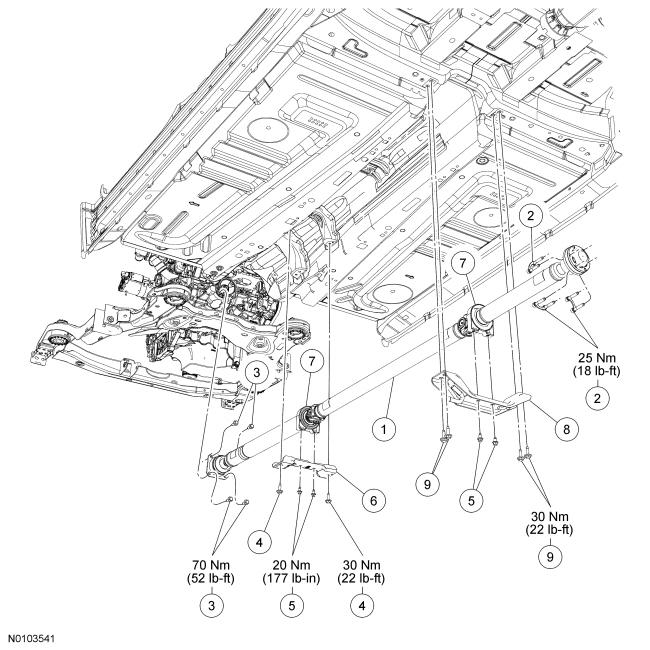

| Item | Part Number | Description |
|---|---|---|
| 1 | 4R602 | Driveshaft assembly |
| 2 | W790063 | Pinion flange bolt and washer assemblies (3 required) |
| 3 | W711918 | Power Transfer Unit (PTU) flange bolts (4 required) |
| 4 | W701834 | Front center bearing bracket outer bolts (2 required) |
| 5 | W500220 | Center bearing bracket inner bolts (4 required) |
| 6 | 4B403 | Front center bearing bracket (part of 4602) |
| 7 | -- | Center bearings (2 required) (part of 4602) |
| 8 | 4B403 | Rear center bearing bracket (part of 4602) |
| 9 | W701834 | Rear center bearing bracket outer bolts (4 required) |
