Fuel Charging And Controls - 3.5L Ti-VCT
>>
Description And Operation
>>
Fuel Charging and Controls
>>
System Operation
System Operation

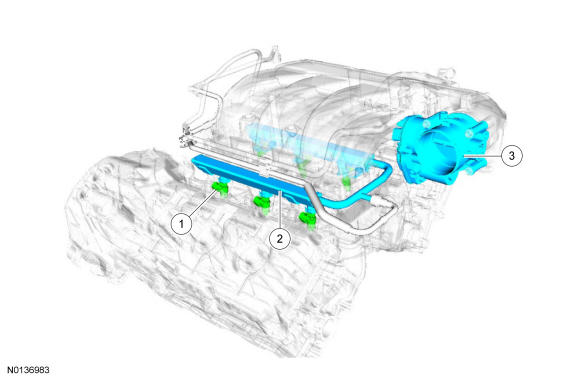

3.5L Ti-VCT
Courtesy of FORD MOTOR COMPANY
Item
Description
Comments
1
Fuel injector
-
2
Fuel rail
-
3
TB
-

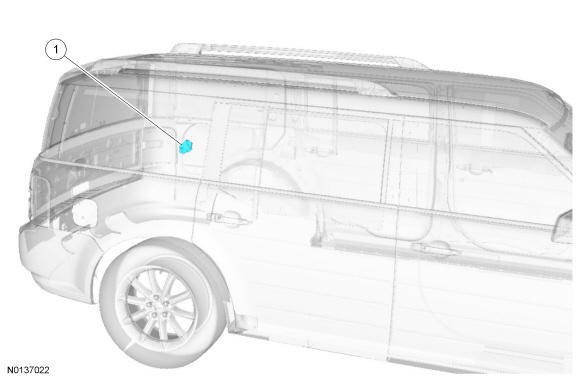

FPCM
Courtesy of FORD MOTOR COMPANY
Item
Description
Comments
1
FPCM
-
