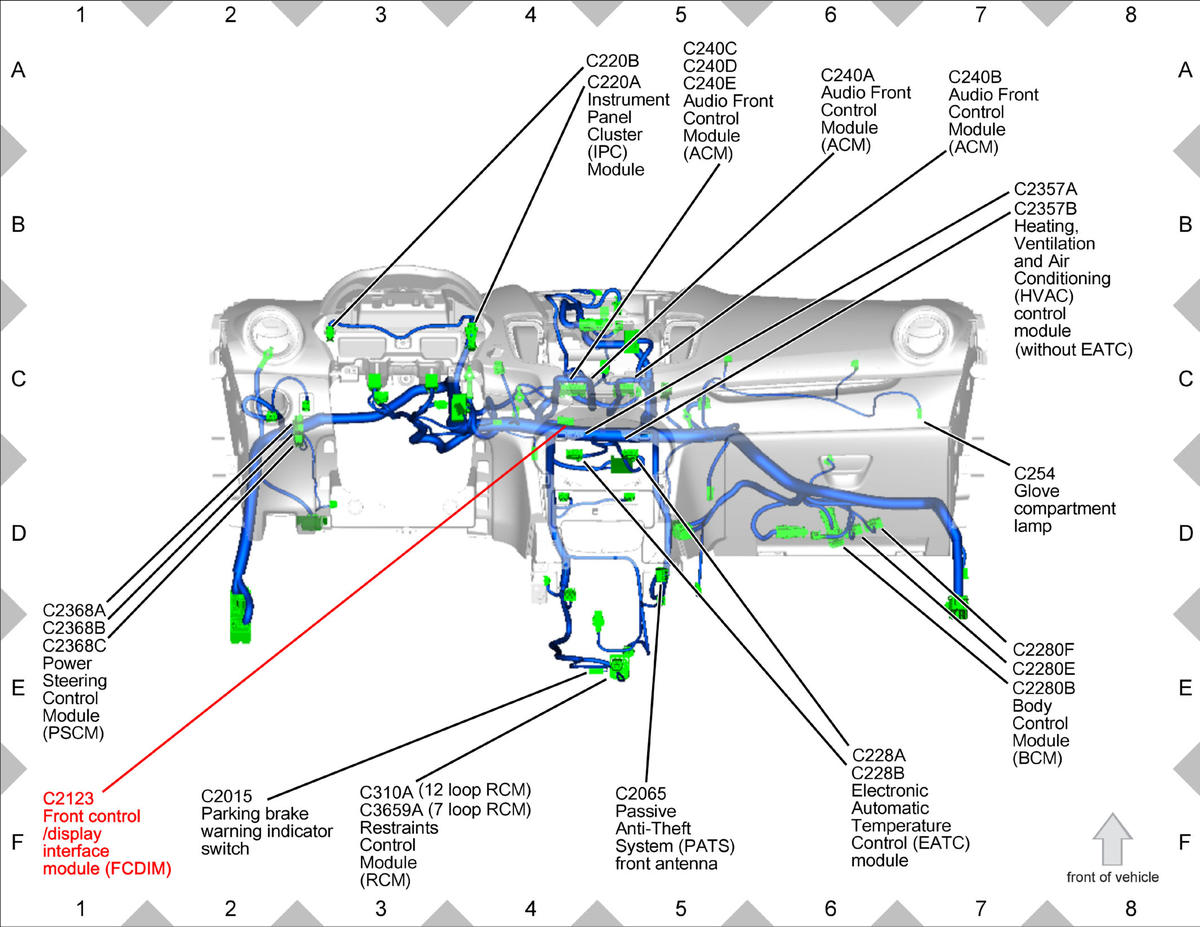

Front Control Display Interface Module (FCDIM) Dash Panel Center

GFDWR16588

Courtesy of FORD MOTOR COMPANY
