Bearing Inspection
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

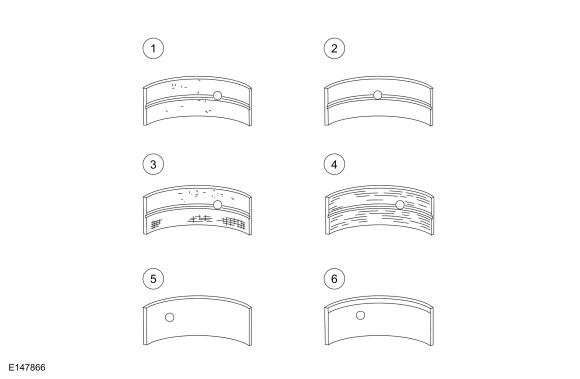

Inspection
-
- Cratering - fatigue failure
- Spot glazing - incorrect seating
- Scratching - dirty engine oil
- Base exposed - poor lubrication
- Both edges worn - journal damaged
- One edge worn - journal tapered or bearing not seated
