OEM Electrical Wiring Diagram Introduction: Introduction

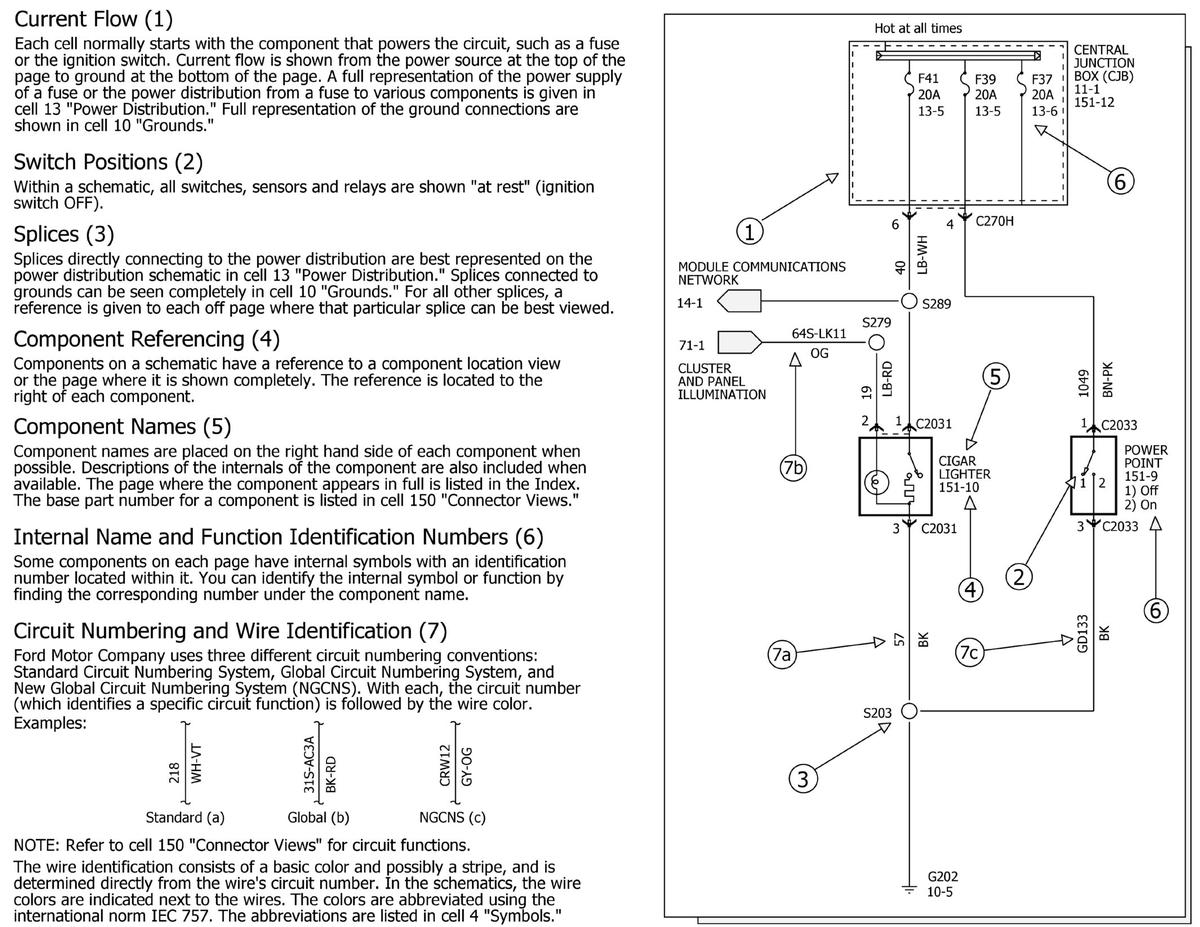

GFDWR17695Courtesy of FORD MOTOR COMPANY

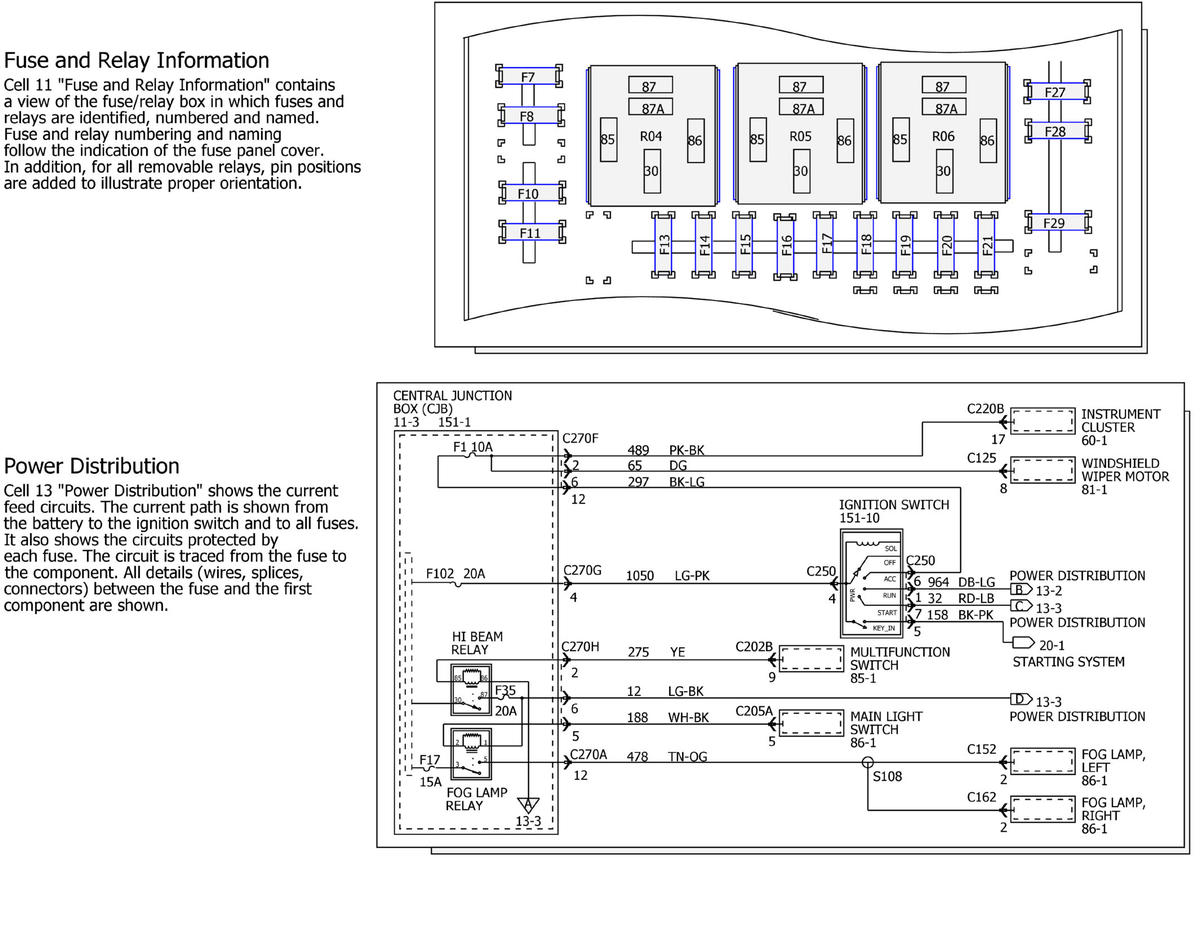

GFDWR17696Courtesy of FORD MOTOR COMPANY

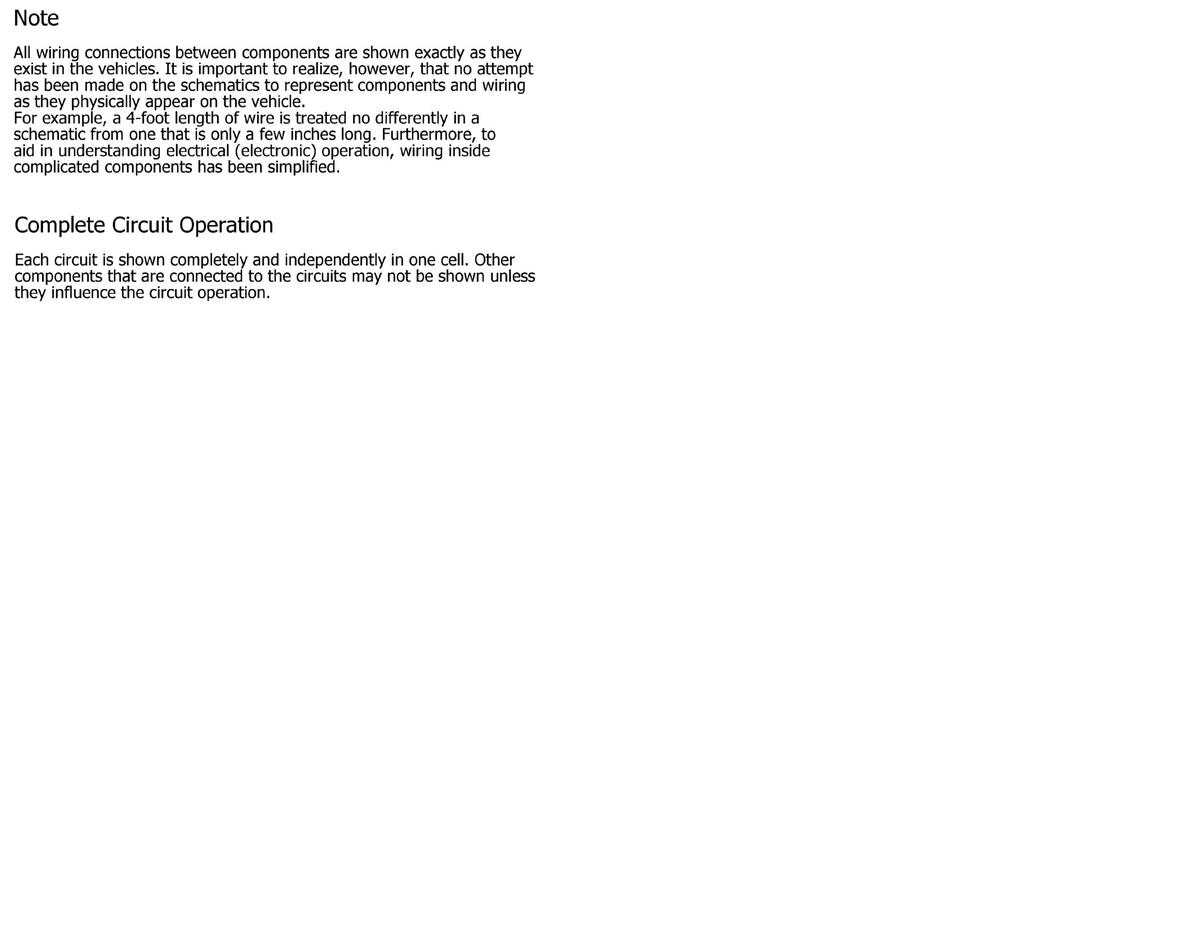

GFDWR17697Courtesy of FORD MOTOR COMPANY

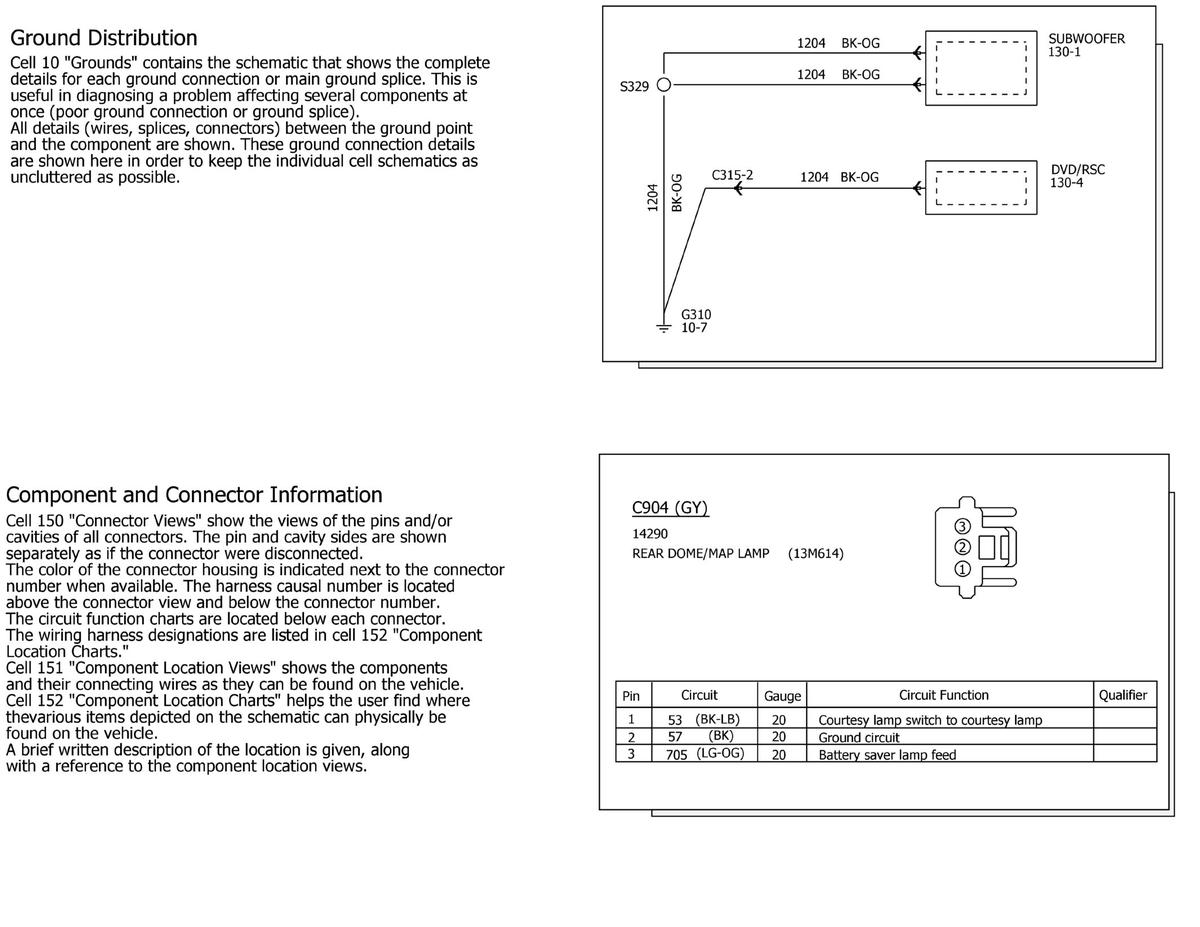

GFDWR17698Courtesy of FORD MOTOR COMPANY

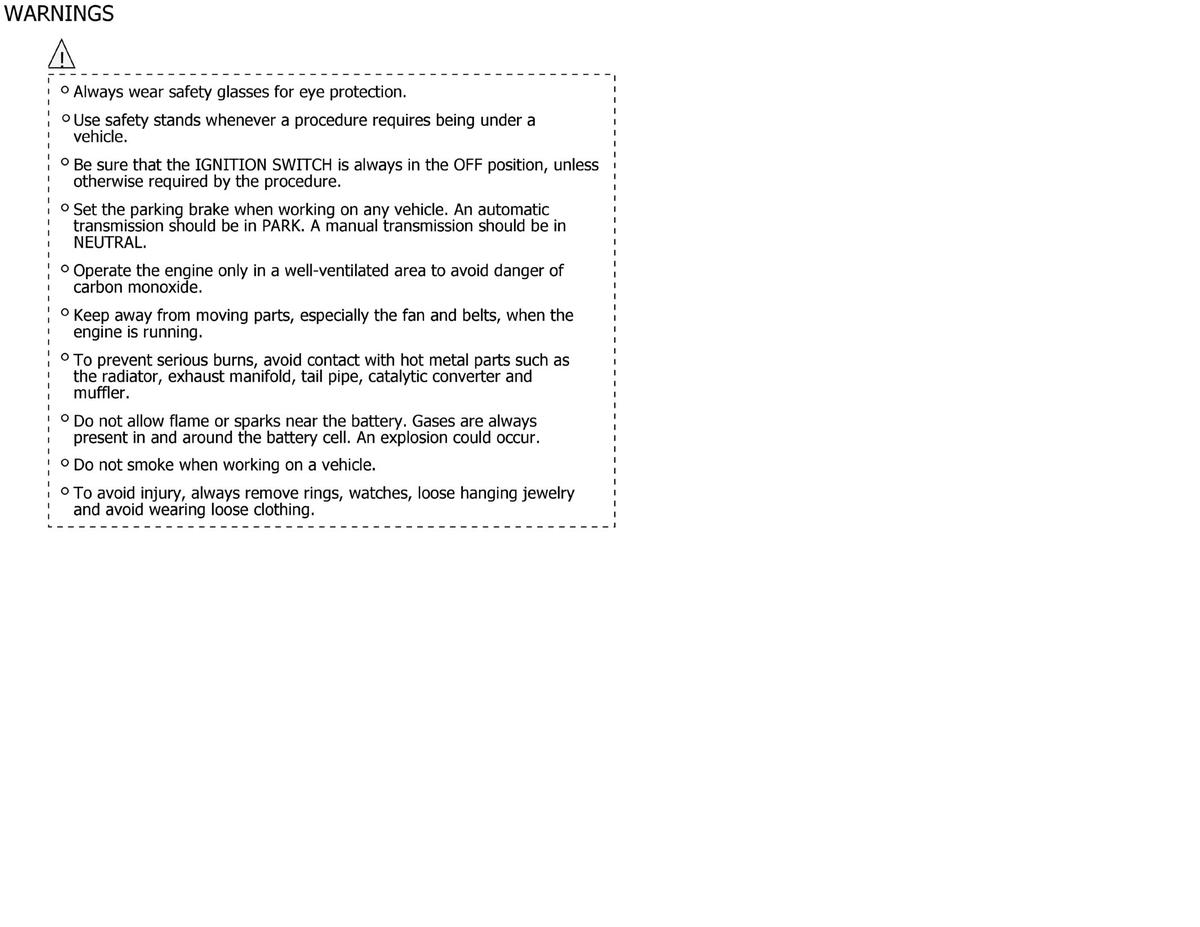

GFDWR17699Courtesy of FORD MOTOR COMPANY
