Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

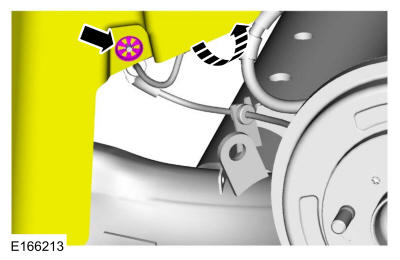

Remove the retainer and pull the rear splash shield outward.

Courtesy of FORD MOTOR COMPANY

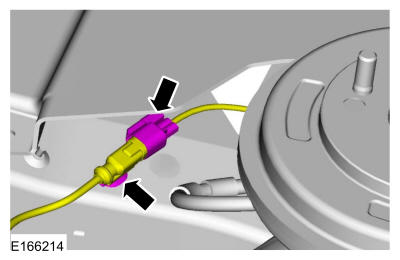

Disconnect the electrical connector and detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the component before removal.

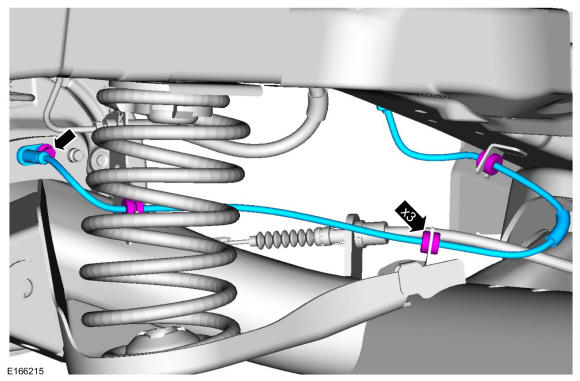

Detach the wiring retainers, remove the bolt and the rear wheel speed sensor.

Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
