Lumbar Assembly: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front seat backrest cover. Refer to: Front Seat Backrest Cover .

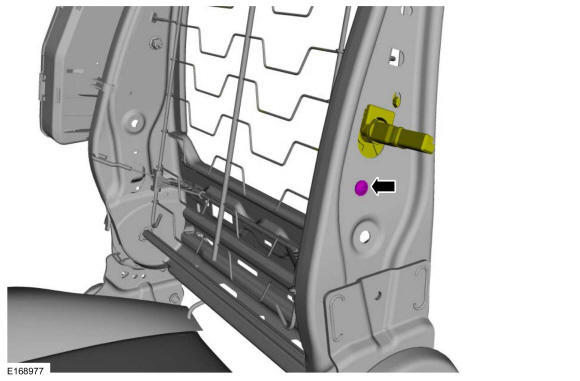

  2. Remove the screw and position the lumbar actuator aside.

    Torque: 31 lb.in (3.5 Nm)

    GFD302762Courtesy of FORD MOTOR COMPANY

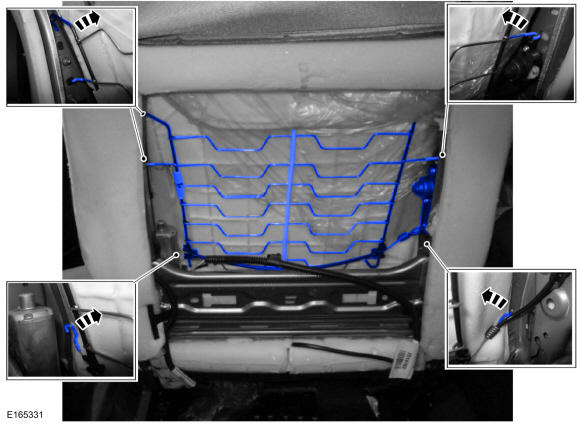

  3. Detach the lumbar assembly J-hooks and remove the lumbar assembly.
GFD302763Courtesy of FORD MOTOR COMPANY
