Instrument Panel Upper Section: Removal

All vehicles

1. Remove the driver knee airbag. Refer to: Driver Knee Airbag .
2. Remove the steering wheel. Refer to: Steering Wheel .

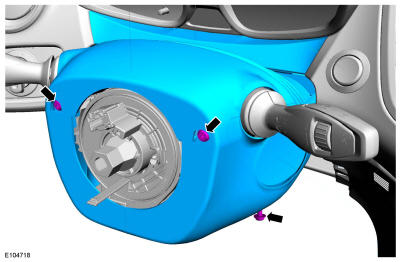

3. Remove the screws and the steering column shroud.

   Courtesy of FORD MOTOR COMPANY

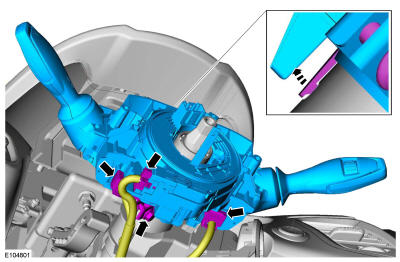

4. NOTE: Make sure the clockspring does not rotate.

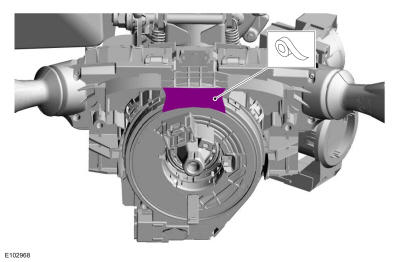

   Use tape to prevent the clockspring from rotating.

   Courtesy of FORD MOTOR COMPANY

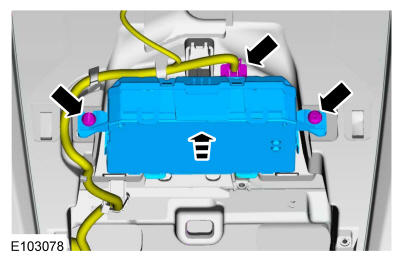

5. Disconnect the electrical connectors, remove the bolt, release the retaining clip and remove the SCCM.

   Courtesy of FORD MOTOR COMPANY

6. Remove the IPC. Refer to: Instrument Panel Cluster (IPC) .
7. Remove the headlamp switch. Refer to: Headlamp Switch .

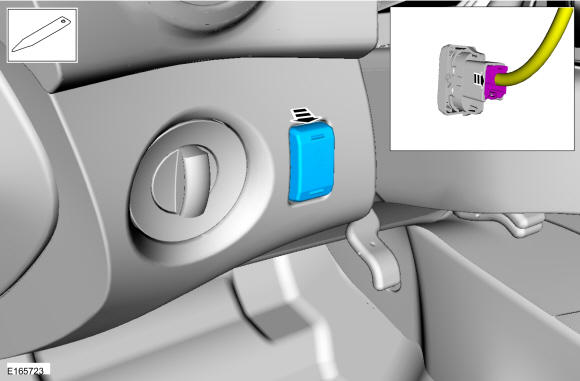

8. Remove the instrument panel dimmer switch and disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

9. Remove the ACM. Without Touchscreen, Refer to: Audio Front Control Module (ACM) . With Touchscreen, Refer to: Audio Front Control Module (ACM) .
10. If equipped. Disconnect the electrical connector, remove the screws and the FCDIM.

    Torque: 11 lb.in (1.2 Nm)

    Courtesy of FORD MOTOR COMPANY

11. If equipped. Remove the screws and the FDIM. Disconnect the electrical connectors.

    Torque: 14 lb.in (1.6 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Remove the floor console. Refer to: Floor Console .

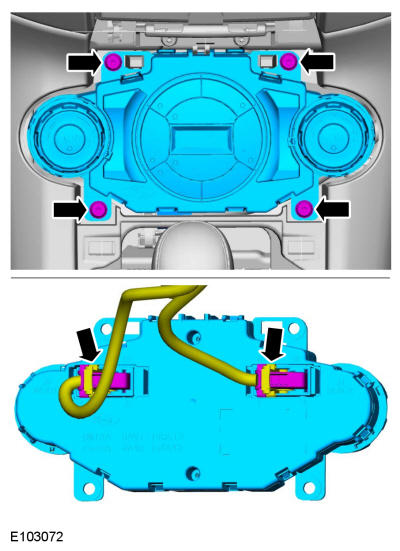

13. Remove the screws and the HVAC control module. Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

14. Release the retaining tabs and remove the glove compartment.

    Courtesy of FORD MOTOR COMPANY

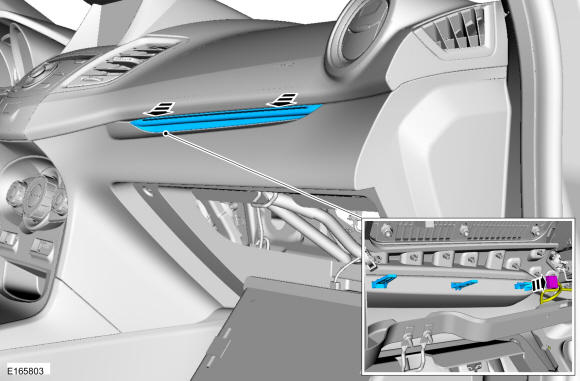

15. Release the retaining tabs and remove the instrument panel passenger side finish panel. Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

16. If equipped, remove the APIM. Refer to: SYNC Module [APIM] .

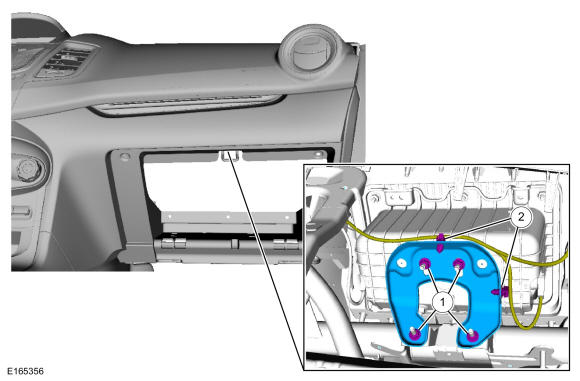

17. 1. Remove the nuts.

       Torque: 53 lb.in (6 Nm)

    2. Detach the wiring harness retainers, position the wiring harness aside and remove the passenger airbag mounting bracket.

    Courtesy of FORD MOTOR COMPANY

18. On both sides, remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .

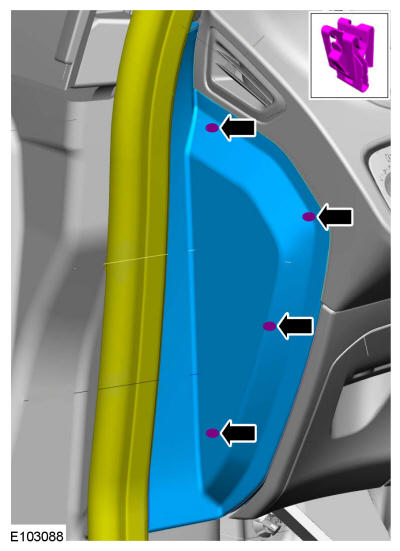

19. On both sides. Position the front door weatherstrip aside, release the clips and remove the instrument panel finish panel.

    Courtesy of FORD MOTOR COMPANY

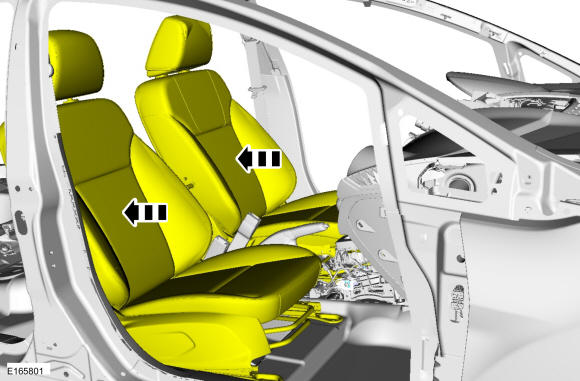

20. Move both the front seats to the full rearward position.

    Courtesy of FORD MOTOR COMPANY

21. Remove the bolts.

    Torque: 18 lb.in (2 Nm)

    Courtesy of FORD MOTOR COMPANY

    If equipped

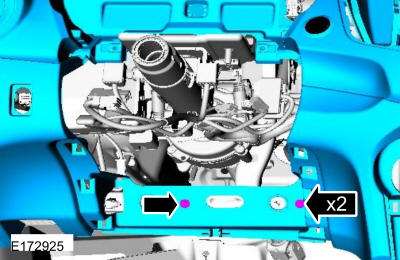

22. Remove the bolts.

    Torque: 18 lb.in (2 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

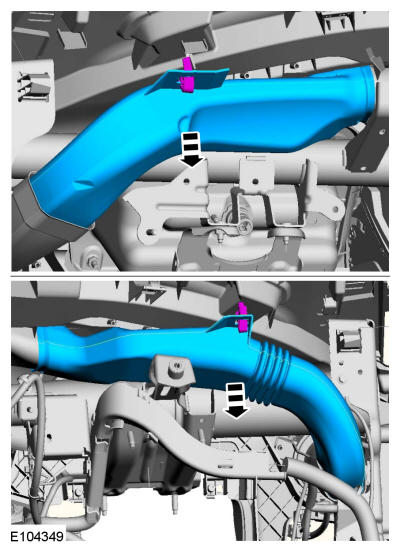

23. NOTE: The RH and LH defroster ducts stay in the vehicle when the upper instrument panel is removed.

    With the upper instrument panel loose release the RH and LH defroster duct clips.

    Courtesy of FORD MOTOR COMPANY

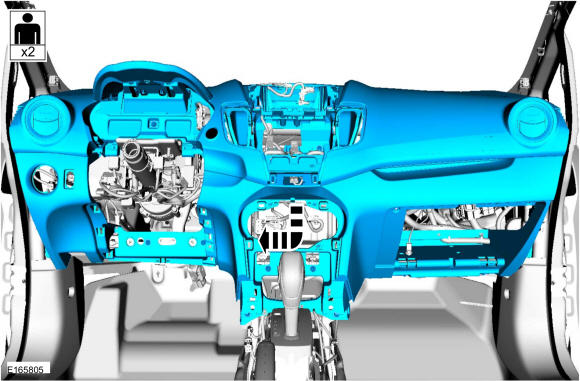

24. NOTE: To avoid damage to the instrument panel, an assistant is required when carrying out this step.
    NOTE: Note the harness routing and make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

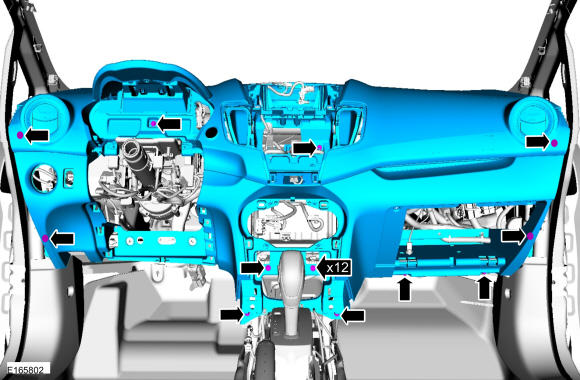

    Remove the instrument panel upper section.
