Floor Console: Removal

Vehicles with manual transmission

1. Remove the gearshift lever boot. Refer to: Gearshift Lever Boot .

   Vehicles with automatic transmission

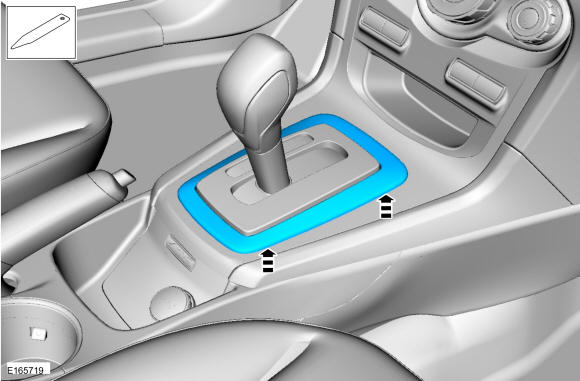

2. Remove the selector lever finish panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

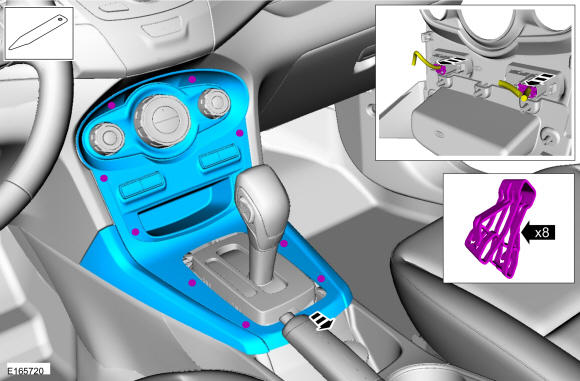

3. Release the clips and remove the instrument panel lower trim panel. Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

   All vehicles

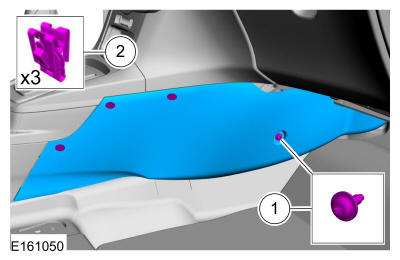

4. On both sides.
   1. Remove the screw.
   2. Release the clips and remove the floor console side trim panel.

   Courtesy of FORD MOTOR COMPANY

   If equipped

5. NOTE: Automatic transmission shown, manual transmission similar.

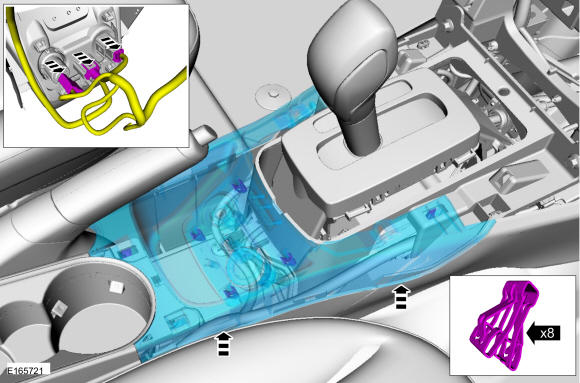

   Release the clips and remove the floor console upper trim panel. Disconnect the electrical connectors.

   Courtesy of FORD MOTOR COMPANY

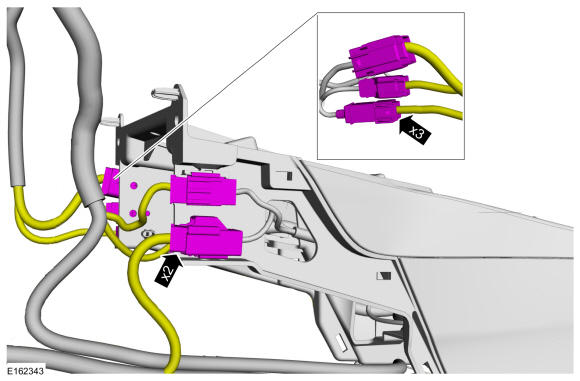

6. Disconnect the electrical connectors.

   Courtesy of FORD MOTOR COMPANY

   Console without armrest

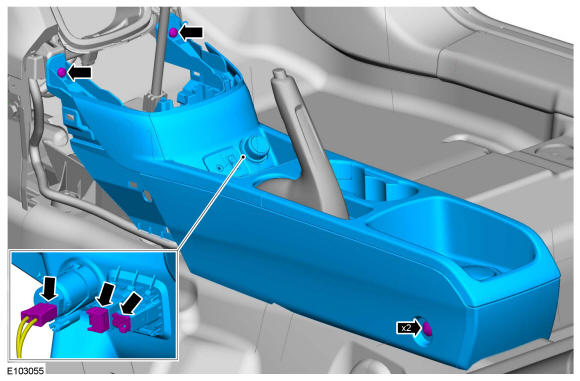

7. Remove the screws and the floor console. Disconnect the electrical connectors.

   Torque: 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

   Console with armrest

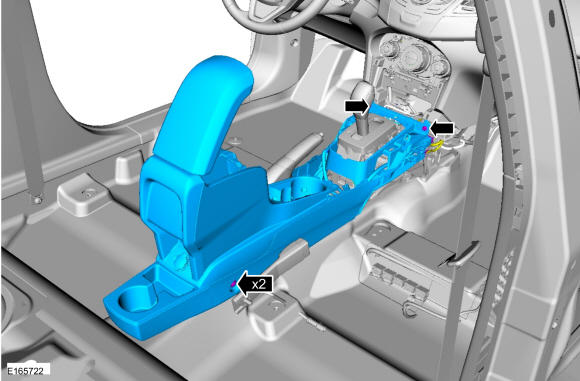

8. Remove the screws, the bolts, disconnect the electrical connectors and remove the floor console.

   Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
