Front Seat Backrest: Removal

NOTE: Driver seat shown, passenger seat similar.

Remove the front seat. Refer to: Front Seat .

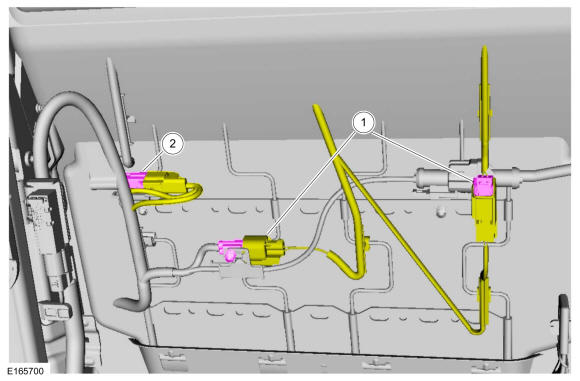

1. If equipped. Disconnect the heated seat electrical connectors and position the wiring harness aside.
2. Disconnect the electrical connector and position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY
NOTE: Base seat shown, Recaro seat similar.

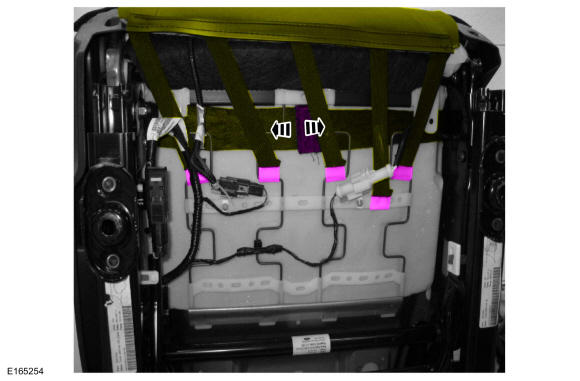

Detach the backrest cover straps and position the backrest cover aside.

Courtesy of FORD MOTOR COMPANY
1. Remove the bolt cover.
2. Remove the bolt.
3. Remove the recline handle.
Courtesy of FORD MOTOR COMPANY

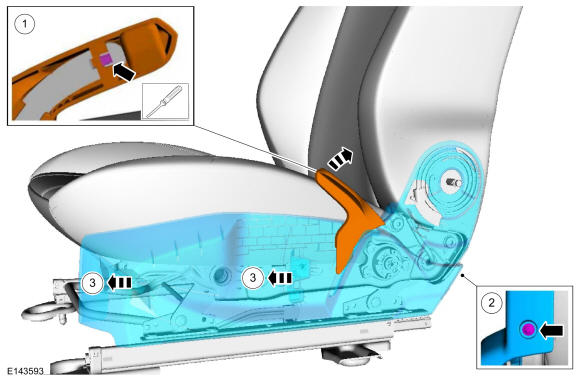

1. If equipped. Release the tab and remove the height adjustment handle. Use the General Equipment: Flat Headed Screw Driver
2. Remove the screw.
3. Slide forward and remove the side shield.
Courtesy of FORD MOTOR COMPANY

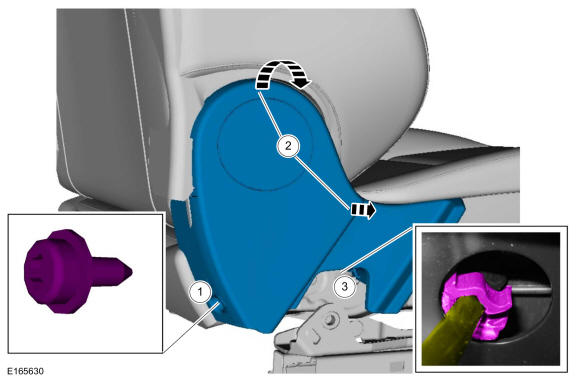

1. Remove the screw.
2. Pull the recliner cover up then out.
3. Release the clip and remove the recliner cover.
Courtesy of FORD MOTOR COMPANY

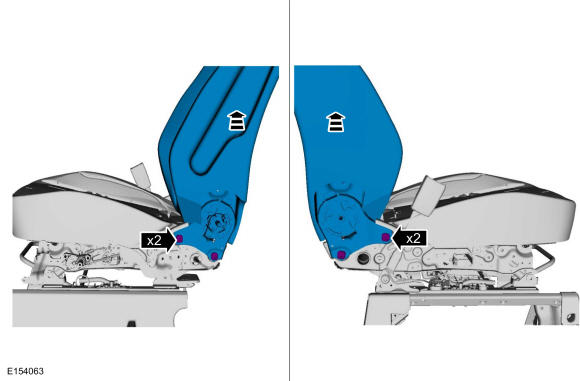

Remove the bolts and the front seat backrest.

Courtesy of FORD MOTOR COMPANY
