Transfer Case Control Module (TCCM): Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

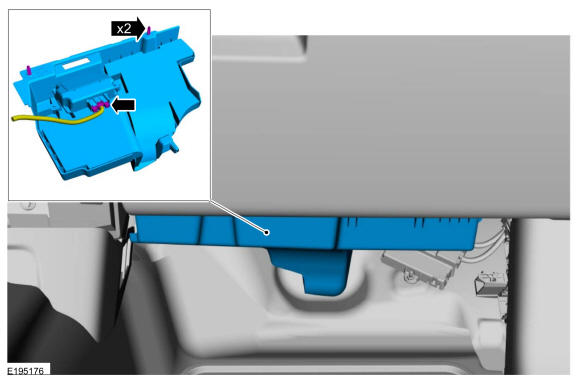

1. Remove the CJB cover.

   Courtesy of FORD MOTOR COMPANY

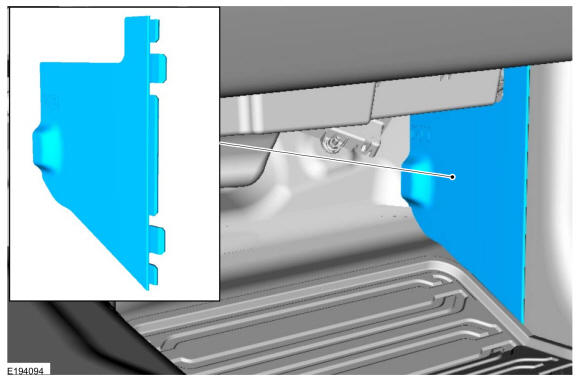

2. Remove and disconnect the lower access panel.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LH TCCM nut when removing the TCCM.

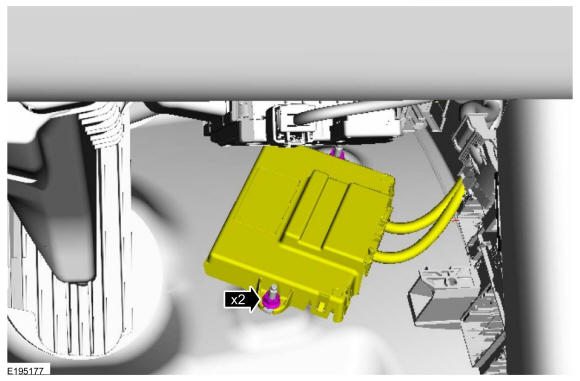

   Loosen the LH TCCM nut and remove the RH TCCM nut.

   Torque: 62 lb.in (7 Nm)

   Courtesy of FORD MOTOR COMPANY

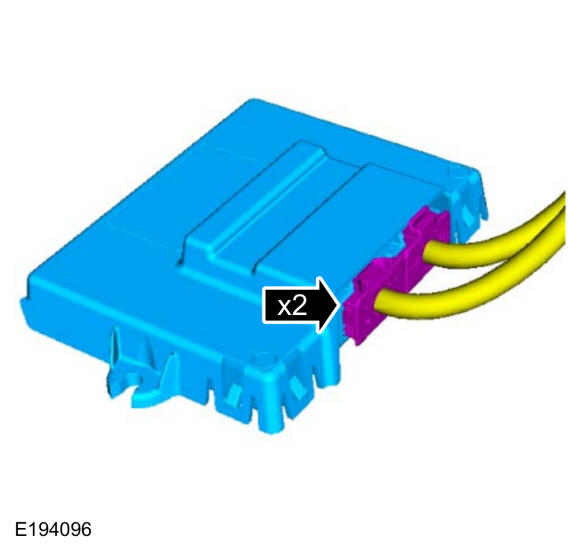

4. Disconnect the electrical connectors and remove the TCCM.
