Front Differential Bracket: Installation

  1. Refer to: Joining Techniques .

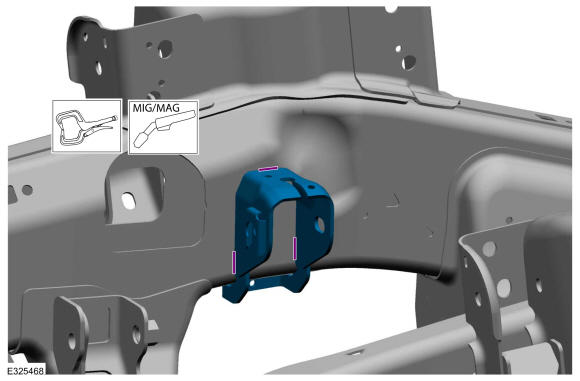

  2. Loosely clamp the replacement bracket in a preliminary position. Perform measurements to verify proper placement of the new bracket, then clamp firmly into position. With all measurements verified and the new bracket in proper position, tack-weld the new bracket in place. Use the General Equipment: Locking Pliers. Use the General Equipment: MIG/MAG Welding Equipment
    GFD370050Courtesy of FORD MOTOR COMPANY

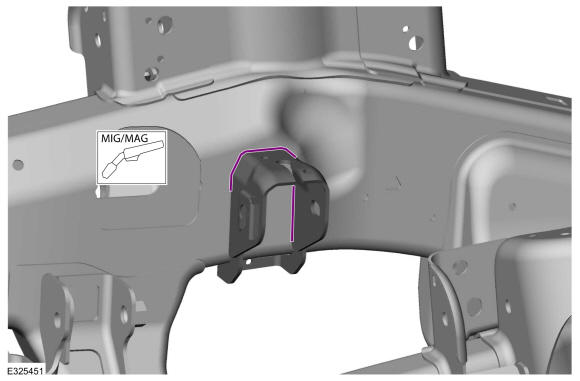

  3. Re-check measurements, then solid weld the bracket to the frame. Use the General Equipment: MIG/MAG Welding Equipment
    GFD370051Courtesy of FORD MOTOR COMPANY

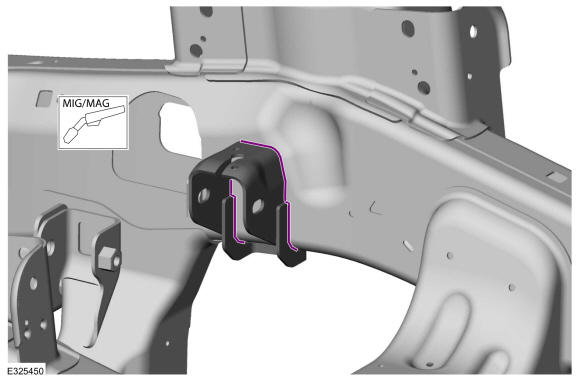

  4. Re-check measurements, then solid weld the bracket to the frame. Use the General Equipment: MIG/MAG Welding Equipment
    GFD370052Courtesy of FORD MOTOR COMPANY
  5. Metal finish the repair area using typical metal finishing techniques.
  6. Restore corrosion protection. Refer to: Corrosion Prevention .
  7. Install the front axle assembly. Refer to: Axle Assembly . With 9.75 Inch Ring Gear, Refer to Axle Assembly .
