Connector Repair Procedures

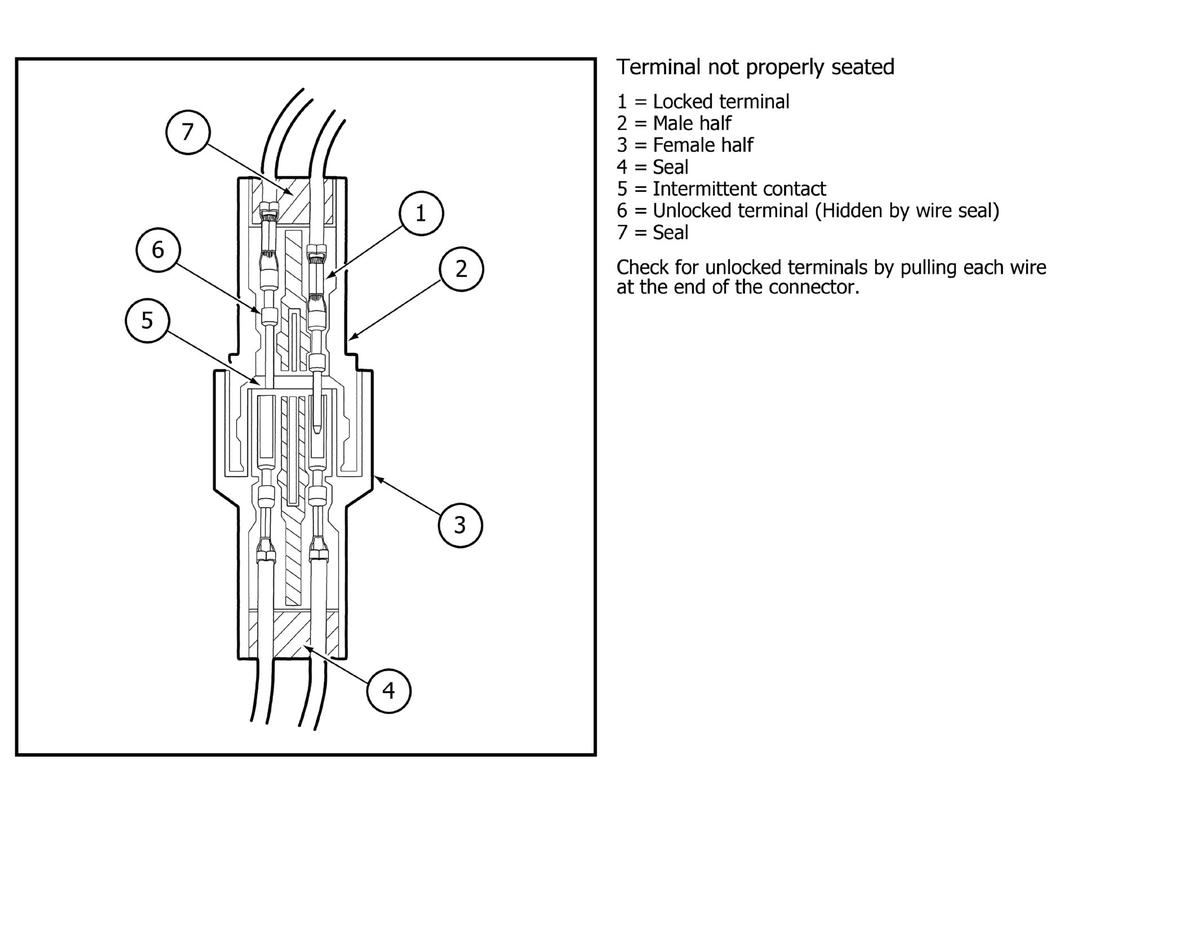

GFDWR45117Courtesy of FORD MOTOR COMPANY

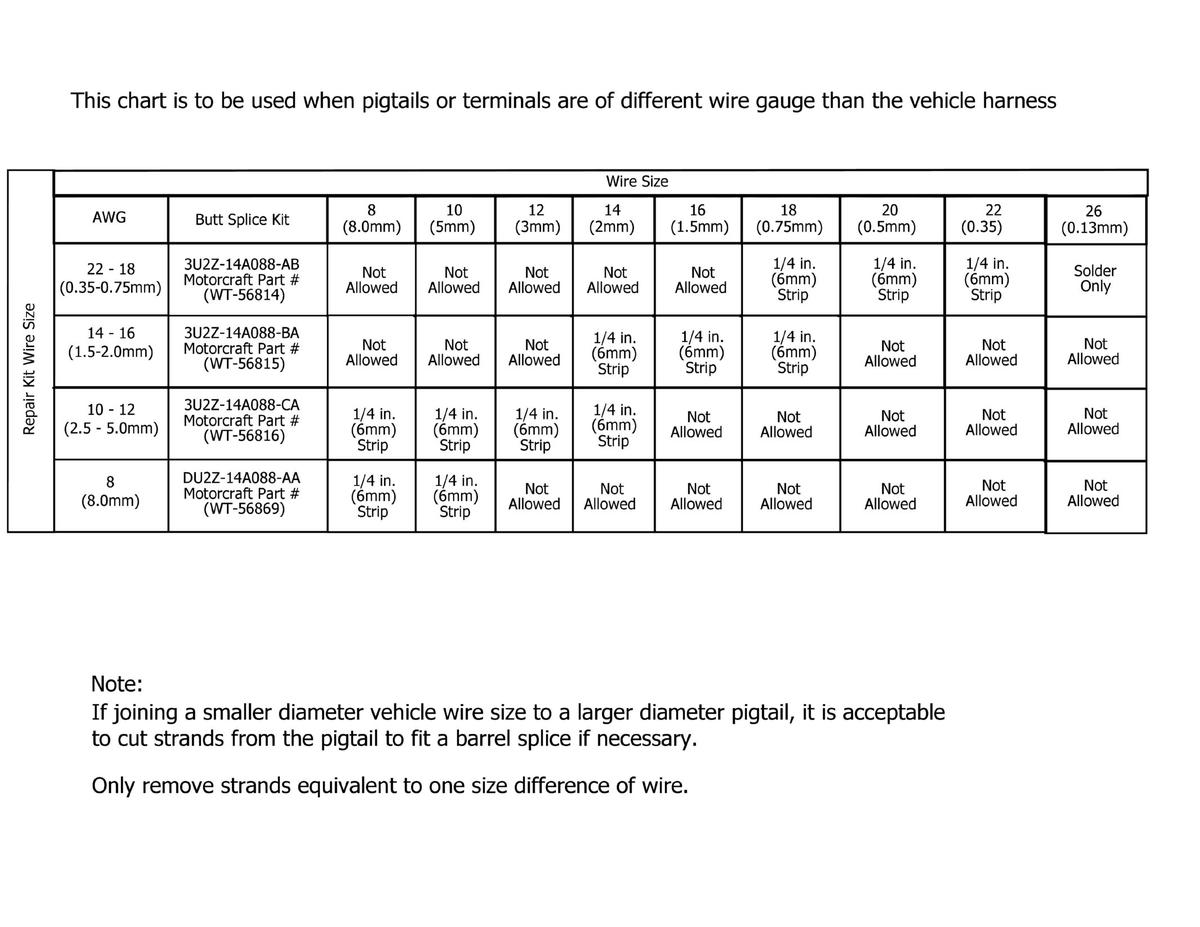

GFDWR45118Courtesy of FORD MOTOR COMPANY

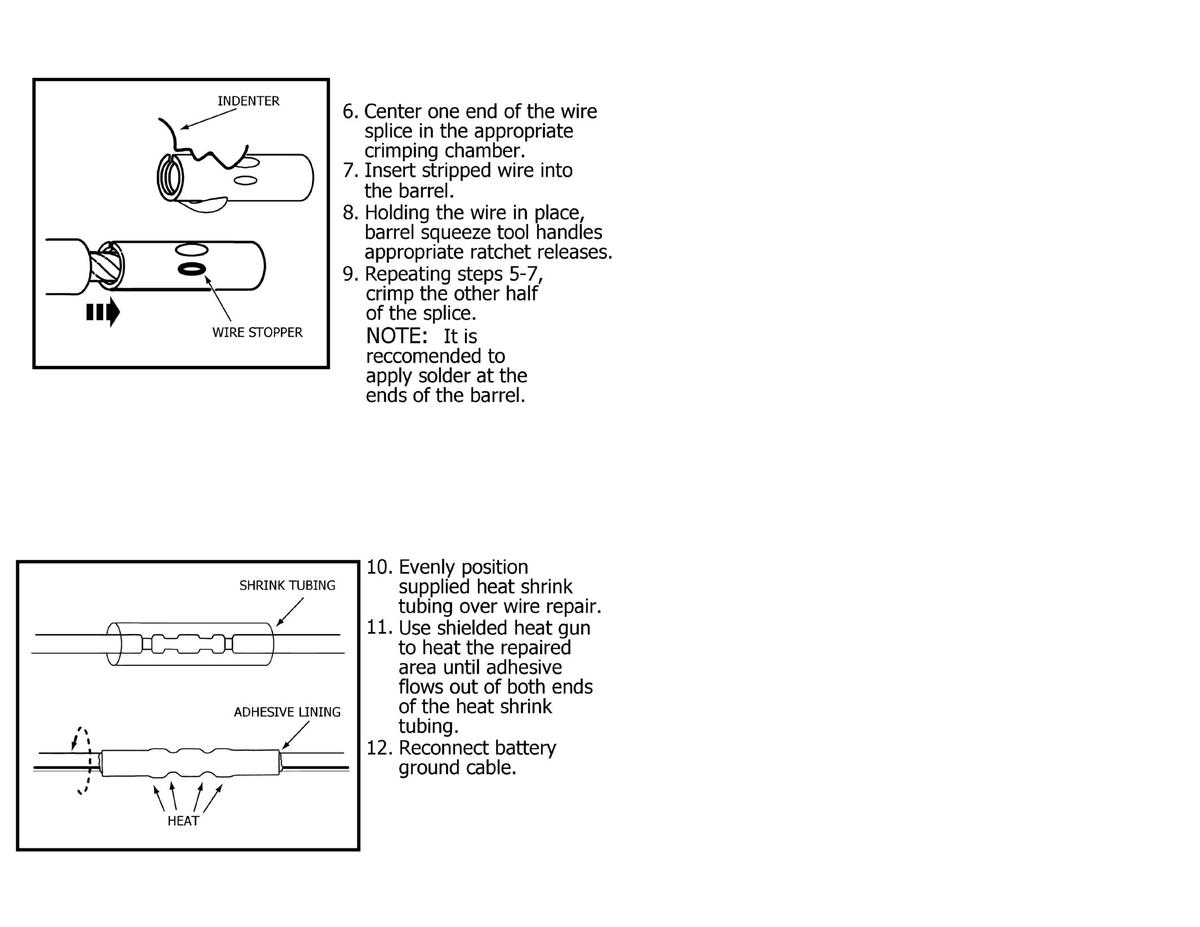

GFDWR45119Courtesy of FORD MOTOR COMPANY

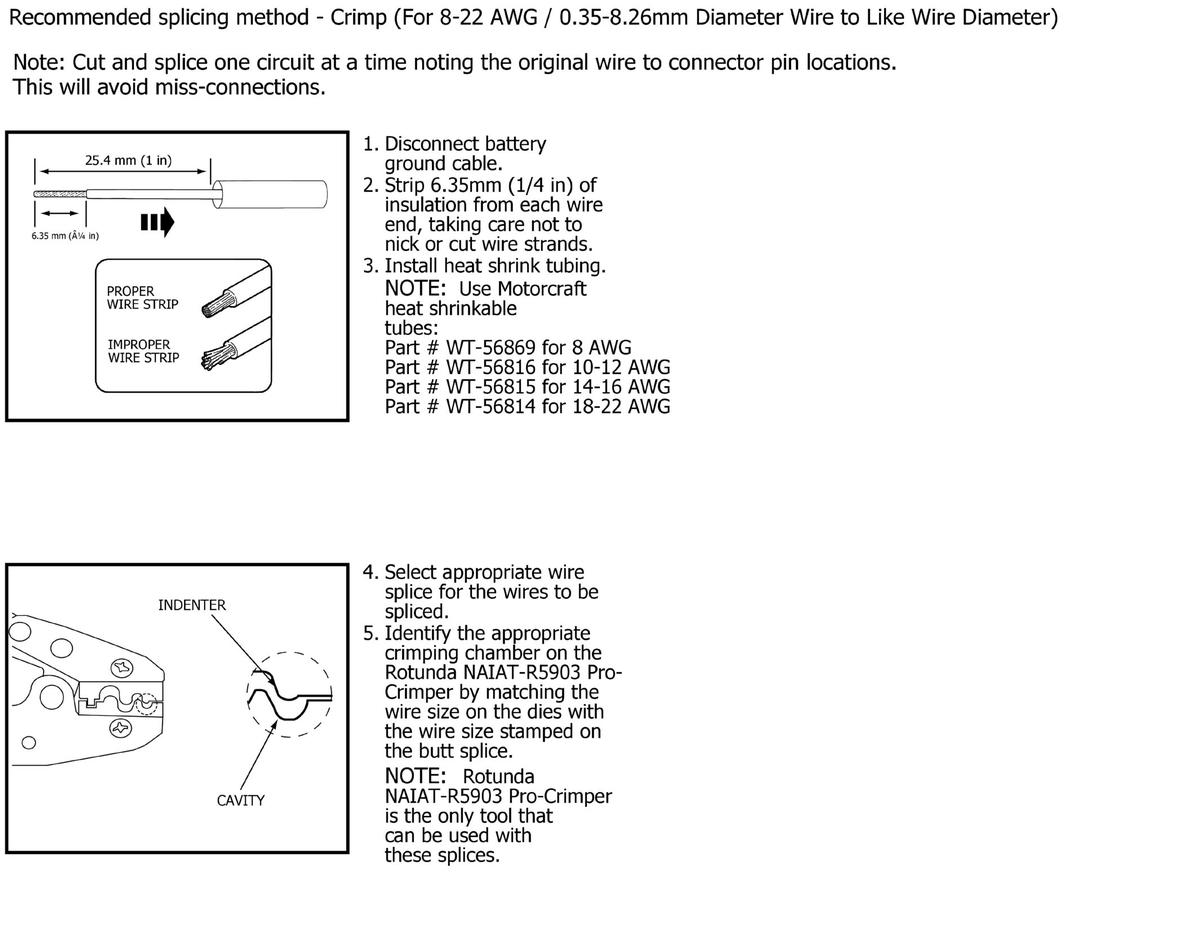

GFDWR45120Courtesy of FORD MOTOR COMPANY

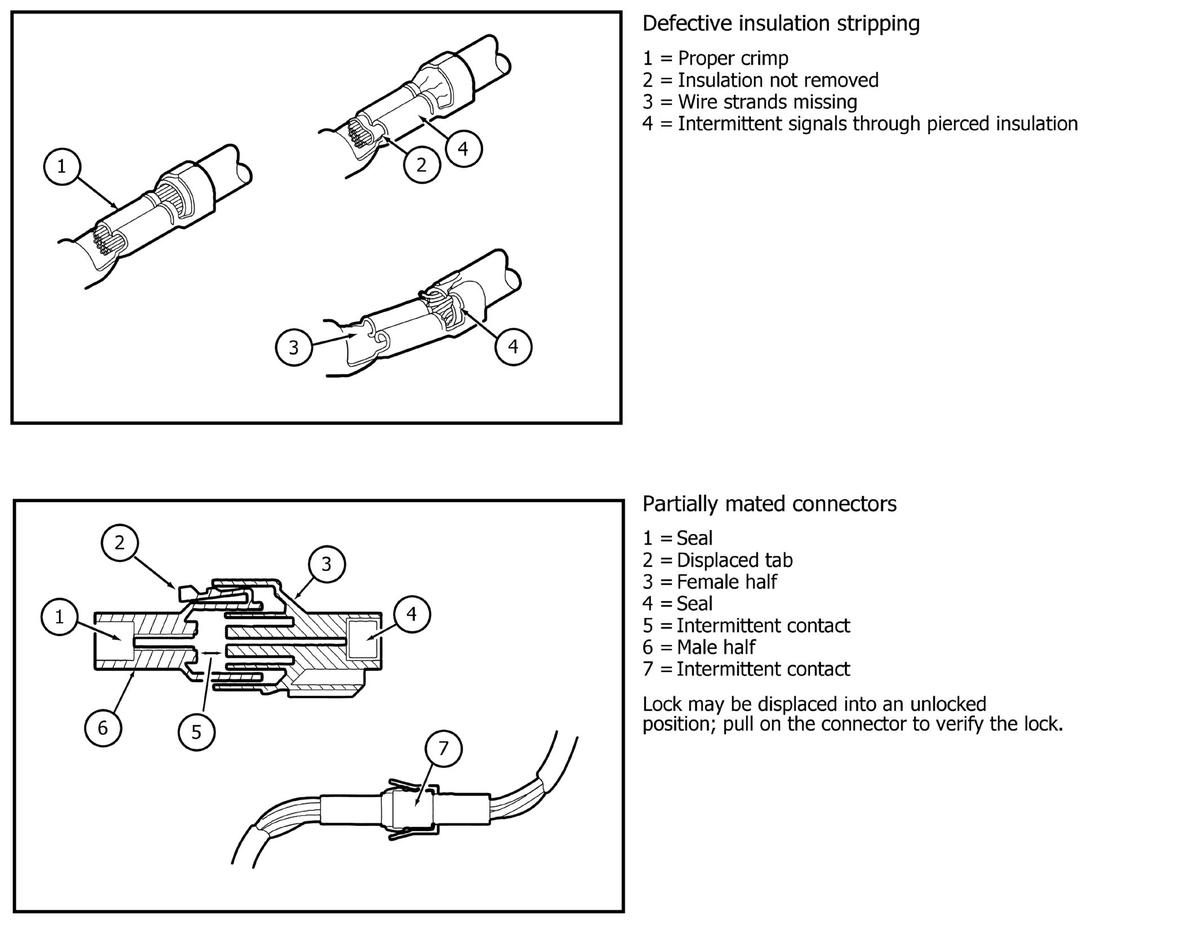

GFDWR45121Courtesy of FORD MOTOR COMPANY

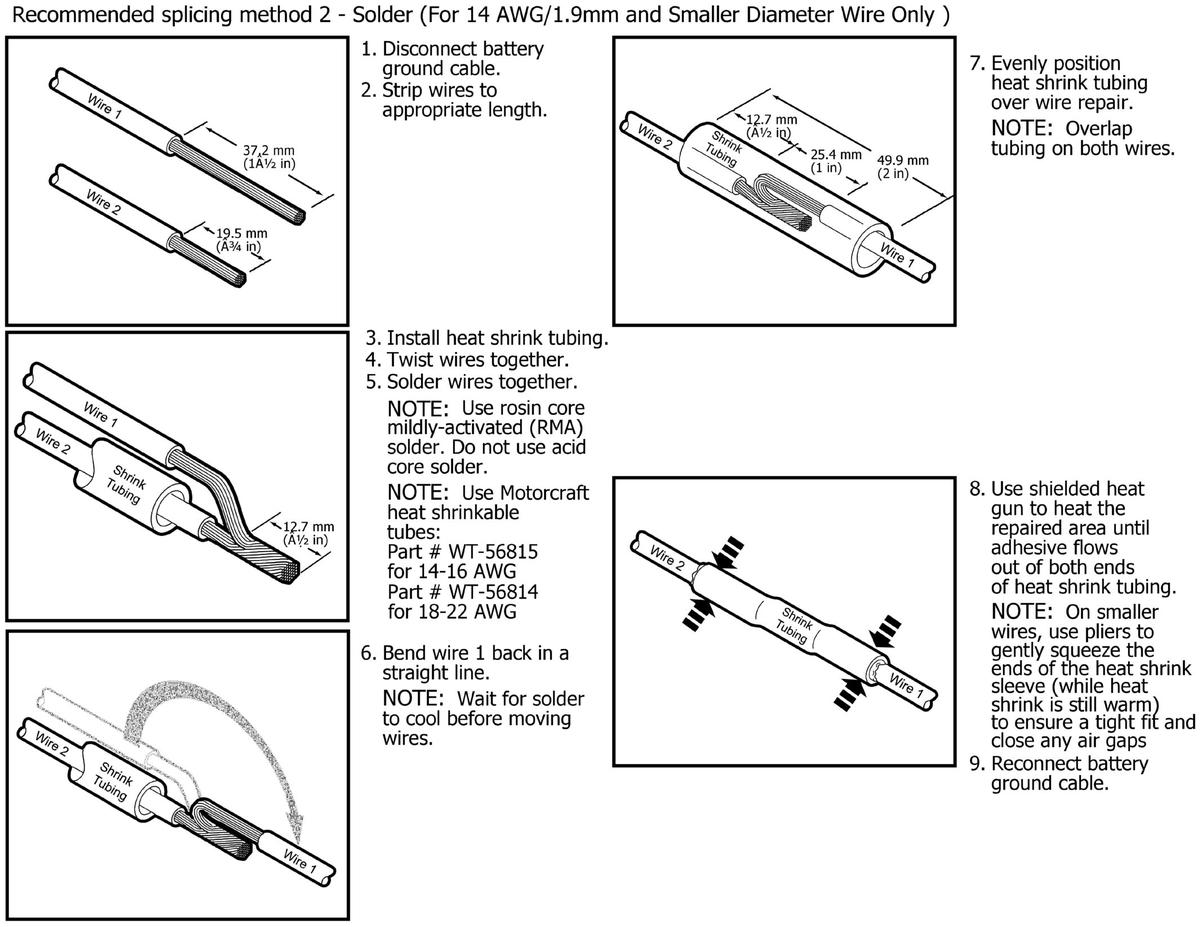

GFDWR45122Courtesy of FORD MOTOR COMPANY

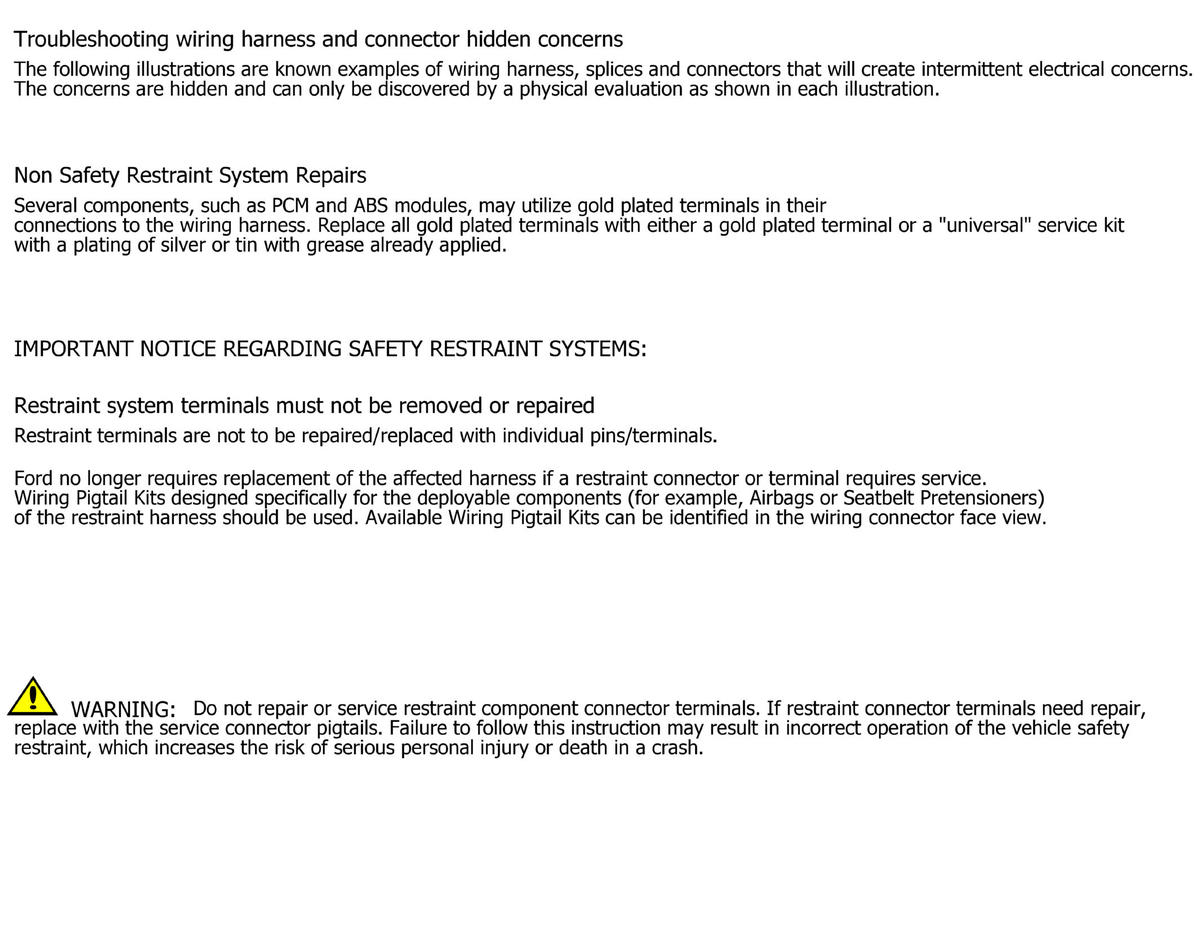

GFDWR45123Courtesy of FORD MOTOR COMPANY

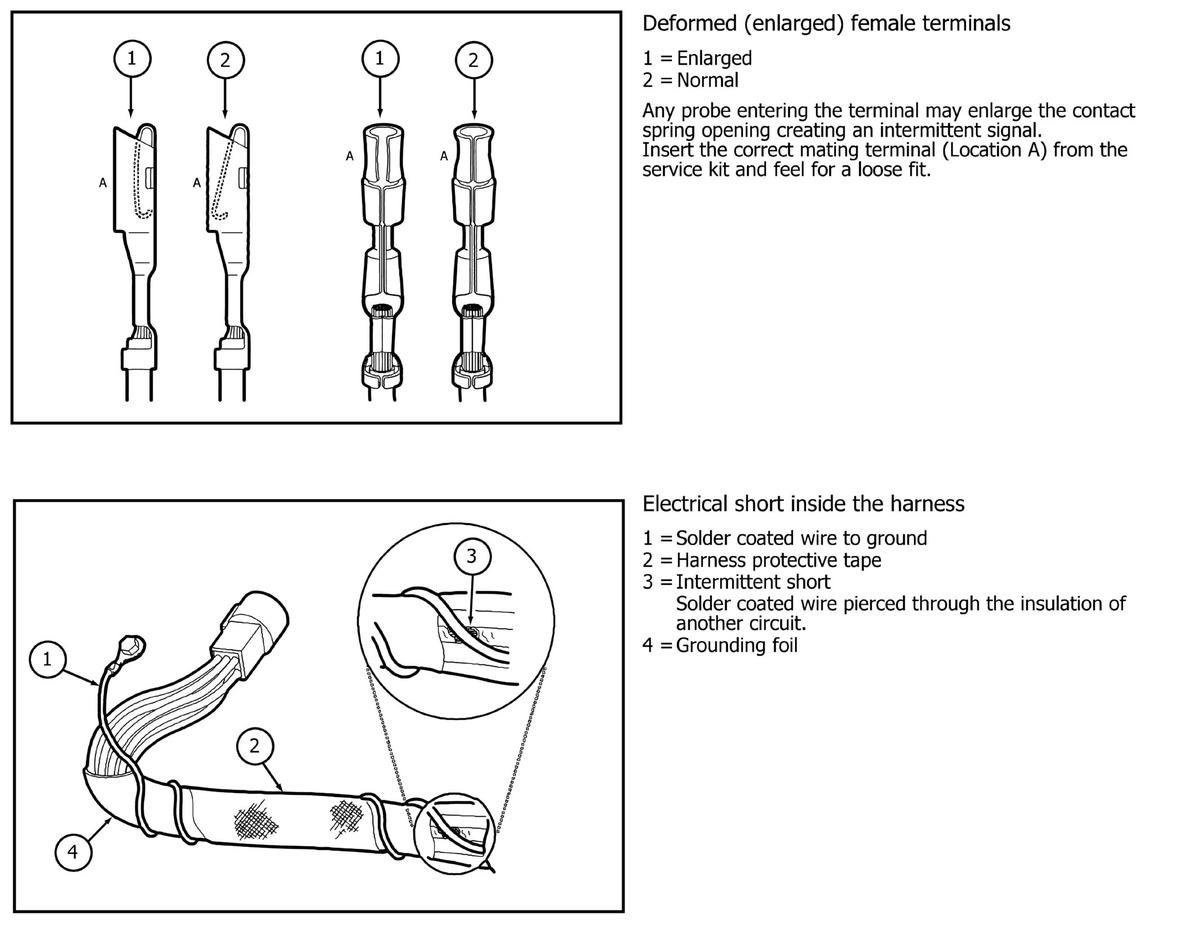

GFDWR45124Courtesy of FORD MOTOR COMPANY

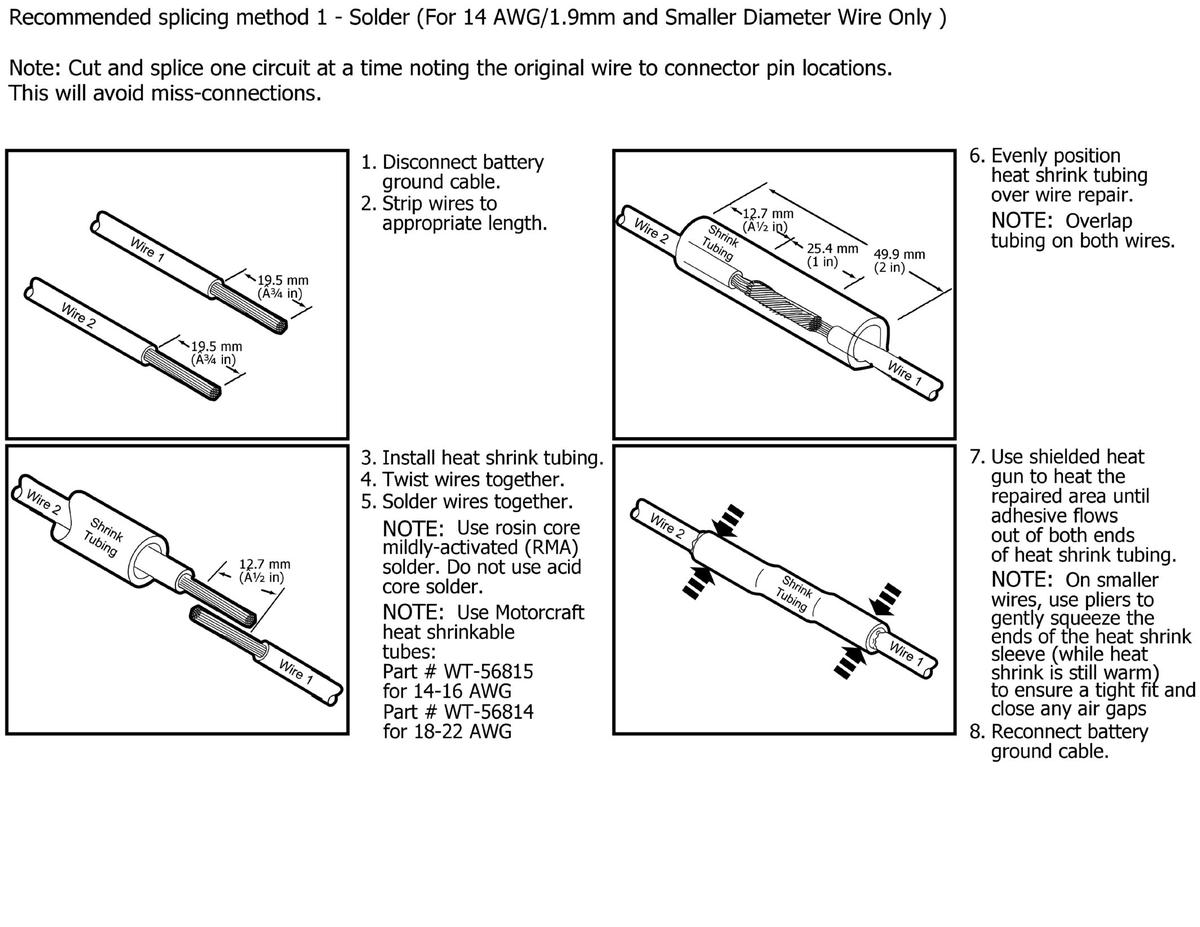

GFDWR45125Courtesy of FORD MOTOR COMPANY
