Liftgate Alignment

For information on Ford Color Coded Illustrations refer to OEM Wiring Diagrams

Inspection

1. Check liftgate-to-body dimensions. Refer to: Body and Frame .

Adjustment

All alignments

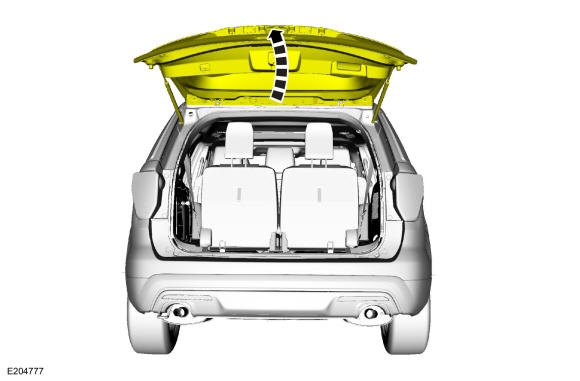

1. Open the liftgate.

   Courtesy of FORD MOTOR COMPANY

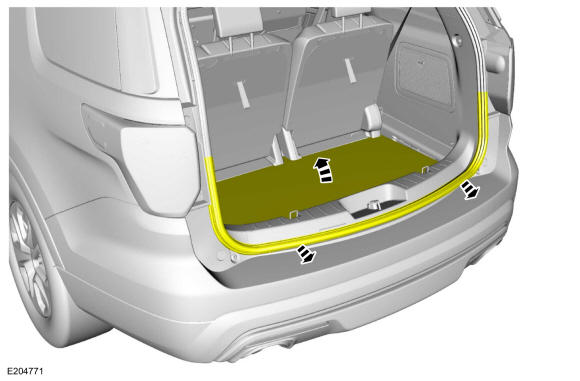

2. Position aside the liftgate weatherstrip and the load compartment cover.

   Courtesy of FORD MOTOR COMPANY

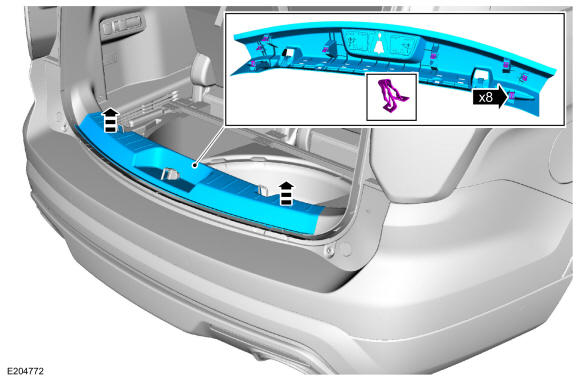

3. Release the clips and remove the liftgate opening trim panel.

   Courtesy of FORD MOTOR COMPANY

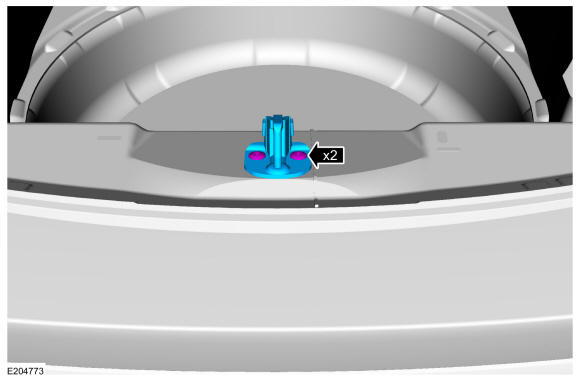

4. Remove the liftgate striker.

   Torque: 17 lb.ft (22.5 Nm)

   Courtesy of FORD MOTOR COMPANY

   Liftgate left and right, up and down alignment

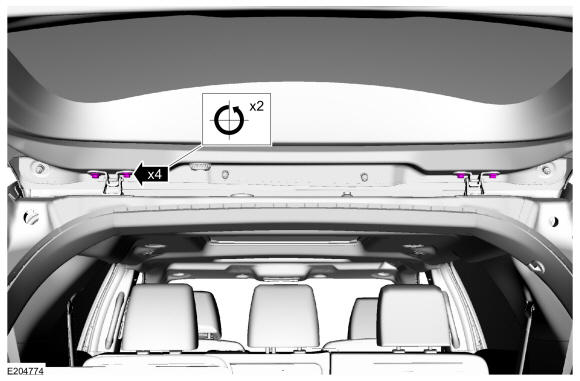

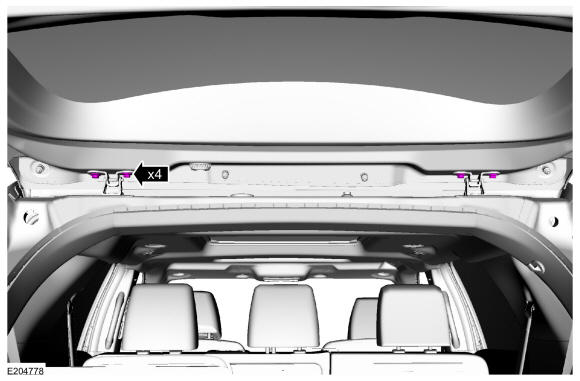

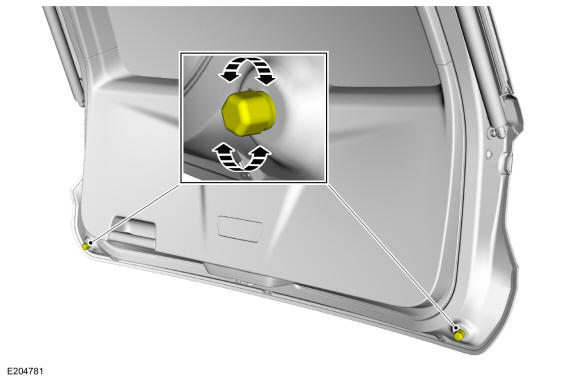

5. Loosen the bolts. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

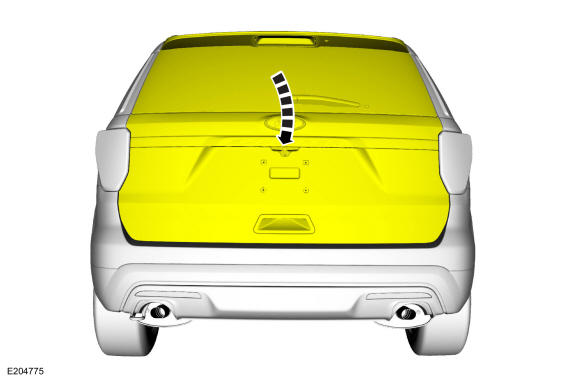

6. Carefully close the liftgate.

   Courtesy of FORD MOTOR COMPANY

7. Adjust the liftgate to specification. Refer to: Body and Frame .

   Courtesy of FORD MOTOR COMPANY

8. Carefully open the liftgate.

   Courtesy of FORD MOTOR COMPANY

9. Tighten the bolts.

   Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

   Liftgate in and out alignment

10. Remove the D-Pillar trim panel. Refer to: D-Pillar Trim Panel .

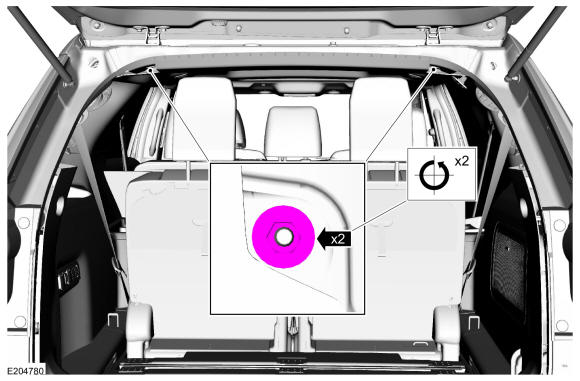

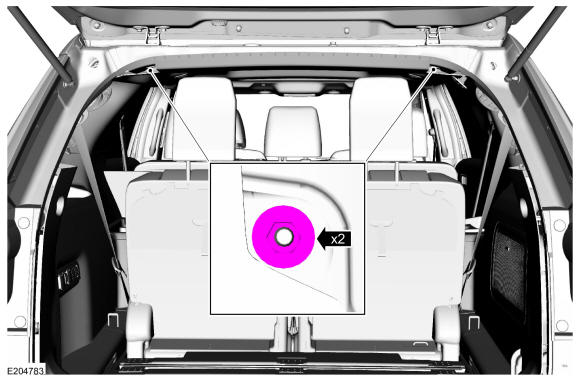

11. Loosen the nuts. Loosen: : 2 turn(s)

    Courtesy of FORD MOTOR COMPANY

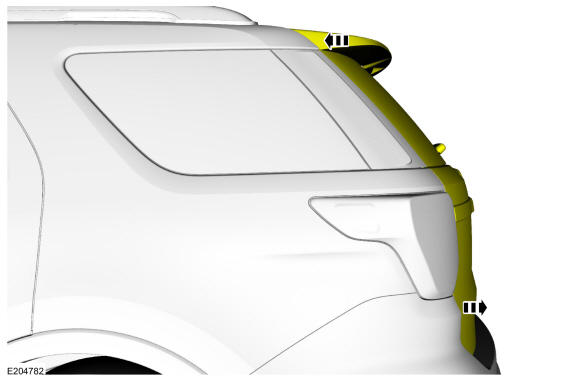

12. Adjust the stops.

    Courtesy of FORD MOTOR COMPANY

13. Carefully close the liftgate.

    Courtesy of FORD MOTOR COMPANY

14. Adjust the liftgate to specification. Refer to: Body and Frame .

    Courtesy of FORD MOTOR COMPANY

15. Carefully open the liftgate.

    Courtesy of FORD MOTOR COMPANY

16. Tighten the nuts.

    Torque: 41 lb.ft (55 Nm)

    Courtesy of FORD MOTOR COMPANY

    All alignments

17. Inspect the body-to-liftgate door dimensions. Refer to: Body and Frame .

    Courtesy of FORD MOTOR COMPANY

18. Install the position aside and removed components.
19. If equipped with power liftgate, carry out the power liftgate initialization. Refer to: Power Liftgate Initialization .
